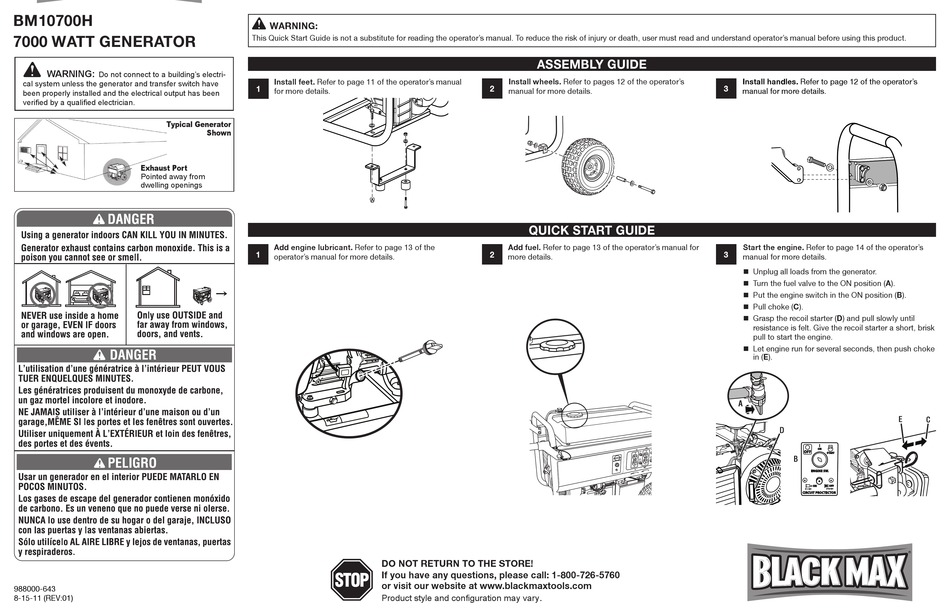

Black Max BM10700H Quick Start Manual

BM10700H
7000 WATT GENERATOR
WARNING:
Do not connect to a building's electri-
cal system unless the generator and transfer switch have
been properly installed and the electrical output has been
verified by a qualified electrician.
Typical Generator
Exhaust Port
Pointed away from
dwelling openings
988000-643
8-15-11 (REV:01)
WARNING:
This Quick Start Guide is not a substitute for reading the operator's manual. To reduce the risk of injury or death, user must read and understand operator's manual before using this product.
Install feet. Refer to page 11 of the operator's manual
1
for more details.
Shown
Add engine lubricant. Refer to page 13 of the
1 1
operator's manual for more details.
DO NOT RETURN TO THE STORE!
If you have any questions, please call: 1-800-726-5760
or visit our website at www.blackmaxtools.com
Product style and configuration may vary
ASSEMBLY GUIDE
Install wheels. Refer to pages 12 of the operator's
2
manual for more details.
QUICK START GUIDE
Add fuel. Refer to page 13 of the operator's manual for
2
more details.
.
Install handles. Refer to page 12 of the operator's
3
manual for more details.
Start the engine. Refer to page 14 of the operator's
3
manual for more details.
 Unplug all loads from the generator.
 Turn the fuel valve to the ON position (A).
 Put the engine switch in the ON position (B).
 Pull choke (C).
 Grasp the recoil starter (D) and pull slowly until
resistance is felt. Give the recoil starter a short, brisk
pull to start the engine.
 Let engine run for several seconds, then push choke
in (E).
A
E
D
ON
OFF
START
B
ENGINE SW.
OFF
ON
CIRCUIT PROCTECTOR
C
R
