ARMAND BED
Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
Phillips Head Screw Driver
Do not throw away packing materials and carton until after assembly.
Assemble all parts on a clean smooth surface
The assembly of this item requires x 2 people.
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight. Do not place over heat or Air conditioning vents.
Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.

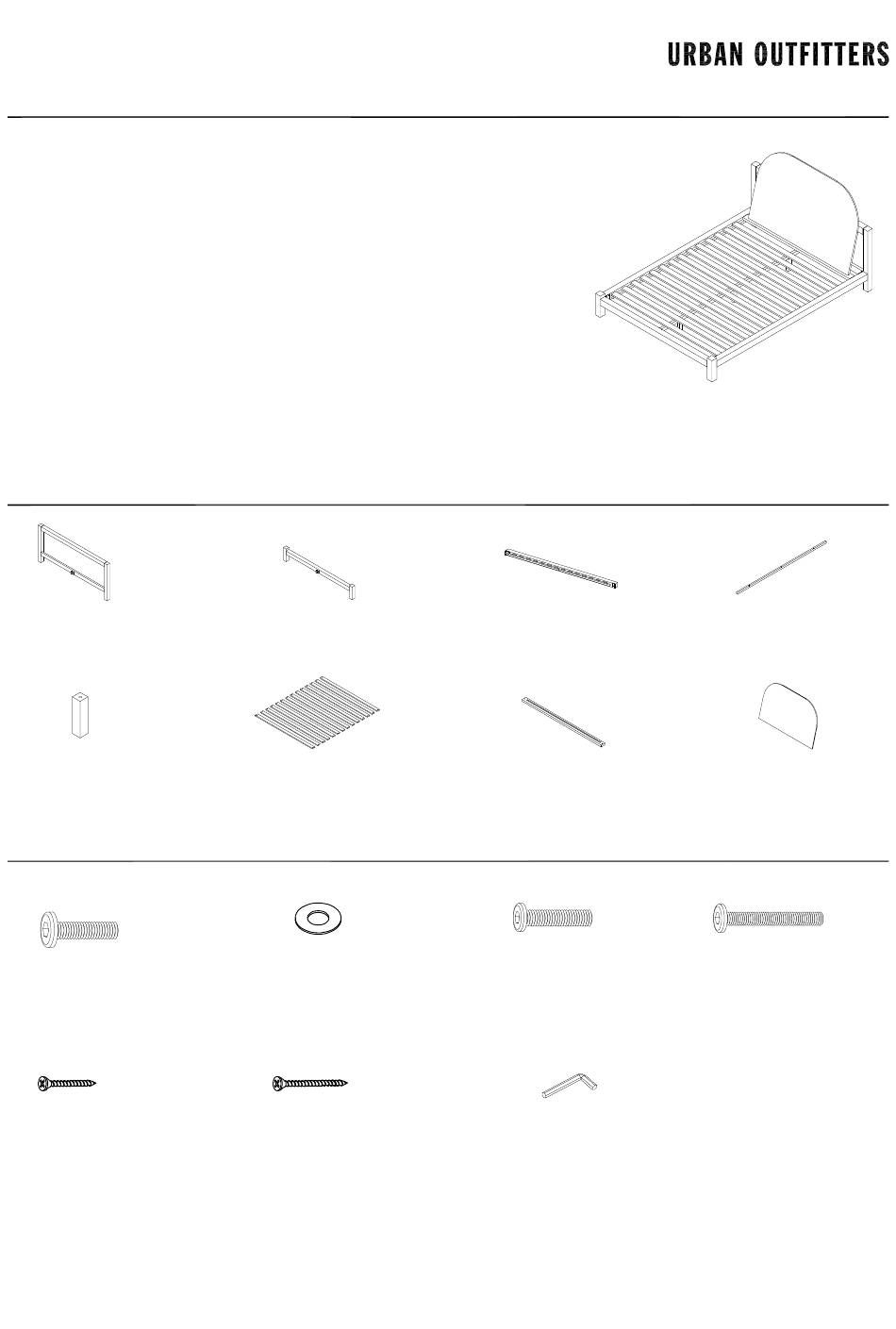

PARTS INCLUDED
(A) Headboard
Quantity: 1pc
(E) Support legs
Quantity: 3pcs
HARDWARE LIST
(1) Bolt
M8 x 20mm
Quantity: 8pcs
(5) Screw
M4 x 25mm
Quantity: 28pcs
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.
© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
(B) Foot-board
Quantity: 1pc
(F) Slats
Quantity: 14pcs
(2) Flat Washers
M8
Quantity: 12pcs
(6) Screw
M4 x 40mm
Quantity: 2pcs
(C) Side rails
Quantity: 2pcs
(G) Upper post slats
Quantity: 1pc
(3) Bolt
M8 x 30mm
Quantity: 6pcs
(7) Allen key
Quantity: 1pcs
(D) Middle rail
Quantity: 1pc
(H) Headboard panel
Quantity: 1pc
(4) Bolt
M8 x 50mm
Quantity: 3pcs
