Zoom Out tool

The Zoom Out tool reduces your view of the preview image, allowing you to set the
scan frame with greater precision. Only the view size of the preview image is
changed; the actual output size of the image remains the same. The reduction levels
decrease from 400%, 300%, 200%, to 100%.

Create Subframe tool

The Create Subframe tool lets you create a new frame within the main frame. This
feature allows you to create as many frames as you wish, and each frame can then
have its own settings. With the creation of a new frame, the new frame becomes the
current selected frame.
When a new frame is created, it is best to specify different image types that
differentiate the main frame from the subframe. For example, when the main frame
image type is Photo, it is recommended that you set the subframe image type to Text
or Line Art.
To use the Create Subframe tool button,
1. Click the Preview button to see a
preliminary view of the image.
2. Click the Create Subframe tool
button; the cursor becomes a plus
(+) symbol. At this time you can
draw a new frame in the scan frame.
When a new frame is generated, you
will see that the new added frame is
selected and enclosed in red dotted
lines.
3. Specify the frame settings for the
new added frame.

Delete Subframe tool

The Delete Subframe tool lets you remove a subframe that you previously created.
To use the Delete Subframe tool button:
1. Select the subframe to be removed in the preview window or in the Frame
Information window.
2. Click the Delete Subframe tool button. The subframe you selected is deleted.
15

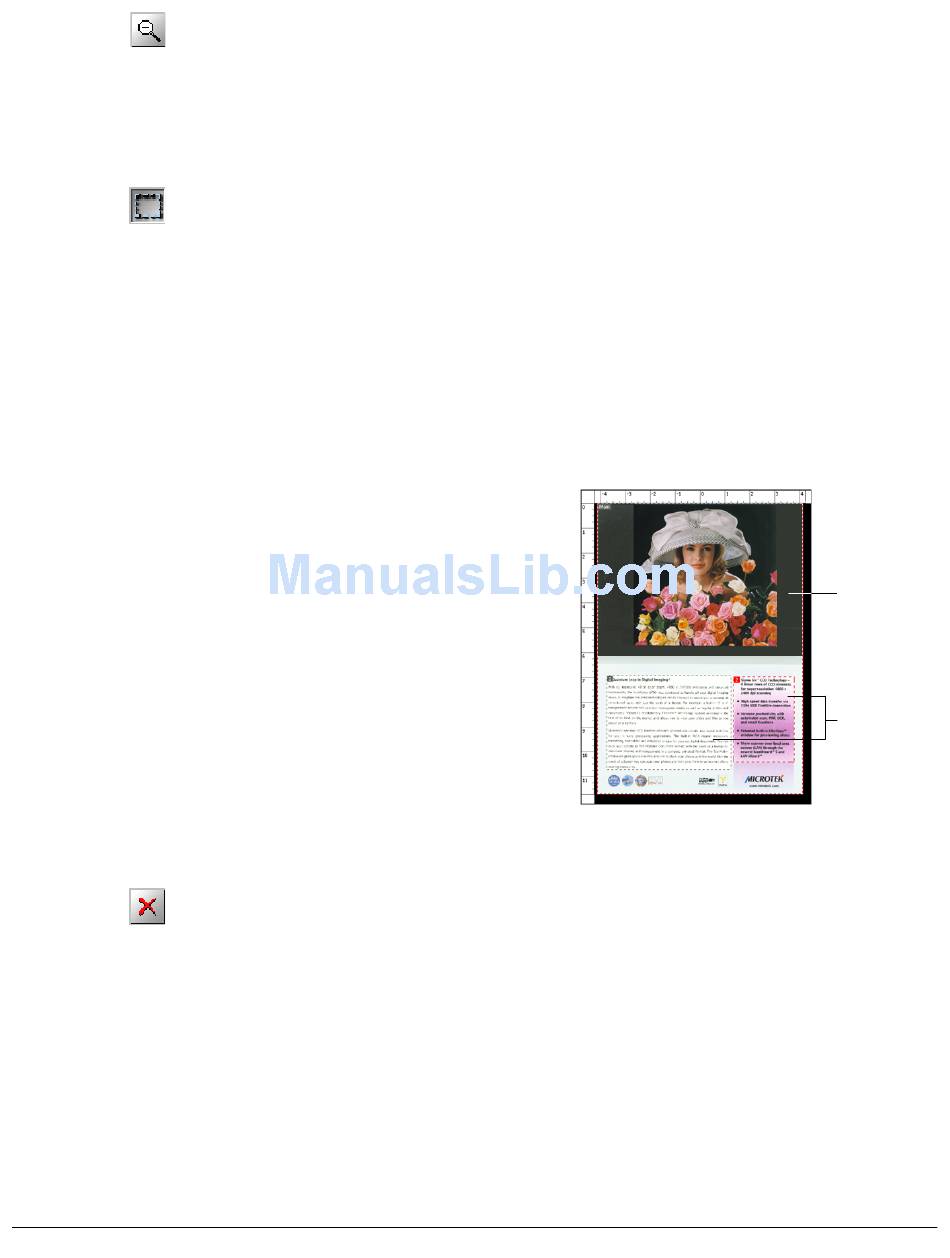

Main frame
Two added
subframes
