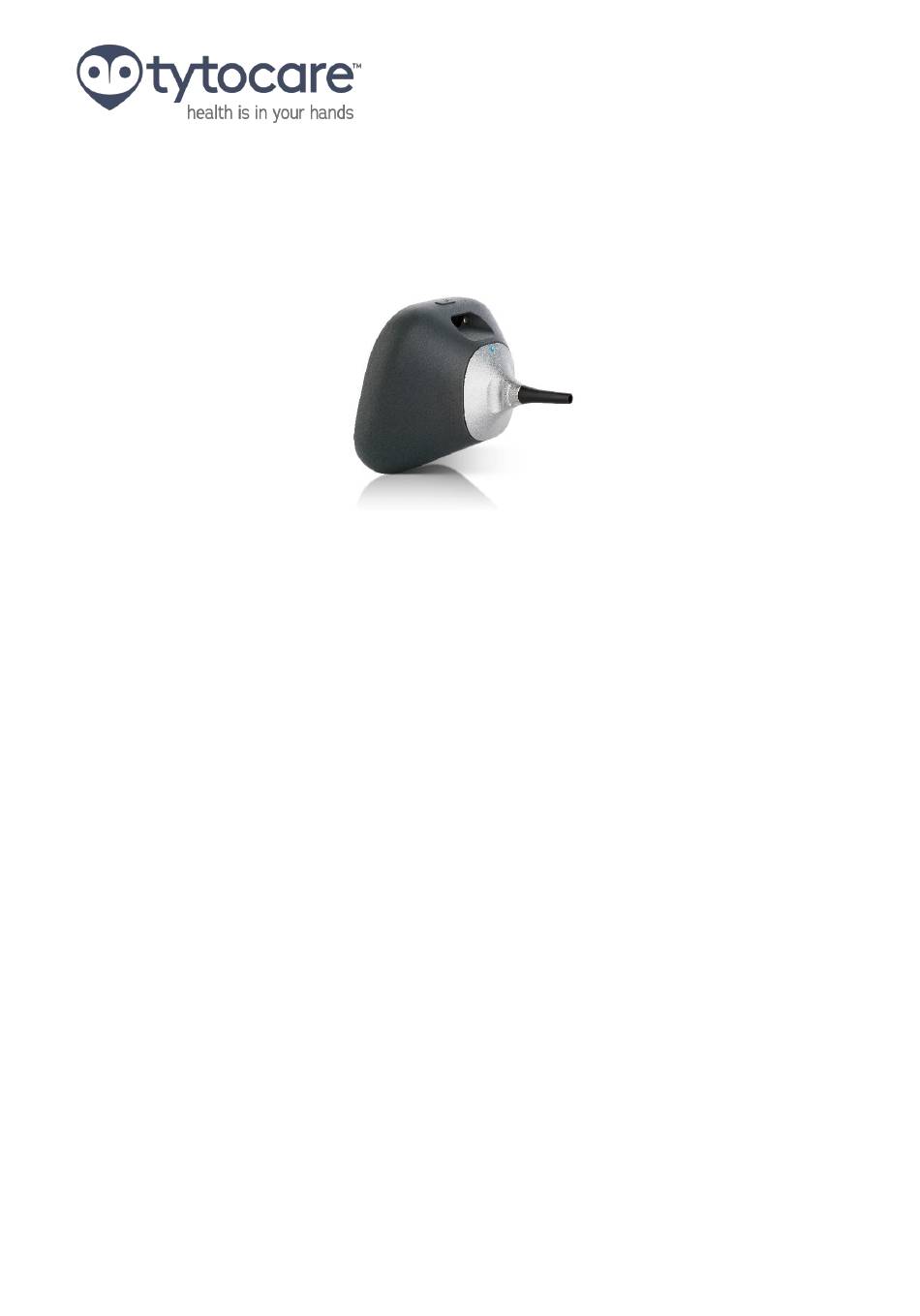

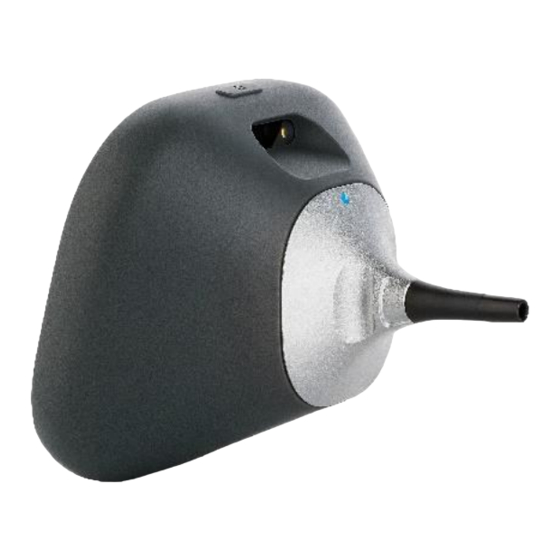

- Page 1 Tyto Otoscope TytoHome For Ears Exam User Guide Version 3.0 760-00048 A04 Document Number...
- Page 2 • The device has been used for its indicated use and according to the operating instructions in this User Guide. • All fittings, extensions, readjustments, changes, or repairs have been carried out by a TytoCare authorized representative. Tyto support may be contacted at +1-866-971-TYTO, support@tytocare.com Distributed by: TytoCare Inc.
- Page 3 Notes: A note provides other important information. Disclaimer Information provided by TytoCare is believed to be accurate and reliable. However, TytoCare assumes no responsibility for the use of such information, nor for any infringements of patents or other rights of third parties, that may result from its use.
- Page 4 Tyto Otoscope User Guide 2.2. Connect Otoscope Tip and Disposable Speculum Before you start using the device, it is important to connect the otoscope tip correctly. Connect the otoscope to the Tyto device using the blue dot guiding marks: Tyto Device Otoscope Tip Otoscope Tip and Tyto Device connected After connecting the otoscope tip, place a disposable speculum on the tip and lock it in...
- Page 5 TytoCare App screen. Every time you perform an ear exam, a short animation displays, reminding you of the key considerations that should be taken into account during the ear examination. As only the video tutorial has the detailed instructions, it is recommended to always watch the tutorial before use.
- Page 6 Tyto Otoscope User Guide 4.5. Guidelines for Recording The video must be recorded continuously, from before the otoscope enters the ear canal, until after it is withdrawn. DO NOT start or stop the exam when the otoscope tip is inside the ear. Observe the video carefully.
- Page 7 Tyto Otoscope User Guide 4.7. Stop Recording Press Stop on the device after the tip is completely removed from the ear canal, and the desired video of the eardrum has been captured. The Device will display a confirmation message. Press STOP to stop recording Confirmation the video was recorded Note: After 45 seconds the video recording stops automatically, to prevent unduly long video recording and subsequent over heating of the otoscope.
- Page 8 Tyto Otoscope User Guide Press Right Ear (in this example) on the Device to record the next ear. 4.9. Review the Ears Screen From the Device screen, press the back arrow to see the Ears screen: In this example, the green background and check mark next to RIGHT EAR indicates that at least one recording was made for the right ear.
