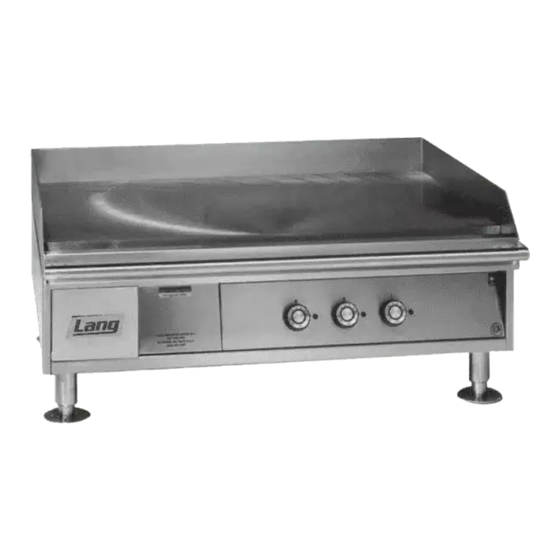

- Page 1 Installation, Operation, and Maintenance, & Troubleshooting Electric Marine & Cruise Line Griddle Model: CLG36F CLG36THE CLG48F CLG48THE Lang Manufacturing 10 Sunnen Drive St. Louis, MO 63143 Part Number: 2M-W362 Phone: 314-678-6315 Fax: 314-781-2714 Rev. B www.langworld.com July 25, 2012...
- Page 2 THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER PAGE 1. TABLE OF CONTENTS ................3 2. READ FIRST ....................4 3. UNPACKING ....................6 4. INSTALLATION ................... 7 5. INITIAL START-UP..................9 6. OPERATION ....................10 7. MAINTENANCE & CLEANING PROCEDURES ........11 8. TROUBLESHOOTING ................. 12 9. -
Page 4: Read First
IMPORTANT READ FIRST IMPORTANT CAUTION: GRIDDLE IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION. - Page 5 WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your LANG authorized service agent directory or call the factory at 314-678-6315, or www.langworld.com for the...
-
Page 6: Unpacking
UNPACKING 3.1 Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier's agent. Concealed loss or damage means loss or damage which does not become apparent until the merchandise has been unpacked. -
Page 7: Installation
INSTALLATION DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED. FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION AND DEATH. WARNING: INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. -
Page 9: Initial Start-Up
INITIAL START UP 5.1 Initial Start Up Before starting the griddle for the first time, clean the griddle body and cooking surface with a mild soap and water solution then rinse with clear water and dry. Set the main power switch, located at the far left of the control panel, to the "ON" (up) position (there are 2 "ON"... -
Page 10: Operation
OPERATION CAUTION: ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM COMBUSTIBLE MATERIALS. CAUTION: KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR FALLS. 6.1 Setting the Temperature If different temperature settings across the same griddle are to be used, select one side of the griddle and run that at the lowest temperature. -
Page 11: Maintenance & Cleaning Procedures
MAINTENANCE & CLEANING 7.1 Daily Cleaning WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC. CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. -
Page 12: Troubleshooting
TROUBLESHOOTING 9.1 Symptoms What follows is a chart of Symptoms and Possible Causes to aid in diagnosing faults with the oven. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible cause, refer to the TEST section and locate the Possible Cause then refer to test to identify test procedures. - Page 13 TROUBLESHOOTING CONT’D 9.2 TESTS NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your LANG authorized service agent directory or call the factory at 314-678-6315 or www.langworld.com For the service agent nearest you.
-
Page 14: Parts Lists
PARTS LIST July 25, 2012, Rev. B CLG36F, CLG36THE Electric Marine & Cruise Line Griddle Part No. Description Application 2A-72500-05 LEG 4 W/BOLT DOWN ADJ 2D-73800-01 WATER PAN 1/3 HOTEL 2E-30500-11 TRM BLOCK 2 PLE LG 175AMP 2F-50404-07-1 LG PLT 1X35 7/8X22 15/16... - Page 16 THIS WARRANTY. II. Damage during shipment is to be reported to the VII. Lang Equipment is for cruise line use only. If carrier, is not covered under this warranty, and is the sold as a component of another (OEM) sole responsibility of purchaser/user.
