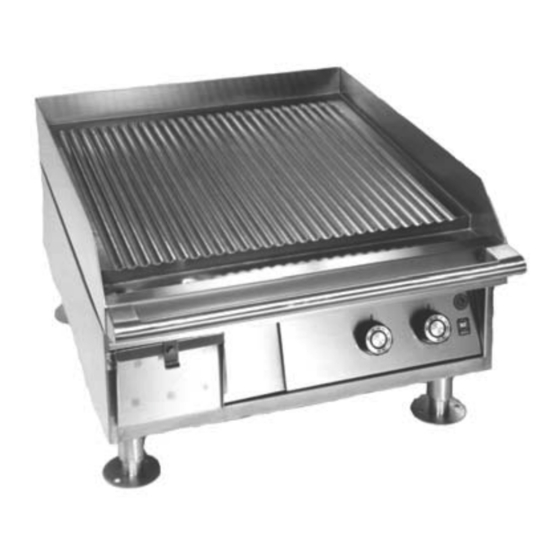

Summary of Contents for Lang CLG-36A-S

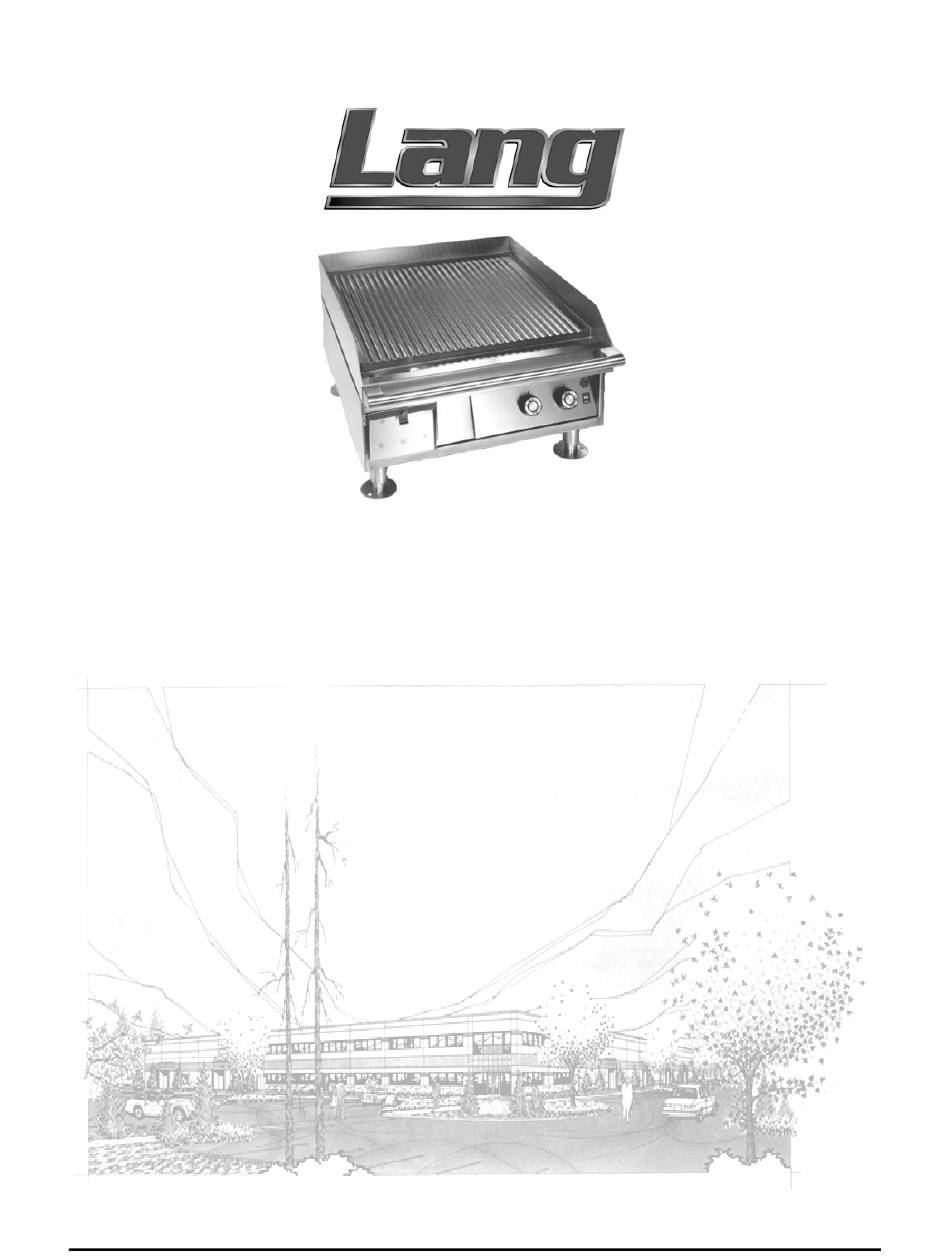

- Page 1 Installation, Operation, Maintenance, & Troubleshooting Model: CLG-36A-S Electric Cruise Line Grooved Griddle Serial: Lang Manufacturing Company 6500 Merrill Creek Parkway Everett, WA 98203 Phone: 425-349-2400 Fax: 425-349-2733 WWW.LANGWORLD.COM © Copyright 2000...
- Page 2 THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER PAGE TABLE OF CONTENTS................3 READ FIRST....................4 UNPACKING ....................6 INSTALLATION....................7 INITIAL START-UP ..................8 OPERATION ....................9 CLEANING ....................10 TROUBLESHOOTING..................11 PARTS LIST....................13 10. EXPLODED VIEWS ..................14 11. WIRING DIAGRAM..................18 12. WARRANTY....................19... -
Page 4: Read First
IMPORTANT READ FIRST IMPORTANT CAUTION: GRIDDLE WEIGHS 405 lbs (183.71 kg). FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION. - Page 5 WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM...
-
Page 6: Unpacking
15 days of delivery. All packing material should be kept for inspection. Do not return damaged merchandise to Lang Manufacturing Company. File your claim with the carrier. -
Page 7: Installation
Use a supply wire suitable for at least 90° C. 4.2 Griddle Voltage The model CLG-36A-S griddle is shipped from the factory wired for 440 volts. 4.3 Phasing All griddles are shipped from the factory set up for a three phase service. -
Page 8: Initial Start-Up
INITIAL START UP 5.1 Initial Start Up Before starting the griddle for the first time, clean the griddle body and cooking surface with a mild soap and water solution then rinse with clear water and dry. Set the main power switch, located at the far left of the control panel, to the "ON" (up) position. -
Page 9: Operation
OPERATION CAUTION: ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM COMBUSTIBLE MATERIALS. CAUTION: KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR FALLS. 6.1 Setting the Temperature If different temperature settings across the same griddle are to be used, select one side of the griddle and run that at the lowest temperature. -
Page 10: Cleaning
CLEANING WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC. CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. -
Page 11: Troubleshooting
TROUBLESHOOTING 9.1 Symptoms What follows is a chart of Symptoms and Possible Causes to aid in diagnosing faults with the oven. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible cause, refer to the TEST section and locate the Possible Cause then refer to test to identify test procedures. - Page 12 TROUBLESHOOTING CONT’D 9.2 TESTS NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM For the service station nearest you.
-
Page 13: Parts List
PARTS LIST Part Item # Description Number Griddle Plate 3 Foot Grooved LGCL-723-4 Grease Drawer Slide Assembly See Page 17 Control Box See Page 16 Griddle Body Access Panel LGCL-422 Leg, 4” with Round Adjustable Toe 72500-12 Supply Wire Baffle LGCL-227 Screw Stainless Steel 10-32 x 1/2”... -
Page 14: Exploded Views
EXPLODED VIEW... - Page 15 EXPLODED VIEW CONT’D...
- Page 16 EXPLODED VIEW CONT’D...
- Page 17 EXPLODED VIEW CONT’D...
-
Page 18: Wiring Diagram
WIRING DIAGRAM... -
Page 19: Warranty
THIS WARRANTY. II. Damage during shipment is to be reported to the VII. Lang Equipment is for cruise line use only. If carrier, is not covered under this warranty, and is the sold as a component of another (OEM) sole responsibility of purchaser/user.
