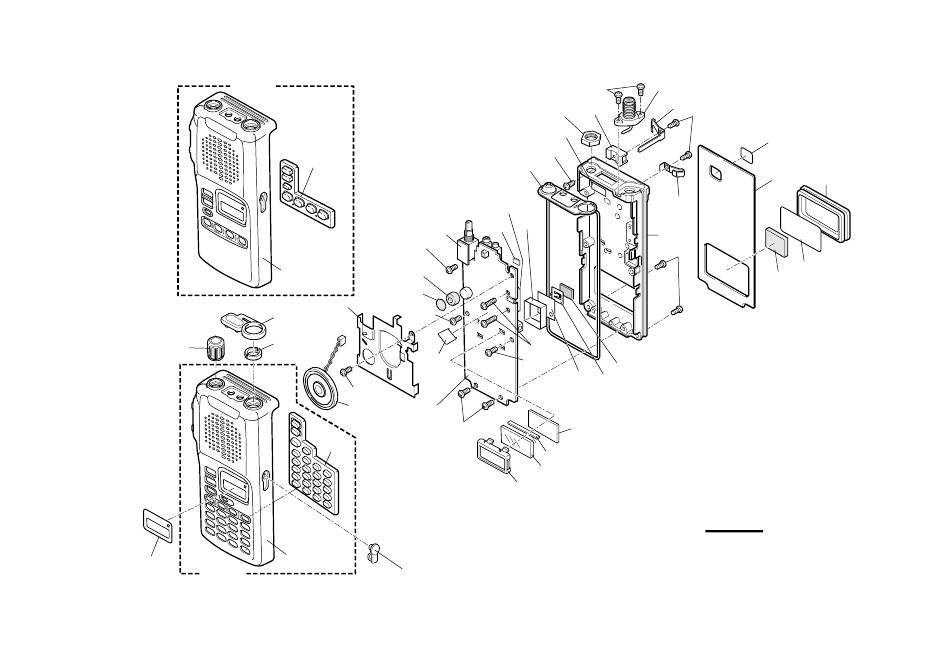

7 keys
MP6 (C)
MP2 (C)
MP37 (C)
MP7 (C)
MP24 (C)
MP5 (C)
MP2 (C)
MP17 (C)
24 keys
7 - 2
MP4 (M)
MP10 (M)
VR BOARD
MP27 (C)
MP38 (C)
MP21 (C)
MP27 (C)
MP7 (M)
MP27 (C)
SP1 (M)
MAIN UNIT
MP27 (C)
MP6 (C)
MP11 (C)
MP36 (C)
MP26 (C)
MP12 (C)
MP25 (C)
MP4 (C)
MP40 (C)
MP28 (C)
MP9 (C)
MP13 (C)
MP1 (M)
MP1 (C)
MP31 (C)
MP30 (C)
MP27 (C)
MP8 (M)
MP6 (M)
MP9 (M)
MP3 (M)
EP2 (M)
DS1 (M)
MP2 (M)
Note
MP29 (C)
MP34 (C)
MP19 (C)
MP10 (C)
MP22 (C)
MP39 (C)
(M): MAIN UNIT
(C): CHASSIS
