Icom IC-F4TR Service Manual page 17

SECTION 7
7-1 CABINET PARTS
[CHASSIS PARTS]
REF ORDER
NO. NO.
MP1 8010016822 1922 chassis-2
MP2 8210014731 1922 front panel (B) assembly [24 keys]
8210015161 2066 front panel (A) assembly [7 keys]
MP4 8210014330 1922 contact base
MP5 8610010420 Knob N-261
MP6 8930051540 1922 10-key (B)
8930043970 2065 7-key
MP7 8930042070 1922 MIC cap
MP9 8930042030 1922 main seal
MP10 8110006050 1922 OPT cover
MP11 8930042050 1922 DC cap
MP12 8930042090 1922 plus terminal
MP13 8930042080 1922 minus terminal
MP17 8310048520 1922 window plate (I)
MP19 8930051530 1922 rear sheet (AV)
MP21 8930042350 1922 MIC sheet
MP22 8930042560 1922 OPT sheet
MP24 8830001250 Nut ANT connector-101
MP25 8830001010 Hex nut (A)
Screw PH M2 × 4 ZK
MP26 8810000100
Screw B0 2 × 4 NI-ZU (BT)
MP27 8810009510
Screw PH B0 2 × 4 NI-ZU (BT)
MP28 8810009510
Screw PH B0 2 × 4 NI-ZU (BT)
MP29 8810009510
Screw PH B0 2 × 6 ZK (BT)
MP30 8810009560
Screw PH B0 2 × 6 ZK (BT)
MP31 8810009560
MP34 8930043210 1922 A-rear sheet
MP36 8950004671 ANT connector-101A
MP37 8510011260 1923 shield cover
MP38 8930043760 1923 MIC seal
MP39 8930052330 Sponge (GN)
MP40 8930043610 Isolating sheet (EZ)
Screw abbreviations: PH: Pan head B0: Self-tapping
NI : Nickel ZK: Black
[MAIN UNIT]
REF ORDER
NO. NO.
DS1 5030001640 LCD LM-1761B
SP1 2510000960 K036NA500-26A27
EP2 8930042590 LCD contact SRCN-1922-SP-N-W
MP1 8510011111 1922 VCO case-1
MP2 8930042060 1922 LCD holder
MP3 8210014380 1922 Reflector
MP4 8410002081 1922 PA heatsink-1
MP6 8510011180 1923 VCO cover
MP7 8510011230 1923 VCO shield
MP8 8930046590 Sponge (FO)
MP9 8510009971 1591 shield plate-1
MP10 8930038670 Ferrite sheet
MECHANICAL PARTS AND DISASSEMBLY
QTY.
DESCRIPTION
[24 keys]
[7 keys]
QTY.
DESCRIPTION

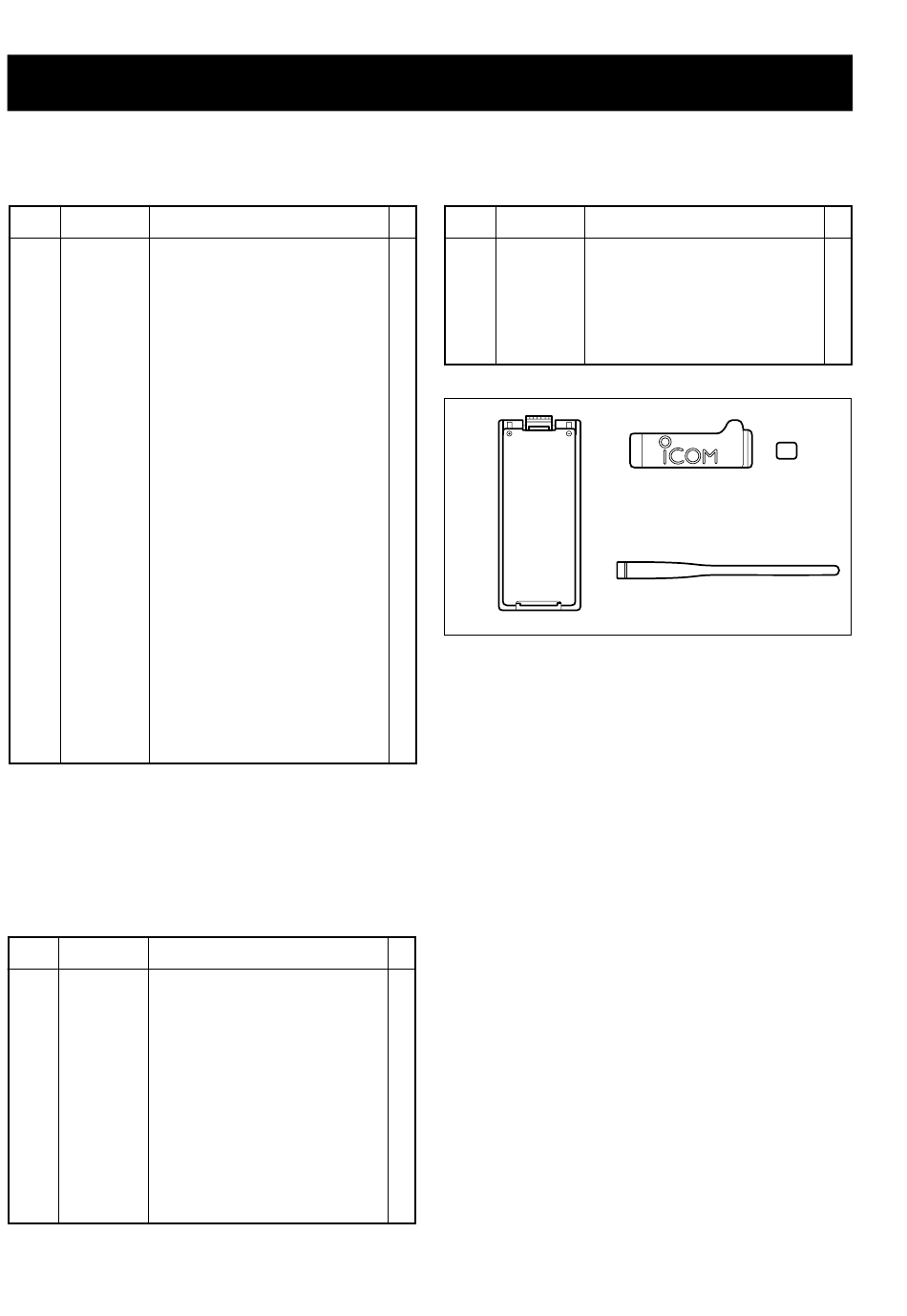

7-2 ACCESSORIES
REF ORDER
NO. NO.
1
EP1 Optional product Antenna FA-SC56U-2
1
1
EP2 Optional product Battery BP-196
1
1
MP1 Optional product 1922 belt clip
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
6
1
2
EP2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
7 - 1
DESCRIPTION
MP1 MP2
EP1
QTY.
1
1
1
