CHANGING THE NOZZLE

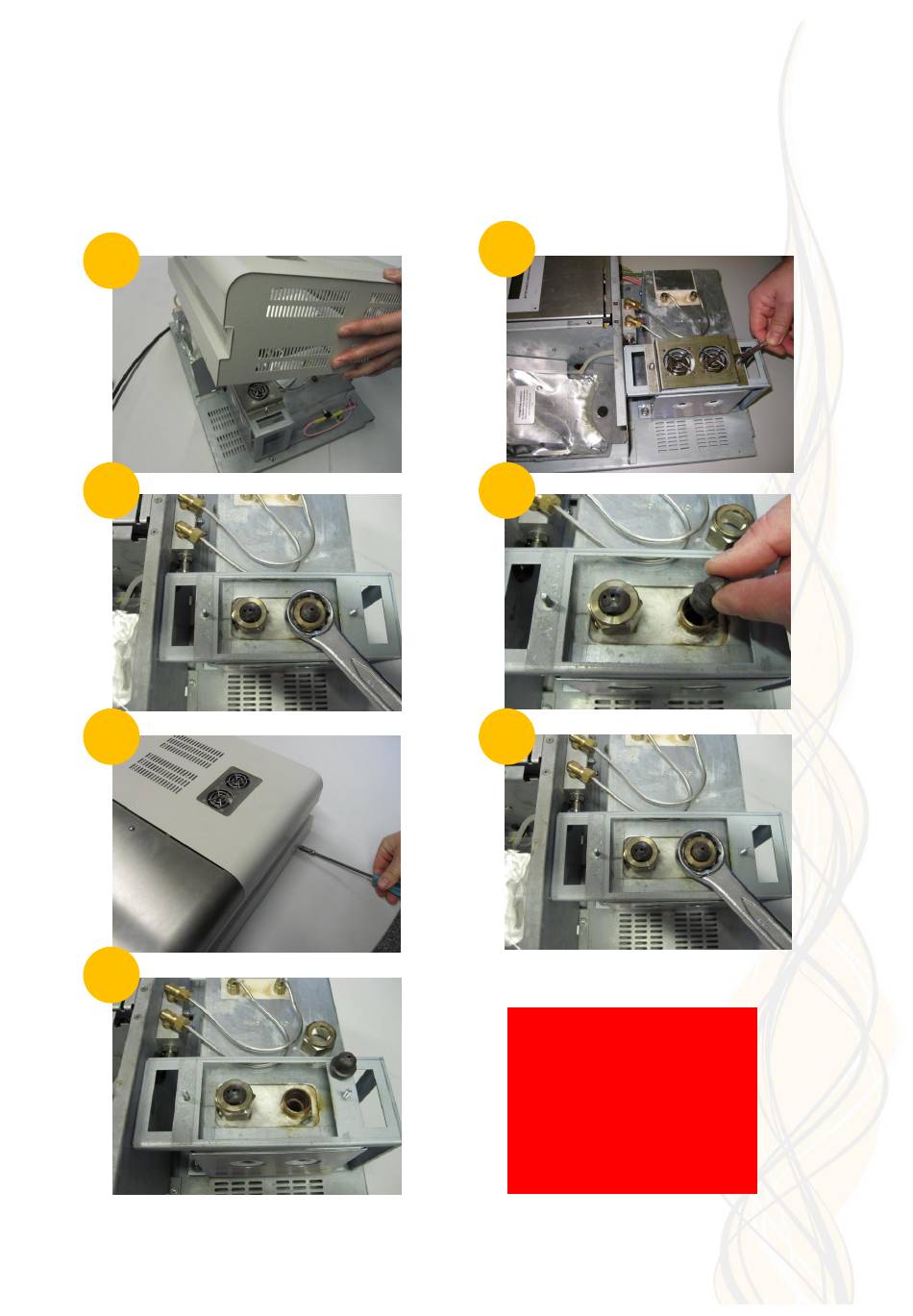

Remove the cover (1) using a Tamper Hand Driver No 2 – this is available from CSS. Remove the
nozzle guard (2). Unscrew the nozzle retaining nut (3). Remove the nozzle (4). Select the
appropriate nozzle (5). Replace the nozzle retaining nut, ensuring that the nozzle is set in the
required direction (6). Replace the nozzle guard and the outer casing (7).
1
3
5
7
2
4
6
NOTE
This operation is usually carried
out during installation. If the
Smoke Screen has been in
service the nozzle(s) will be
extremely hot and will cause injury
if touched. Therefore, the Smoke
Screen should be switched off
and time should be allowed for the
nozzle(s) to cool.
Page 9 of 20
