Wall mounting

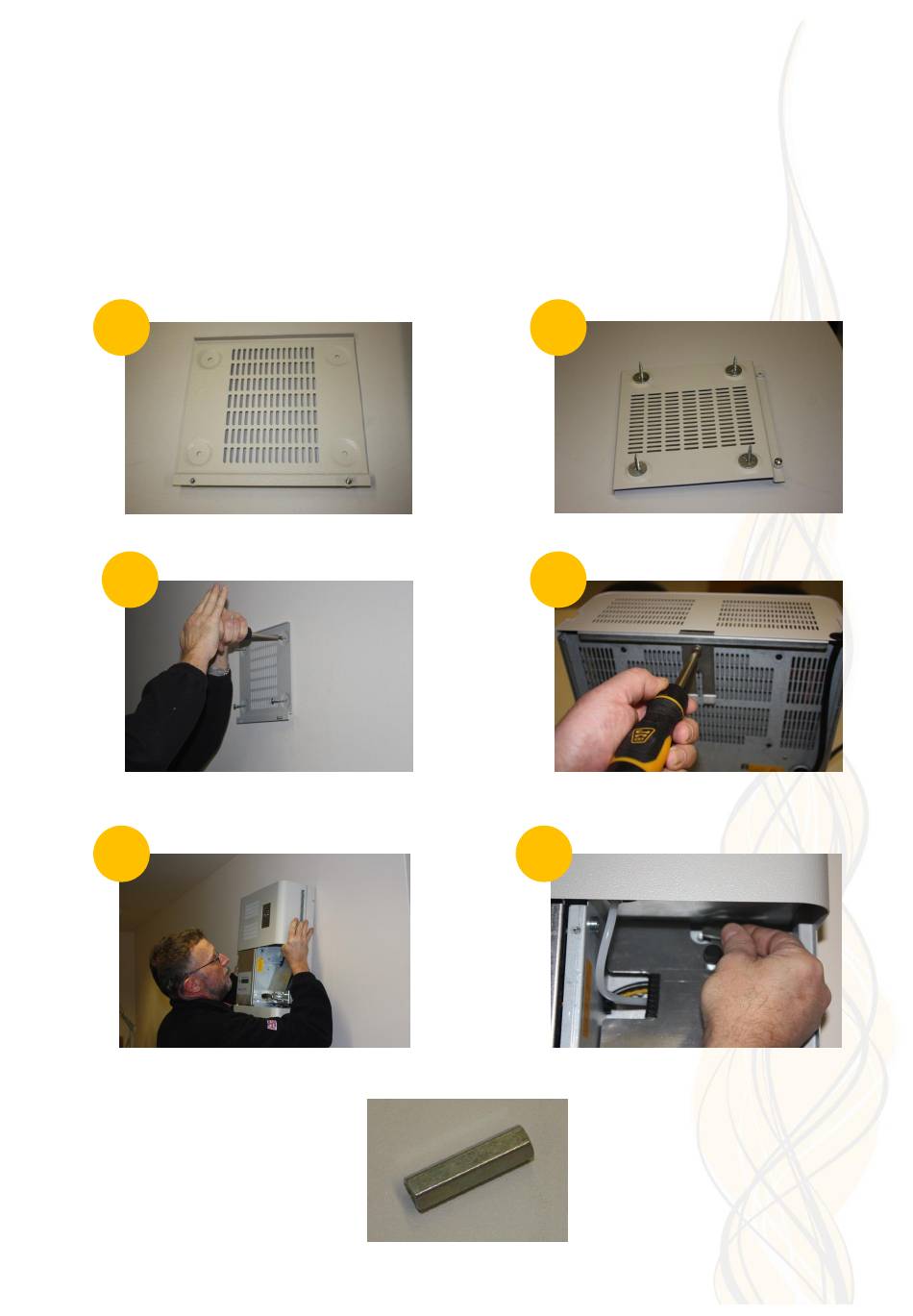

Wall mounting is achieved using a simple wall bracket (1). The bracket should be attached to a
suitable wall. Washers should be used to provide sufficient gap between the wall and the bracket
(2). Ensure the locking bolt is in place. Use appropriate fixings to secure the bracket to the wall.
We recommend as high a fixing as possible for aesthetic and security/anti-tamper reasons (3).
Now remove the Suspension Brackets from the shipping position on the back of the Smoke Screen
(4). These are not required for Wall Mounting. Carefully locate the Smoke Screen on the bracket
ensuring that the locking bolt lines up with the hole in the fluid compartment (5). Finally, screw on
the bracket locating nut to keep the Smoke Screen in the correct position (6).
1
3
5
2
4
6
Locking nut
