Suspension mounting

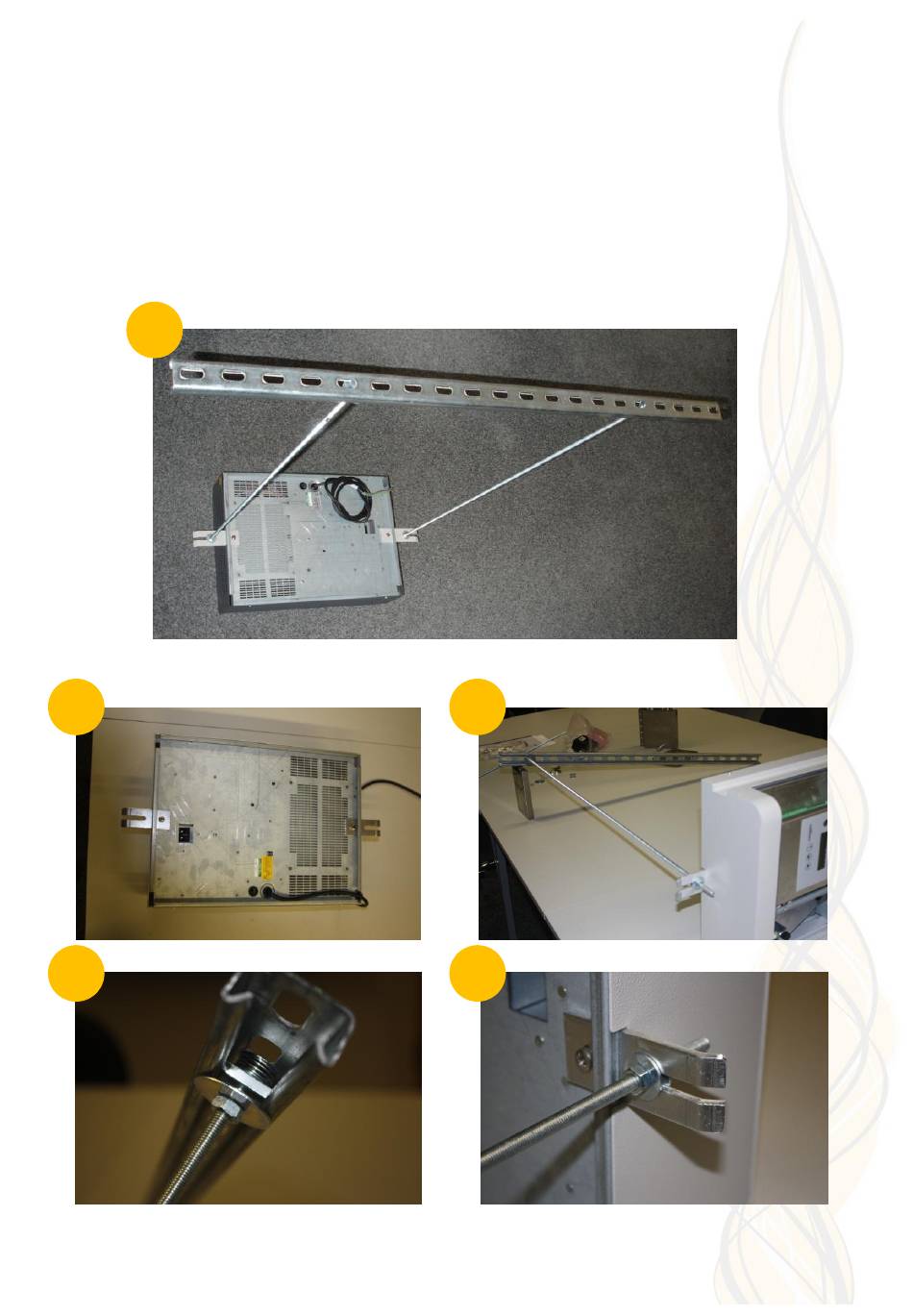

Suspending the Smoke Screen range is achieved using a 'Suspension Kit' comprising a length of
Uni-strut, two sections of threaded bar and fixings (1). Prepare the Smoke Screen by removing the
suspension brackets from the 'shipping position' and re-fit them so that the brackets protrude and
the ends are angled towards the front of the Smoke Screen (2). Fix the Uni-strut into place. There
are a range of fixings to accommodate concrete ceiling, girders etc; if in doubt contact the fixing
supplier. Attach the treaded bar to the Uni-strut using the Channel nuts (3, 4). Now place the
washers and nuts onto the threaded bar. Once this is done the Smoke Screen can be lifted into
position and the nuts tightened (5). Any final adjustments to height can be made at this stage as
the nuts and the threaded bar will take the weight of the Smoke Screen.
1
2
4
3
5
