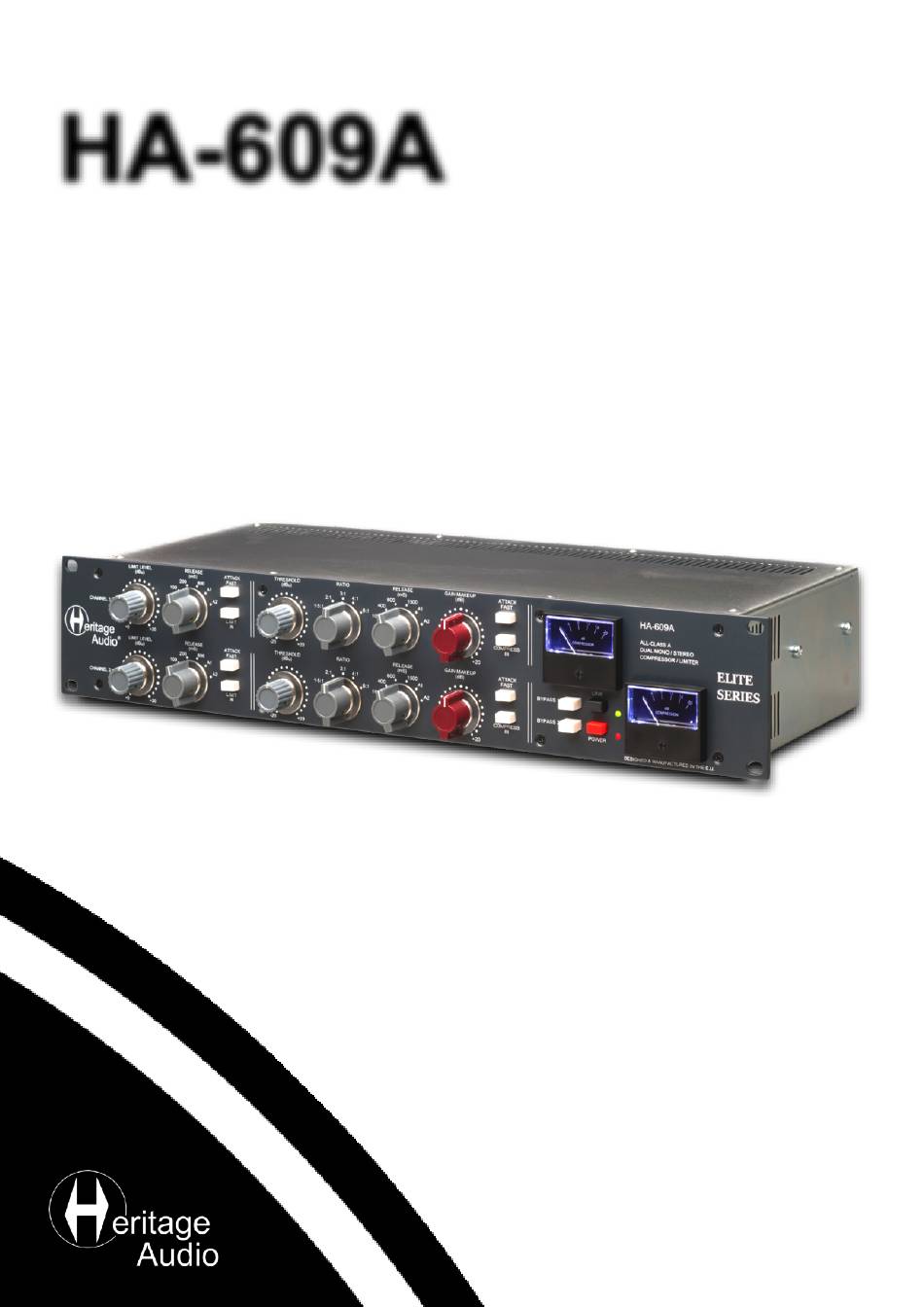

  • Page 1 HA-609A DUAL CHANNEL CLASS A COMPRESSOR/LIMITER ELITE SERIES USER MANUAL August/2022 Rev. 1.0.
  • Page 2: Table Of Contents

    Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
  • Page 3: Description

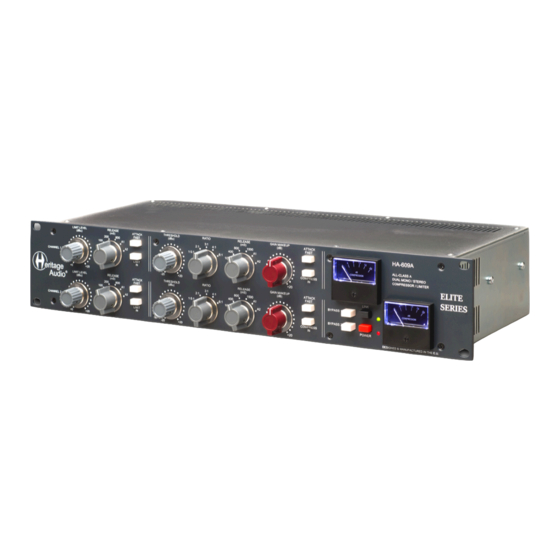

    Heritage Audio is proud to announce the HA-609A DUAL MONO STEREO COMPRESSOR/LIMITER, a modern, improved take on the classic tracking/mixing diode bridge compressor. As with the other products in their Elite Series, the HA-609A takes advantage of the latest in manufacturing technology to offer an unprecedented value without compromising audio quality —...
  • Page 4: Getting Started

    GETTING STARTED FRONT LIMIT LEVEL LIMIT RELEASE TIME LIMIT ATTACK TIME COMPRESSION RATIO COMPRESSION RELEASE Sets the output level at On a 6-position rotary 2 different times on a push THRESHOLD From a very gentle 1.5:1 On a 6-position rotary switch. which limiting occurs.
  • Page 5: Applications

    APPLICATIONS BASS RECORDING USB - COMPUTER INPUT CH 1 HA-609 A ATIVATE D.I. INPUT OUTPUT CH 1 HA-609A LINE INPUT - AUDIO INTERFACE D.I. INPUT GUITAR RECORDING USB - COMPUTER GUITAR FX PEDAL ACTIVATE +48 V FOR CONDENSER MIC INPUT CH 1 HA-609 A GUITAR AMP INPUT OUTPUT CH 1...
  • Page 6 MIXING INPUT DAW CH 1 OUPUTS DAW 1 & 2 INPUT DAW CH 2 OUTPUT CH 2 OUTPUT CH 1 HA-609A HA-609A MONITOR SPEAKERS INPUT CH 2 INPUT CH 1 HA-609A HA-609A THUNDERBOLT COMPUTER MIXING MIXBUS OUPUTS 1 & 2 DAW INPUT DAW INPUT DAW CH 2...
  • Page 7: Specifications

    SPECIFICATIONS • Maximum input level: Over +22 dBu. • Maximum output level: Over +26,5 dBu into 600 Ω. • Self-Noise: Less than -75 dBu 20 Hz-20 Khz. -80 dBu A-weighted. • THD+N (50Hz- 20Khz): not engaged, less than 0,07 % at +20 dBu. •...
  • Page 8: Trouble Shooting

    TROUBLE SHOOTING PROBLEMS SOLUTIONS There doesn´t seem to be any power feeding the Make sure the HA-PSU04 power supply has been HA-609A. connected. There is no lighting in my VU meters. This is normal, how it should be in Bypass mode. Upon activating the unit it will light up.
  • Page 9: Warranty Statement

    2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date.
  • Page 10: Recall Sheets

    RECALL SHEETS...
  • Page 11 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
