REFERENCE AUDIO MONITORING SYSTEM 1000
USER'S MANUAL
August/2023 Rev. 1.0.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R.A.M 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Heritage Audio R.A.M 1000

Summary of Contents for Heritage Audio R.A.M 1000

  • Page 1 REFERENCE AUDIO MONITORING SYSTEM 1000 USER’S MANUAL August/2023 Rev. 1.0.
  • Page 2 TABLE OF CONTENTS USER’S MANUAL Introduction Contents Description Getting started Bluetooth synchronizing Let's get technical Applications Applications Specifications
 T rouble Shooting Warranty Statement
...
  • Page 3
 H eritage Audio - Madrid, Spain © 2023 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
  • Page 4 CONTENTS USER’S MANUAL 1 R.A.M 1000. 1 USB-C to USB-C power cable. 1 USB-C to USB power cable. 1 Bluetooth antenna.

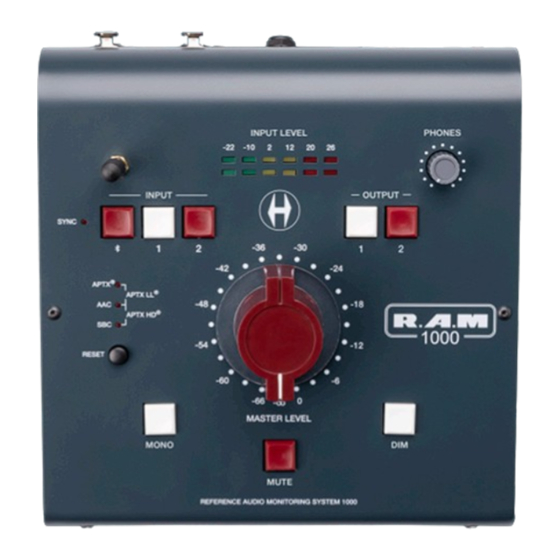

  • Page 5 DESCRIPTION USER’S MANUAL With the RAM1000 you’ll have everything you need to control what you hear right at your fingertips. The new addition to our family of monitor controllers could not be easier to navigate. Things are kept simple to make sure they don´t get in the way of your creativity.
  • Page 6 GETTING STARTED USER’S MANUAL INPUT LEVEL: LED Input Level Meter. BLUETHOOTH ANTENNA: Bluetooth wireless input (APTX®, AAC, SBC). LED SYNC INDICATOR: Confirms SYNC status. INPUT BLUETOOTH: Select Bluetooth input. INPUTS: Selects either/or both Input 1 or Input 2. LED CODEC INDICATOR: Shows the CODEC in use and confirms connection. RESET: RESET: Resets the Bluetooth sync (Hold for 10 sec).
  • Page 7 GETTING STARTED USER’S MANUAL OUTPUTS XLR: Male XLR outputs L&R. HEADPHONES: Stereo out Headphones 1/4″ TRS. INPUTS MULTI: Female XLR & 1/4″ TRS Balanced jacks L&R. SWITCH REC/MON: Selects routing control for OUTPUTS 1. OUTPUTS: 1/4″ TRS Balanced jacks L&R. POWER: USB-C Power connector of 5V / 5 Watts.
  • Page 8 BLUETOOTH SYNCHRONIZING USER’S MANUAL Synchronizing your mobile device with the R.A.M 1000 is as simple as pairing any other Bluetooth device. It will appear as “HERITAGE R.A.M 1000” on your Bluetooth devices’ list. YouTube hosts nice tutorials about how to do so in both Android and iOS if you need help.
  • Page 9 LET’S GET TECHNICAL USER’S MANUAL INPUTS: The R.A.M SYSTEM 1000 has two pairs of +4 dBu balanced analog inputs with one also being -10 dBV selectable. It also includes a very convenient Bluetooth option as an additional input. The Bluetooth input will automatically choose the best CODEC available for your device to insure the highest quality at all times.
  • Page 10 APPLICANTIONS USER’S MANUAL 1 INPUT BLUETOOTH 2 OUT MONITORING + HEADPHONES Active speaker 1L Active speaker 1R Passive speaker 2L Passive speaker 2R Power amp Headphones Bluetooth device...
  • Page 11 APPLICANTIONS USER’S MANUAL 2 IN / 2 OUT MONITORING Active speaker 1L Active speaker 1R Passive speaker 2L Passive speaker 2R Power amp Instrument stereo line out REC/MON button should be pressed (MON) to assure that the INPUT 1 signal is controlled by the MASTER LEVEL volume.
  • Page 12 APPLICANTIONS USER’S MANUAL 3 IN / 1 OUT MONITORING & 1 OUT RECORDING Passive speaker 2L Passive speaker 2R Power amp Instrument stereo line out REC/MON button should not be pressed (REC) to assure that the INPUT 1 signal continues on to the INTERFACE, not affected by the MASTER LEVEL volume.
  • Page 13 SPECIFICATIONS USER’S MANUAL • THD + N Ratio @ 1kHz 26 dBu: < 0.01 %. • Noise Floor @ Input GND: < -88 dBu. • Phase @ 1 kHz: 0º. • Dimensions (W x H x L): 190 mm x 85 mm x 200 mm. •...
  • Page 14 TROUBLE SHOOTING USER’S MANUAL PROBLEMS SOLUTIONS There is no sound coming from my R.A.M 1000. Make sure the ‘MUTE’ button is not pressed. There is no still sound coming from my R.A.M Make sure that the MASTER LEVEL volumen 1000.
  • Page 15 This warranty is not transferable. We encourage you to register your new R.A.M 1000 in our web in order to better manage any warranty related issues at: https://heritageaudio.com/registration/ Heritage Audio and the Heritage Audio “H” logos are registered Trademarks owned and/or licensed by Heritage Audio and the Heritage Audio “H”...
