RS Flight Systems SCU Front Panel V2 Installation & Operation Manual page 11

Fuse Box
SCU LED
013 014
To Main Bus
To Bat. Rel.
Bat. Bckp
Aux FP
To SCU

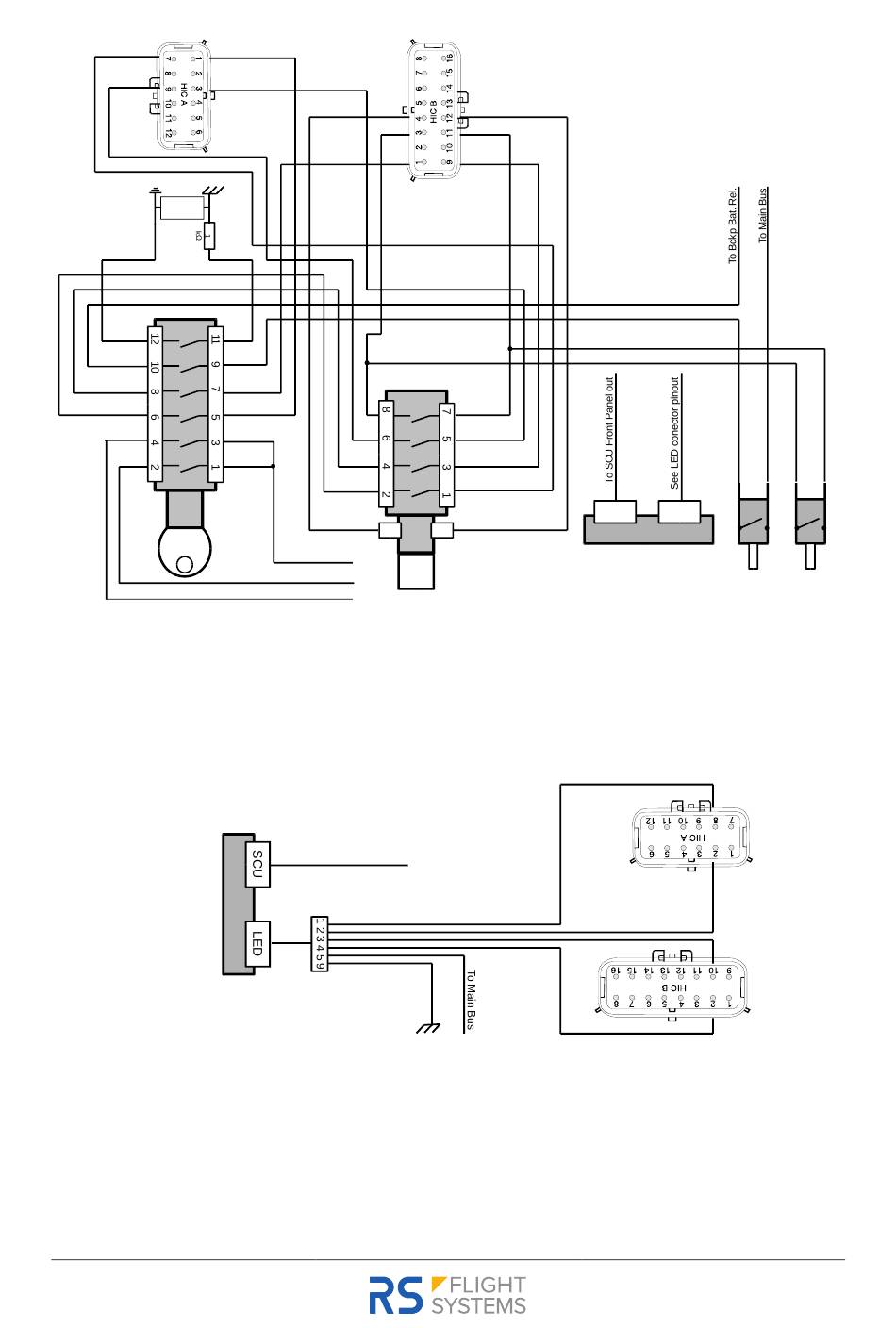

Figure 4-1: SCU Front Panel V2 wiring diagram
To SCU Front Panel out
Figure 4-2: Display Panel LED connector wiring diagram
Installation / Operation Manual 18.10.2022 | V1.02
SCU Front Panel V2 -11-
