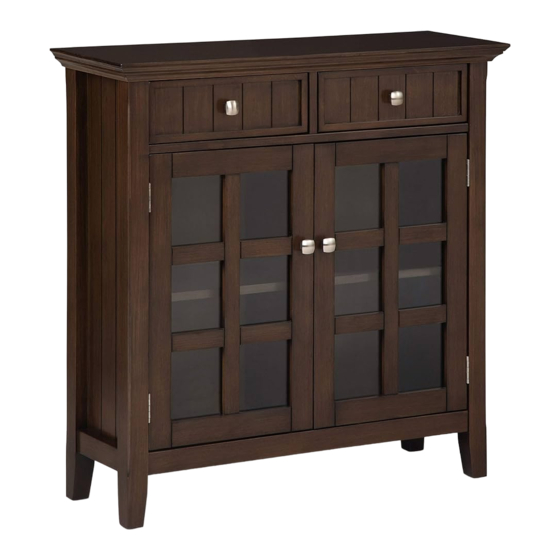

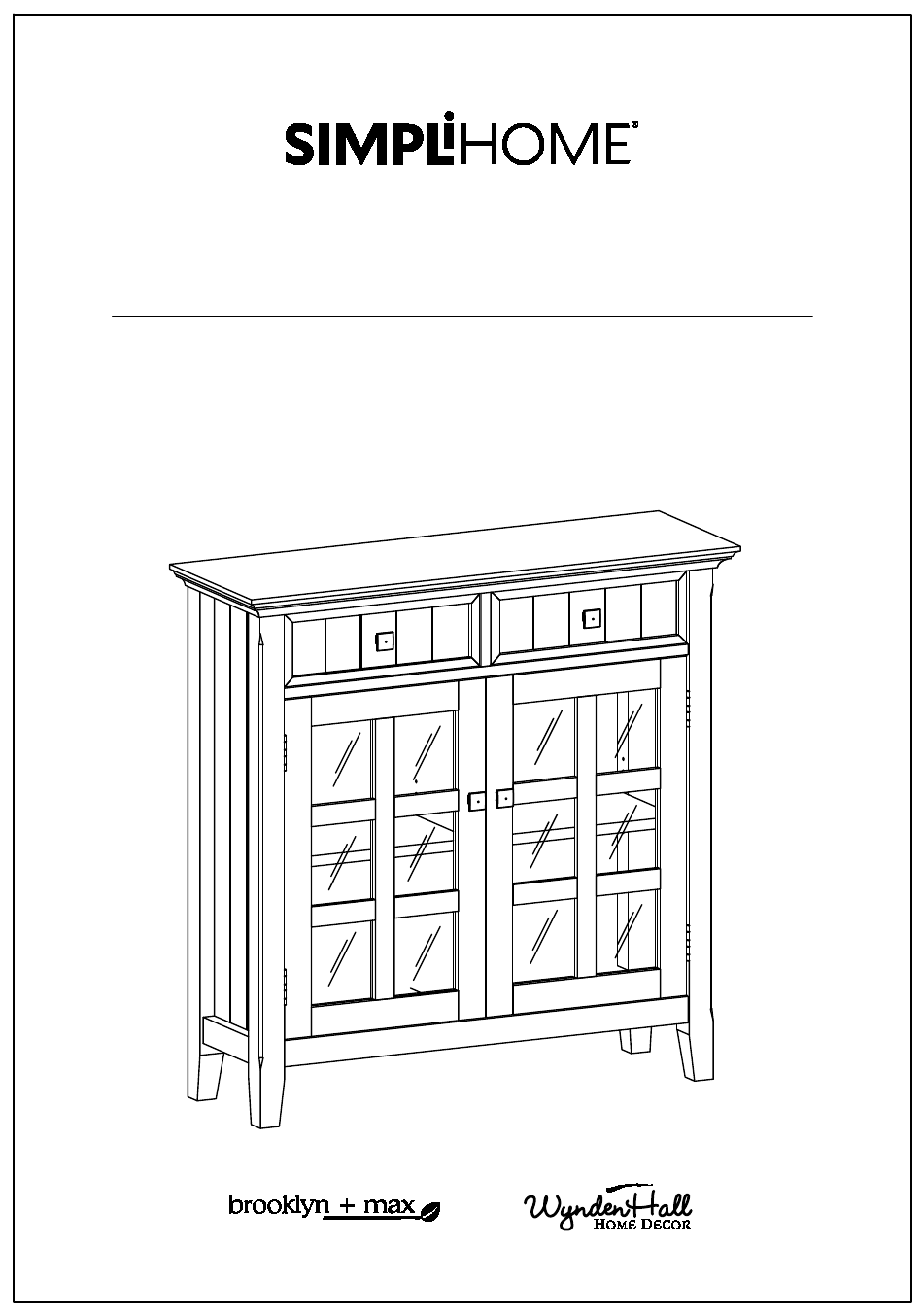

- Page 1 Acadian / Normandy / Brunswick Entryway Storage Cabinet Model # AXWELL3-13NAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Middle Frame
Pre-Assembly Information Model # AXWELL3-13NAB Part Description V16-A V16-BL V16-BR LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-D V16-E SMALL DIVIDER LARGE DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 V16-F V16-G V16-HL LEFT DOOR CABINET SHELF MIDDLE FRAME QTY 1... - Page 8 Pre-Assembly Information Model # AXWELL3-13NAB Part Description V16-HR V16-IL V16-IR Warning Label LEFT BACK PANEL RIGHT BACK PANEL RIGHT DOOR QTY 1 QTY 1 QTY 1 V16-J V16-KL V16-KR DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 2 QTY 2 QTY 2 V16-L V16-M...
- Page 9 Pre-Assembly Information Model # AXWELL3-13NAB Hardware Description CAM LOCK PIN ALLEN KEY SCREW WOOD DOWEL CAM LOCK M6 X 30mm M8 X 30mm ALLEN KEY QTY 14 SETS QTY 18 QTY 10 QTY 1 PHILLIPS SCREW HANDLE PHILLIPS SCREW ROUND HEAD M4 X 15 mm -2PC M3 X 15mm M4 X 15mm...
- Page 10 Components - Key Diagram Model # AXWELL3-13NAB V16-A V16-IL V16-BR V16-D V16-IR V16-BL V16-F V16-HL V16-E V16-C V16-G V16-HR V16-L V16-KR V16-KL V16-M V16-J...
- Page 11 Assembly Model # AXWELL3-13NAB Step 1 V16-J V16-KR V16-KL V16-KR V16-KL V16-J 1. Attach 4 Cam Lock Pins 2 to pre-drilled holes at back of Drawer Front V16-J . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides V16-KL , V16-KR . 3.
- Page 12 Assembly Model # AXWELL3-13NAB Step 3 V16-L V16-KR V16-M V16-J V16-KL 1. Align Drawer Back V16-L with Drawer Bottom V16-M and press firmly into slot. 2. Attach Drawer Back V16-L using 2 Allen Key Screws 1 through guide holes on each Side V16-KL , V16-KR .
- Page 13 Assembly Model # AXWELL3-13NAB Step 5 V16-C V16-E 1. Insert 2 Dowels 3 into guide holes on bottom of Large Divider V16-C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 14 Assembly Model # AXWELL3-13NAB Step 6 V16-C V16-F V16-E 1. Attach Middle Frame V16-F to Large Divider V16-C using 2 Allen Key Screws 1 . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXWELL3-13NAB Step 7 V16-D V16-F V16-C V16-E 1. Attach 2 Cam Lock Pins 2 into pre-drilled holes at the top of Middle Frame V16-F . 2. Align Cam Lock Pins with guide holes on Small Divider V16-D . 3.
- Page 16 Assembly Model # AXWELL3-13NAB Step 8 V16-BR V16-D V16-F V16-C V16-E V16-BL 1. Insert 4 Dowels 3 into guide holes on Middle Frame V16-F ( 2 dowels on each side ). 2. Insert 4 Dowels 3 into guide holes on Bottom Shelf V16-E ( 2 dowels on each side ).
- Page 17 Assembly Model # AXWELL3-13NAB Step 9 V16-D V16-A V16-BL V16-C V16-BR V16-E 1. Attach Top V16-A to Sides V16- BL , V16- BR and Small Divider V16-D using 6 Allen Key Screws 1 (2 screws on each Side and Small Divider). 2.
- Page 18 Assembly Model # AXWELL3-13NAB Step 10 Note: Warning Label V16-A V16-IR V16-IL 1. Attach Back Panels V16-IL , V16-IR to back frame of cabinet using 18 Phillips Screws Round Head 5 through guide holes. 2. Use Phillips Screwdriver to tighten screws.
- Page 19 Assembly Model # AXWELL3-13NAB Step 11 V16-A V16-BR V16-HR V16-BL V16-C V16-E First Step V16-HL Last Step ( after adjust the door )
- Page 20 Assembly Model # AXWELL3-13NAB Step 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 V16-G V16-G V16-G 1. Use 4 Shelf Supports 6 for each Cabinet Shelf V16-G in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Cabinet Shelf V16-G as a tipping restraint.
- Page 21 Assembly Model # AXWELL3-13NAB Step 13 1. Turn the wood lock ( on the bottom frame ) to be perpendicular to the frame for safety stop ( intended to keep the drawers from pulling all the way out ).
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
