SIMPLIHOME WyndenHall Brooklyn+Max AXWSH001-TB Manual

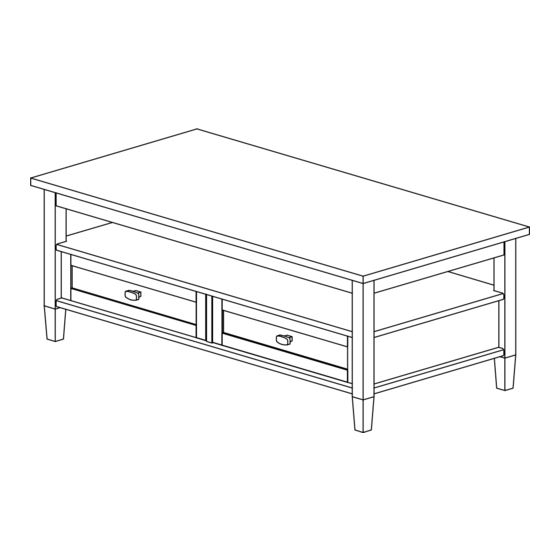

Coffee table
Hide thumbs

Advertisement

Quick Links

Download this manual
SIMP
I
HOME
I
L I F E B Y D E S I G N
WARM SHAKER / NORFOLK / LEXINGTON
COFFEE TABLE
MODEL #
AXWSH001-TB
1/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn+Max AXWSH001-TB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall Brooklyn+Max AXWSH001-TB

Summary of Contents for SIMPLIHOME WyndenHall Brooklyn+Max AXWSH001-TB

  • Page 1 SIMP HOME L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON COFFEE TABLE MODEL # AXWSH001-TB 1/16...
  • Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXWSH001-TB PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF BACK TOP SHELF QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE DRAWER FRONT CENTRE DRAWER QTY 2 QTY 2 QTY 1 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM...
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXWSH001-TB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 18 SETS Required - Flathead screwdriver Phillips screwdriver HANDLE WOOD DOWEL Rubber mallet M4X25 mm Ø8 X 30 mm Not Included QTY 4 SETS...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH001-TB 7/16...
  • Page 8 ASSEMBLY MODEL # AXWSH001-TB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front G . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides HL , HR . 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side HL , HR . 4.
  • Page 9 ASSEMBLY MODEL # AXWSH001-TB STEP 3 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
  • Page 10 ASSEMBLY MODEL # AXWSH001-TB STEP 5 NOTE: Holes are on the right side. 1. Attach Top Shelf C to Left Side BL using Allen Key Screws 1 through pre-drilled holes. 10/16...
  • Page 11 ASSEMBLY MODEL # AXWSH001-TB STEP 6 1. Attach 2 Cam Lock Pins 2 to Left Side BL using guide holes. 2. Align and insert Cam lock Pins on Left Side BL into pre-drilled holes on Back E . 3. Using a flathead screwdriver tighten Cam Locks into Pins. 4.
  • Page 12 ASSEMBLY MODEL # AXWSH001-TB STEP 7 1. To attach Right Side BR to Top Shelf C and Back E , repeat steps 5 - 6. 12/16...
  • Page 13 ASSEMBLY MODEL # AXWSH001-TB STEP 8 1. Attach Centre Drawer F to Top Shelf C using Allen Key Screws 1 through pre-drilled holes. 13/16...
  • Page 14 ASSEMBLY MODEL # AXWSH001-TB STEP 9 1. Insert 2 Dowels 5 into pre-drilled holes on the Centre Drawer F . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 15 ASSEMBLY MODEL # AXWSH001-TB STEP 10 1. Insert Dowels 5 into each corner of Side BL , BR . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach 6 Cam Lock Pins 2 to bottom of Top A . 4.

  • Page 16: Warranty

    SIMP HOME L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
