Warm Shaker / Norfolk / Lexington
Square Coffee Table
Model # AXWSH012-GR
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Warm Shaker AXWSH012-GR and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME Warm Shaker AXWSH012-GR

Summary of Contents for SIMPLIHOME Warm Shaker AXWSH012-GR

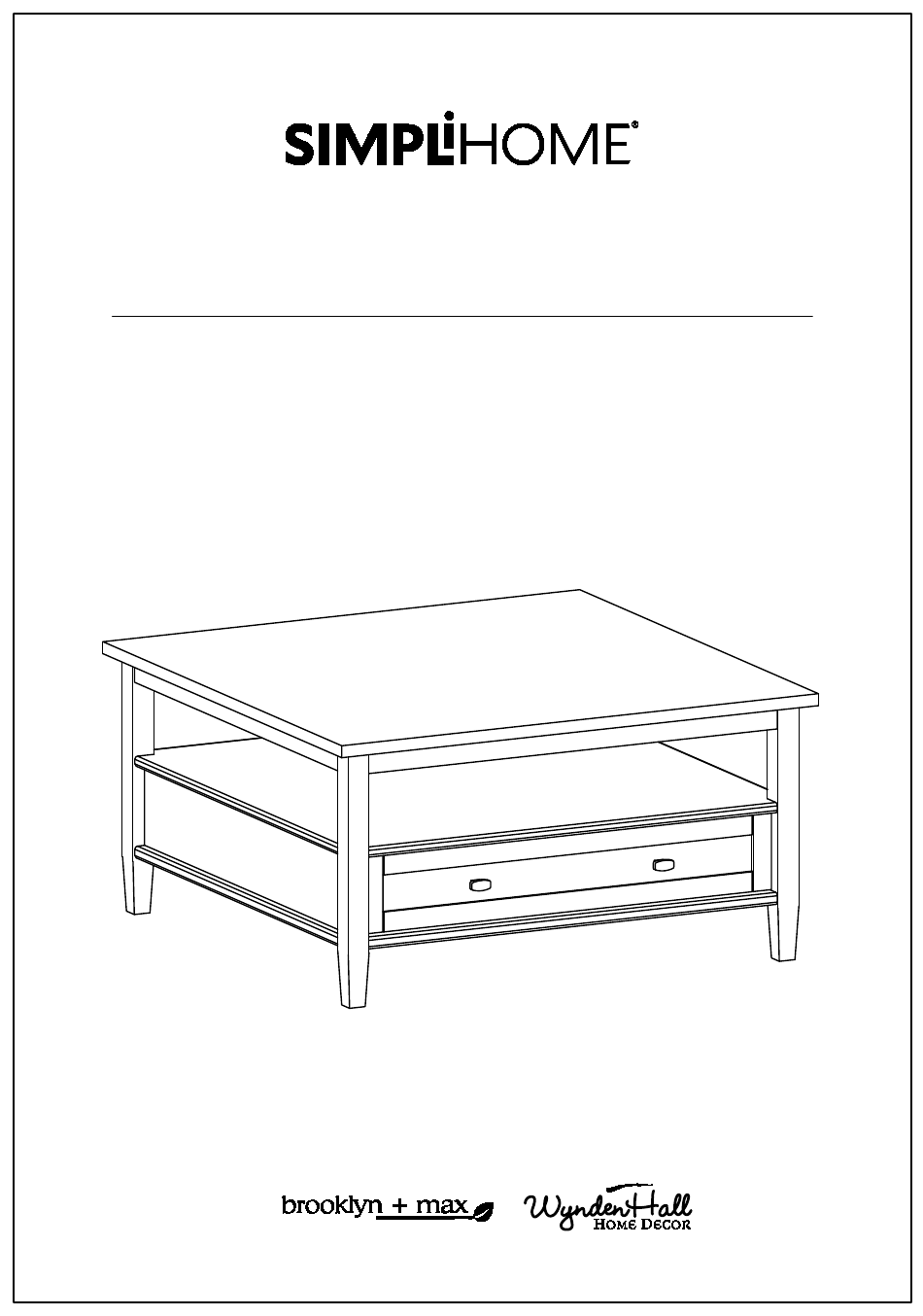

  • Page 1 Warm Shaker / Norfolk / Lexington Square Coffee Table Model # AXWSH012-GR...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
  • Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXWSH012-GR Part Description SIDE (L&R Same) BOTTOM FRAME QTY 2 QTY 1 QTY 1 MIDDLE SHELF DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 2 QTY 2 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 2 QTY 2 QTY 2 BOTTOM DRAWER SUPPORT...
  • Page 8 Pre-Assembly Information Model # AXWSH012-GR Hardware Description CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY SCREW CAM LOCK M6 X 30mm M6 X 35mm QTY 12 SETS QTY 8 QTY 24 HANDLE WOOD DOWEL M4 X 25 mm ALLEN KEY Ø8 X 30mm QTY 4 SETS QTY 4...
  • Page 9 Components - Key Diagram Model # AXWSH012-GR...
  • Page 10 Assembly Model # AXWSH012-GR Step 1 1. Attach five Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front E . 2. Attach one Cam Lock Pin 3 into pre-drilled holes on Drawer Back G . 3. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 11 Assembly Model # AXWSH012-GR Step 2 1. Align Cam Lock Pins with guide holes and attach parts FL , FR , I to Drawer Front E . 2. Insert two Cam Locks 3 into guide holes on each part FL , FR . 3.
  • Page 12 Assembly Model # AXWSH012-GR Step 4 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot . 2. Align Cam Lock Pins on Drawer Back with guide hole on Bottom Drawer Support I . 3. Attach Drawer Back using two Allen Key Screws 1 through drilled holes on each Drawer Side FL , FR .
  • Page 13 Assembly Model # AXWSH012-GR Step 6 1. Insert Dowels 4 into guide holes on Sides B . 2. Use rubber mallet to tap Dowels 4 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 7 1. Attach Middle Shelf D to first Side B using four Allen Key Screws 2 through guide holes .
  • Page 14 Assembly Model # AXWSH012-GR Step 8 Repeat Step 7 for the second Side B .
  • Page 15 Assembly Model # AXWSH012-GR Step 9 1. Align Dowels with guide holes on Top A and attach Sides B to Top A . 1. Use eight Allen Key Screws 2 to attach Top A through guide holes. 2. Use Allen Key 5 to tighten Screws. Do not over-tighten.
  • Page 16 Assembly Model # AXWSH012-GR Step 10 1. Use eight Allen Key Screws 2 to attach Bottom Frame C through guide holes. 2. Use Allen Key 5 to tighten Screws. Do not over-tighten.
  • Page 17 Assembly Model # AXWSH012-GR Step 11 1. Insert assembled drawers into glides on assembled table.
