SIMPLIHOME WyndenHall Brooklyn + Max AXWSH008-TB Manual

Warm shaker / norfolk / lexington high storage wine rack
Hide thumbs

Advertisement

Quick Links

Download this manual
Warm Shaker / Norfolk / Lexington
High Storage Wine Rack
Model # AXWSH008-TB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn + Max AXWSH008-TB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall Brooklyn + Max AXWSH008-TB

Summary of Contents for SIMPLIHOME WyndenHall Brooklyn + Max AXWSH008-TB

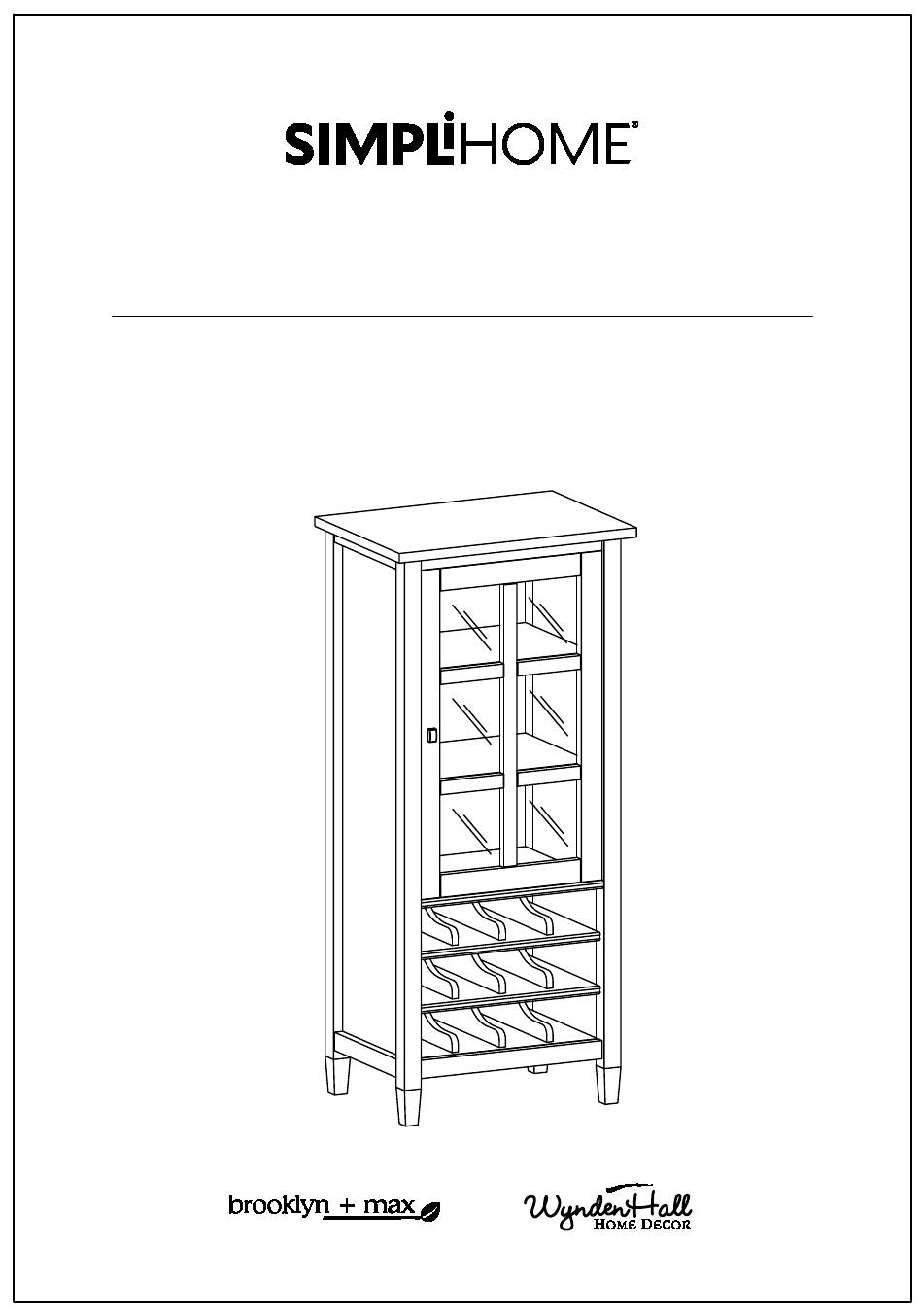

  • Page 1 Warm Shaker / Norfolk / Lexington High Storage Wine Rack Model # AXWSH008-TB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXWSH008-TB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM SHELF TOP SHELF QTY 1 QTY 9 QTY 1 CENTRE SHELF CABINET SHELF DOOR QTY 2 QTY 2 QTY 1 Warning Label BACK PANEL QTY 1...
  • Page 8 Pre-Assembly Information Model # AXWSH008-TB Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY CAM LOCK Ø8 X 30mm M6 X 30mm QTY 1 QTY 10 SETS QTY 24 QTY 6 PHILLIPS SCREW ROUND HEAD HANDLE PHILLIPS SCREW M4 X 15mm M4 X 25 mm SHELF SUPPORT...
  • Page 9 Components - Key Diagram Model # AXWSH008-TB...
  • Page 10 Assembly Model # AXWSH008-TB Step 1 1. Attach 3 Dividers C to Centre Shelf F using 6 Phillips Screws 12. 2. Use Phillips screwdriver to snugly tighten screw. 3. Repeat Step-1 for the second Centre Shelf F and other 3 Dividers C . Step 2 1.
  • Page 11 Assembly Model # AXWSH008-TB Step 3 1. Insert 8 Dowels 3 into guide holes on Top Shelf E and Bottom Shelf D ( 2 dowels on each side ). 2. Insert 12 Dowels 3 into guide holes on 2 Centre Shelf F . ( 6 dowels on each Centre Shelf ).
  • Page 12 Assembly Model # AXWSH008-TB Step 4 1. Insert 2 Dowels 3 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 13 Assembly Model # AXWSH008-TB Step 5 Warning Label 1. Attach Back Panel I to back frame of wine rack using 15 Phillips Screws Round Head 5 through guide holes. 2. Use Phillips Screwdriver to tighten screws.
  • Page 14 Assembly Model # AXWSH008-TB Step 6 1. Attach Adjustable Hinges 11 to Door H using Phillips Screws 10 into pre-drilled holes on Door H . 2. Attach Adjustable Hinges on Door H to Right Side BR using Phillips Screws 10 into pre-drilled holes on Right Side BR .

  • Page 15: Important Note

    Assembly Model # AXWSH008-TB IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 16 Assembly Model # AXWSH008-TB Step 7 1. Attach Magnet Plate 9 to corner of Door H using Phillips Screws 8 into pre-drilled holes on Door H . 2. Attach Magnet 9 using Phillips Screws 8 into pre-drilled holes on Top Shelf E . 3.
  • Page 17 Assembly Model # AXWSH008-TB Step 8 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 6 for each Cabinet Shelf G in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Cabinet Shelf G as a tipping restraint.
  • Page 18 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not Step 9 included in the hardware pack.
  • Page 19 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
