Sunmi V2, T5930 - Wireless Data Handheld POS System User Guide

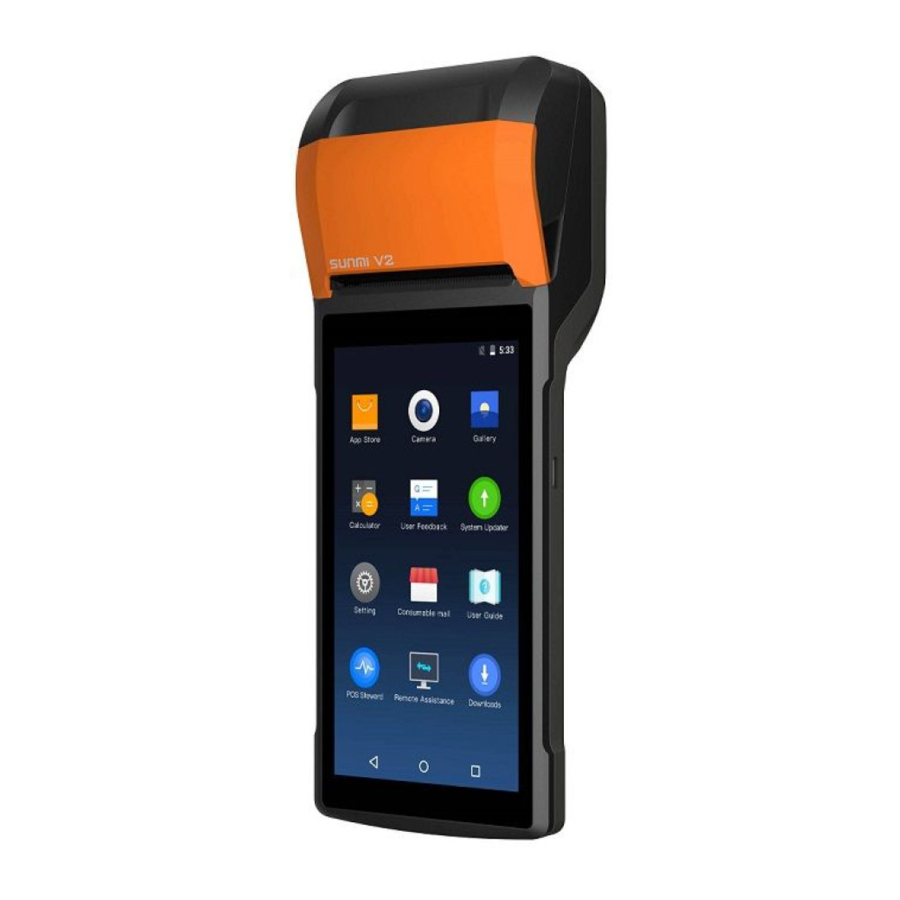

Product Description

Power key
Short press: wake up the screen, lock the screen.
Long press: long press for 2-3 seconds in power off mode to switch on the device.
Long press for 2-3 seconds in normal operation mode to select power off or reboot.
Long press for 11 seconds when system is frozen for automatic reboot.

Volume key
Volume adjustment.

Printer
For printing sales slips in power on mode.

Type-C USB
For device recharging and developer debugging.

Camera
For payment scanning and 1D/2D code quick scanning.

SIM Card Slot
Note: To prevent system errors, please make sure the device is turned off when you insert or remove the SIM card.

Printing instructions

This device supports 58mm thermal paper with the specifications of 57±0.5mm*Ø50mm

• Please open the paper container with the uncovering handle (as shown in Fig.1). Please do not force open the paper container to avoid print head gear wear;
• Feed the paper correctly into the paper container in the direction as shown, and pull some paper outside the cutter (as shown in Fig.2);
• Close the cover of the paper container to finish printing paper feeding(as shown in Fig.3).

Note: If the printed paper is blank, please check whether the paper roll has been installed in the correct direction.

Instructions for recharging and battery

This device supports charging only by USB cable

• Connect the 5V adapter to the power supply socket;
• Connect the USB cable to the USB interface of the device for recharging;
• The screen will display the recharging icon during the recharging process;
• If the recharging icon does not appear, please check whether the USB interface is well connected.

Instructions/Notes for battery

• This device adopts 7.6V/2580mAh lithium battery; please do not disassemble the battery.
• In order to protect the battery life, we recommend that you recharge the device whenever possible, and please do not allow the battery to fully drain before recharging.

Extremely easy settings

Only a few steps to activate an intelligent business device

1. Set 2G/3G/4G: when power off, insert the 2G/3G/4G card and then power on.
   (Refer to the Technical Specifications for the support of cards)
2. Long press the Power Key for 2~3s to activate the backlight of screen, and then operate following the prompts after entering the startup/booting screen for the first time. 2 modes for accessing the Internet are available.
3. Set WiFi
   • Click "Set" button, activate "WLAN" to enter the WLAN searching screen, and wait it to list all useable WLAN hot spots;
   • Click the WLAN to be connected, and enter the access password in case of an encrypted network.

Download/use Apps

After connected to the Internet, open the App Market, find, download and install the Apps.

FAQ

Booting failure (e.g. low battery)

• Plug the USB cable and charge for 3min;
• Check if the screen displays the normal charging status.

System crash

• Long press the Power Key for 11s to reboot.

Read the installed Help App for more information

Precautions

Safety Warning

• Connect the AC plug to the AC socket corresponding to the marked input of the power adapter;
• Do not use in the presence of any potentially explosive gas;
• To avoid injury, unauthorized persons shall not open the power adapter;
• This is a Class A product. This product may cause radio interference in living environments. In that case, the user may be required to take adequate measures against interference.
• Battery replacement:
  1. Explosion danger may arise if replacing with the wrong battery!
  2. The replaced battery shall be disposed of by maintenance personnel, and please do not throw it into fire!

Significant Safety Instructions

• This terminal is a handheld device, and the user shall protect the password from being peered at by others while entering the password;
• Do not install or use the device during lightning storms to avoid the potential risks of lightning shock;
• Please turn off the power immediately if you notice abnormal odor, heat or smoke;
• The paper cutter is sharp, please do not touch!

Suggestions

• Do not use the terminal near water or moisture to prevent liquid from falling into the terminal;
• Do not use the terminal in extremely cold or hot environments, such as near flames or lit cigarettes;
• Do not drop, throw or bend the device;
• Use the terminal in a clean and dust-free environment if possible to prevent small items from falling into the terminal;
• Please do not use the terminal near medical equipment without permission.

Statements

The Company does not assume responsibilities for the following actions:

• Damages caused by use and maintenance without complying with the conditions specified in this guide;
• The Company will not assume any responsibilities for the damages or problems caused by optional items or consumables (rather than the initial products or approved products of the Company). The customer is not entitled to change or modify the product without our consent.
• The product's operating system supports official system updates, but if you change the operating system into a third party ROM system or alter the system files by system cracking, it may cause system instability and security risks and threats.

Disclaimer

As a result of product upgrading, some details in this document may not match the product, and the actual product shall govern. The Company reserves the right of interpretation of this document. The Company also reserves the right to alter this specification without prior notice.

Technical specifications

Technical features and characteristic

Name and content of toxic and harmful substances contained in this product are shown in the following table

: It indicates that the content of toxic and harmful substances in all homogeneous materials of this part is below the limit specified in SJ/T11363-2006.

: It indicates that the content of toxic and harmful substances is higher than the limit specified in SJ/T11363-2006 in at least one homogeneous material of this part; however, the the reason why the toxic substance of that part exceeds the limit is that there is no applicable material to replace it currently.

For products that have reached or passed the service years for environmental protection, they should be recycled according to Measures for Control and Management of Electronic Information Products and should not be thrown away at will.

This product can be used across EU member states.
The full text of the EU declaration DOC is available at the following internet address: www.sunmi.com

Manufacture
Shanghai Sunmi Technology Co.,Ltd.
Room 505 No.388 Song Hu Road Shanghai, China

List of packaged items

Terminal device × 1

User's Guide × 1

Charger & Adapter × 1

USB Cable × 1
