Summary of Contents for Sunmi T2SL

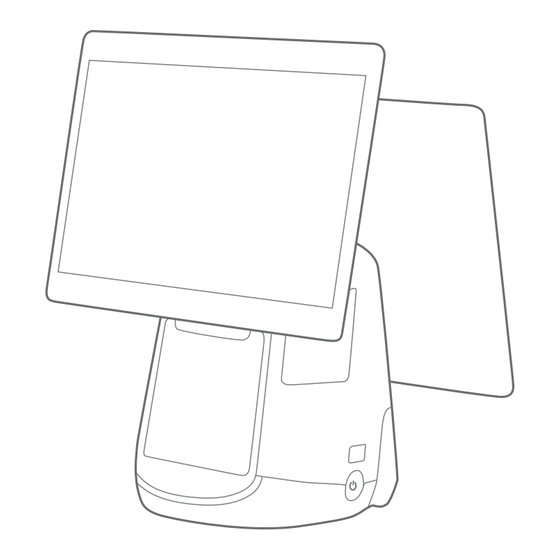

- Page 1 POS System User Manual Book Before operating this unit please read these instructions completely and save them...
- Page 2 Introduction to POS Three configurations of T2s 〃 “Take dual 15.6 as sample” Main Display Paper exit of printer 15.6" Main Display 15'6" Main Display + 10'1" 15.6" Dual-Display Cover handle of printer (L1561) Customer Display L1563 (L1562) Paper roller cover of printer Simplif ied Setting USB interface Power button...
- Page 3 POS Machine Installation Interface cover SIM card slot Customer Display TF card slot Micro USB debugging port Debugging function button Cable cover SIM card slot Note: The machine must be in the power-off status during inserting or removing the SIM card. If plugging or removing is done in the power-on status, it may cause a machine stoppage.
-
Page 4: Common Troubleshooting
Wrong Operation Paper Jammed Troubleshooting Firstly, open outward the Secondly, adjust the cutter knob cover of the printer cutter upwards until it is removed. Please do not tilt the printing paper. Please do not get printing paper Do not pull the printing paper roll caught in the aperture of the in the paper case tray too long. -
Page 5: Specification
Specification Name and Content of Toxic or Harmful Substances in this Product Operating system Android 9.0 Processor Qualcomm Snapdragon Qcta-core Toxic or Harmful Substances or Elements 15.6-inch FHD1920 × 1080 resolution Main-screen Memory 32GB ROM + 3GB RAM; 64GB ROM + 4GB RAM Part Name Lead Mercury... - Page 6 Precautions FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning Important Safety Instructions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and ·...
- Page 7 POS System User Manual This Manual shall be read carefully before use and remain in safe hands.
- Page 8 Quick Installation Guide “Take main screen as sample” Three options for sub screen of intelligent POS machine 1. Rotate the display to horizontal 2. Open the port cover 15.6 〃 main screen only 15.6 〃 main screen+10.1 〃 15.6 〃 main screen+15.6 〃 （L1571）...
-
Page 9: Product Introduction
Product Introduction “Take main screen as sample” Card slot cover 15.6” Slot reader interface Display Interface cover TF card slot USB interface Debug key Power, Pilot Light Micro USB debug port Port cover Metal Base Cash drawer interface interface interface Headset Serial Power... - Page 10 Installation Steps for the VESA Bracket “Single screen configuration only” Remove the base Remove the base Remove the base Install VESA accessories 1. Put the display flat on the desktop 4. Rotate the metal base to horizontal. 6. Unscrew the four M4 screws with a 1.
-
Page 11: Basic Specifications
Basic Specifications Minimal Settings Operating system Android 9.0 Processor Qualcomm snapdragon Qcta-core processor Only a few steps to turn on the intelligent business equipment. Display resolution 15.6’’ resolution HD 1920 x 1080 Press the power button and the screen will power on. Enter the first start-up screen and Storage 32GB ROM + 3GB RAM or 64GB ROM + 4GB RAM follow the prompts. -
Page 12: Package Content
Precautions Name and content of toxic and harmful substances contained in this product are shown in the following table Warning Important Safety Instructions · Please insert the AC plug into the AC outlet accord · Avoid installing or using during ing to the identifying input on the power adapter;... -
Page 13: Eu Regulatory Conformance
Hereby, Shanghai Sunmi Technology Co., Ltd. declares that the radio equipment type is in compliance with the product includes the following features and characteristics Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.sunmi.com RF Frequency: 2.4G Wi-Fi: 2412-2462 MHz(b/g/n20), 2422-2452 MHz(n40)
