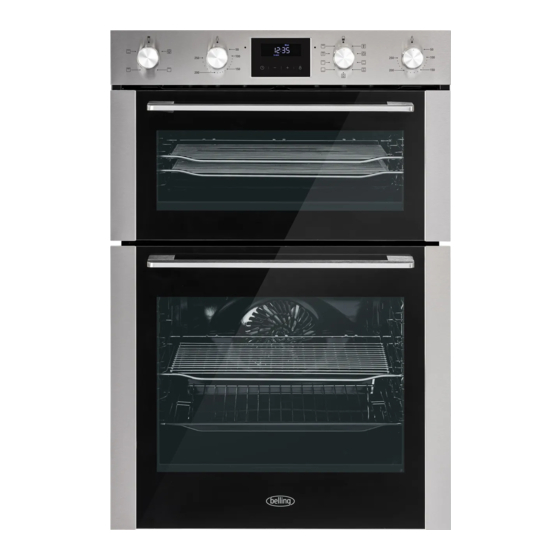

Belling Built In 90cm Multi Function
1
Date: 03/03/2022

Advertisement

Table of Contents
loading

Related Manuals for Belling BI903MFC

Summary of Contents for Belling BI903MFC

  • Page 1 Belling Built In 90cm Multi Function Date: 03/03/2022...
  • Page 2 PL - Poland NZ - New Zealand NL - Netherlands AU - Australia ES - Spain To contact Belling about your appliance, please call: Warranty Registration Customer Care Helpline 0344 815 3746 0800 952 1068 in case of diffculty within the UK...
  • Page 3 INTRODUCTION ACKNOWLEDGEMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. This user guide book is designed to help you through each step of owning your new product. Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can.
  • Page 4 SAFETY WARNING • During use the appliance becomes hot. Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction...
  • Page 5 disconnection with a minimum contact separation of 3mm. • Connection should be made with a suitable flexible cable with a minimum temperature rating of 70°C. • Although every care has been taken to ensure this appliance has no sharp edges. We recommend that you wear protective gloves when installing and moving this appliance.

  • Page 6: Getting To Know Your Appliance

    GETTING TO KNOW YOUR APPLIANCE Note: Your appliance layout may differ depending on the model. Multifunction Control Panel Top Oven/Grill Temperature Control (K2) Main Oven Function Selector Control (K1) Clock/Programmer Top Oven Function Main Oven Temperature Minus Plus Selector Control (K1) Control (K2) OVEN/GRILL FUNCTIONS Note: Your oven may not have all of the functions shown here.
  • Page 7 Symbol Main Oven Function Descriptions Oven Function Selector Switch:- Use to select the desired oven function. Defrost and Dough Proving:- Can be used to gently defrost frozen foods, This setting can also be used to help dough to rise faster than at room temperature. Fanned Oven:- The even temperature in the oven makes this function suitable for batch baking, or batch cook- ing foods on one or more levels at the same time.

  • Page 8: Cooling Fan

    Oven Selector control Temperature control Cooling Fan When cooking is finished, paused, or if the central oven temperature is over a specific temperature, the cooling fan will continue working for around 15 minutes. When the central oven temperature drops below the specific temperature, the cooling fan will stop. To use your appliance To select a Cooking Function and Cooking Temperature 1.
  • Page 9 Clock/Programmer Note: The image below is a generic timer image. Your clock / programmer may not have all these functions Minute minder Manual mode Volume level Cooking time / Duration 7-segment display End of cooking time Max. adjustable minute minder Clock Symbol Max.
  • Page 10 Setting the Minute minder The minute minder does not switch the oven off automatically. A minute minder duration time of between 1 minute and 99 minutes can be selected. The clock is displayed as “h:mm”. 1. Press the function key repeatedly until the minute minder symbol starts to flash. 2.
  • Page 11 Check, modify or cancel the cooking duration time 1. If you need to check or change the cooking duration time, press the function key repeatedly until the cooking duration time symbol starts flashing again, and the remaining cooking duration time is displayed.
  • Page 12 Check, modify or cancel the cooking end time 1. If you need to check, change or cancel the cooking end time, press the function key repeatedly until symbol starts flashing again, and the cooking end time is displayed. 2. While the cooking end time symbol is flashing, you can use the plus and/or minus keys to adjust the cooking end time.
  • Page 13 Soft Closing Door (If fitted) The door can be paused at any angle greater than 30 The door will close slowly under the action of the damper, if it is less than or equal to an angle of 30 Please do not close the door vigorously. Catalytic Oven liners (If fitted) Some oven specifications have catalytic oven liners fitted to the sides of the oven, you can easily tell if they are fitted because the panel is a light grey soft touch enamel.

  • Page 14: Removing The Appliance Door

    Removing the appliance door 1. Open the appliance door fully. 2. Fold open the two locking levers on the left and right 3. Close the appliance door as far as the limit stop. 4. With both hands, grip the door on the left- and right-hand side, and pull it out upwards. Fitting the appliance door Reattach the appliance door in the opposite sequence to removal.
  • Page 15 Removing the door cover The plastic inlay in the door cover may become discolored. To carry out thorough cleaning, you can remove the cover. Remove the appliance door like instructed above. 1. Press on the right and left side of the cover. 2.
  • Page 16 Because of the 2 points above, we strongly recommend you not to remove the door cover unless the appliance door removed. Damage caused by incorrect operation is not covered under warranty. Rails When you want to have a good cleaning for the rails and cavity, you can remove the shelves and clean them.

  • Page 17: Appliance Door

    APPLIANCE DOOR With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come. This will tell you how to remove the appliance door and clean it. For cleaning purposes and to remove the door panels, you can detach the appliance door. The appliance door hinges each have a locking lever.
  • Page 18 Accessories Wire shelf: For dishes, cake pan with items for roasting and baking. Shelf support rails: Used to support the wire shelf and grill pan if required. These shelf support rails on the right and left sides of the oven can be removed. Grill pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat/ spillage and meat juices.

  • Page 19: Shelf Placement Warning

    Shelf placement warning: To ensure the oven shelves operate safely, correct placement of the shelves between the side rails is imperative. Shelves and the grill pan can only be used between the first and fifth layers on the main oven and first and third layers on the top oven. Ensure that shelves are inserted correctly, with the upstand at the back and pointing upwards.
  • Page 20 Standard shelves Ensure the shelf is fully pushed towards the back of the oven, until the shelf stopper is reached. Slightly raise the shelf and insert in the chosen shelf position Front of appliance BULB REPLACEMENT Risk of electric shock! Glass cover You must replace a damaged glass cover.
  • Page 21 Maintaining your ap liance Area Appliance exterior Cleaning Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Appliance exterior Stainless steel front Corrosion can form under such flecks.
  • Page 22 HEALTH Area Appliance exterior Cleaning Stainless steel cleaner: Observe the manufacturer's instructions. Do not use stainless steel care Stainless steel door cover products. Remove the door cover for cleaning. Hot soapy water: Soak and clean with a dish cloth or brush. Accessories If there are heavy deposits of dirt, use a stainless steel scouring pad.
  • Page 23 Please keep this handbook for future reference, or for anyone else who may use the appliance.

  • Page 24: Technical Data

    TECHNICAL DATA Electric Built In Electrical supply / Load Appliance Size (cm) Electrical supply Load (kW) 90cm Multifunction 220 - 240V ~ 50Hz-60Hz For the specific power rating of your model, refer to the data badge on the front frame of your appliance. WARNING: This appliance must be earthed.
  • Page 25 The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014. Symbol Value Unit BEL BI903MF C Model identification Type of oven Built-in electric oven 49.9 Mass of appliance Number of cavities Heat source per cavity Electricity (electricity or gas)
  • Page 26 Oven energy saving tips: Cook meals together, if possible. Keep the pre-heating time short. Do not lengthen cooking time. Do not open the oven door during the cooking period. Do not forget to turn the appliance off at the end of cooking.
  • Page 27 PN:16171100A37359...
