OPERATOR'S MANUAL

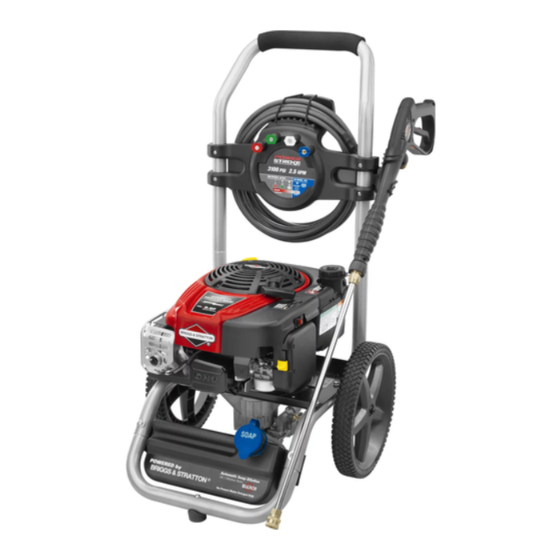

2700 PSI PRESSURE WASHER
PS80947J
To register your POWERSTROKE product, please
visit: http://register.powerstroketools.com/
NOTICE
Do not use E15 or E85 fuel in this
product. It is a violation of federal
law and will damage the unit and void
your warranty. Only use unleaded gasoline containing up to
10% ethanol.
Important Safety Instructions .................................................................................................................................................................. 2
Specific Safety Rules .............................................................................................................................................................................. 3
Symbols ...............................................................................................................................................................................................4-5
Features .................................................................................................................................................................................................. 6
Tools Needed .......................................................................................................................................................................................... 6
Assembly .............................................................................................................................................................................................7-8
Operation ...........................................................................................................................................................................................9-13
Maintenance ....................................................................................................................................................................................13-16
Troubleshooting .................................................................................................................................................................................... 17
Warranty ................................................................................................................................................................................................ 18
Parts Ordering / Service ...........................................................................................................................................................Back Page
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
AVISO
TABLE OF CONTENTS
SAVE THIS MANUAL FOR
FUTURE REFERENCE
CUSTOMER SERVICE
USA: 1-877-617-3501
www.powerstroketools.com
Advertisement
Table of Contents
Related Manuals for Power Stroke PS80947J
Summary of Contents for Power Stroke PS80947J
-
Page 1: Table Of Contents
CUSTOMER SERVICE USA: 1-877-617-3501 www.powerstroketools.com OPERATOR’S MANUAL 2700 PSI PRESSURE WASHER PS80947J To register your POWERSTROKE product, please visit: http://register.powerstroketools.com/ NOTICE AVISO Do not use E15 or E85 fuel in this product. It is a violation of federal law and will damage the unit and void your warranty. - Page 2 See this fold-out section for all of the figures referenced in the operator’s manual. Fig. 1 L - Handle A - Fuel cap F - Muffler M - Trigger handle B - Starter grip and rope G - Fuel valve N- Trigger with lock out C - Fuel tank H - On/off switch...
- Page 3 Fig. 4 Fig. 2 Fig. 7 A - Collar B - Inlet coupler C - High pressure hose Fig. 5 A - Oil cap/dipstick Fig. 8 A - Push to insert Fig. 3 A - Threaded outlet B - Collar Fig.
- Page 4 Fig. 10 Fig. 12 Fig. 15 ON/OFF SWITCH A - Trigger B - Slot C - Lock out Fig. 13 A - OFF ( O ) B - ON ( I ) Fig. 11 Fig. 16 A - Nozzle B - “Click” C - Quick-connect collar D - Spray wand E - Pull back the quick-connect collar...
- Page 5 Fig. 17 Fig. 21 Fig. 19 A - Air filter knob B - Air filter cover C - Air filter A - Oil cap/dipstick TO MOVE THE MACHINE B - Oil fill hole Fig. 20 C - Container Fig. 18 Fig.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Use only recommended accessories. The use of improper accessories may cause risk of injury. DANGER: Follow the maintenance instructions specified in this Risk of fire and serious burns: Never remove fuel cap manual. when unit is running. Shut off engine and allow the unit ... -
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES Use caution when positioning the pressure washer for If the fuel tank has to be drained, do this outdoors into use. Warm air from the engine could cause discolored a container approved for gasoline and away from all ignition sources. -
Page 8: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will result DANGER: in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could result WARNING: in death or serious injury. - Page 9 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning for safe operation of this product. SYMBOL NAME EXPLANATION Gas products emit carbon monoxide, an odorless, colorless, Toxic Fumes poison gas. Breathing carbon monoxide can cause nausea, fainting, or death.
-
Page 10: Features
FEATURES PRODUCT SPECIFICATIONS Fuel Tank Capacity ..............................0.31 gal. Maximum Pounds Per Square Inch Pressure* ......................2,700 psi Maximum Gallons Per Minute* ...........................2.4 gpm Maximum Inlet Water Temperature ..........................104˚F *Max. rating determined by PWMA Standard 101 KNOW YOUR PRESSURE WASHER SOAP NOZZLE See Figure 1. -
Page 11: Assembly
ASSEMBLY UNPACKING WARNING: This product requires assembly. Carefully remove the product and any accessories from To prevent accidental starting that could cause serious the box. Make sure that all items listed in the packing list personal injury, always disconnect the engine spark plug wire from the spark plug when assembling parts. - Page 12 ASSEMBLY Turn the collar clockwise to tighten the hose securely to Inspect the screen in the water intake. the pump. If the screen is damaged, do not use the machine until NOTE: Be careful to avoid cross-threading, which can the screen has been replaced.
-
Page 13: Operation
OPERATION Wash boats, outdoor furniture, powered or non-powered WARNING: garden equipment, gutters, window screens, grills, play- ground equipment, etc. Do not allow familiarity with tools to make you care- *Always test in an inconspicuous area first. less. Remember that a careless fraction of a second is sufficient to inflict serious injury. - Page 14 OPERATION PUMP LUBRICANT Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than The pressure washer pump has been filled with sufficient the percentage of oxygenates previously stated are not lubricant at the factory. You do not need to check or add covered under warranty.
- Page 15 OPERATION To stop the engine: USING THE TRIGGER HANDLE See Figure 12. Put the on/off switch in the OFF ( O ) position. Turn the fuel valve to the CLOSED position. WARNING: NOTE: Shutting off the engine will not relieve pressure in the system.
- Page 16 OPERATION SELECTING THE RIGHT NOZZLE FOR THE JOB Do not allow the high pressure hose to be kinked. See Figure 13. Keep hose away from hot surfaces and sharp edges. Each of the nozzles has a different spray pattern. Before ...
-
Page 17: Maintenance
OPERATION NOTE: The rubber seal should remain inside the threaded Select the right nozzle for the job. See the chart shown earlier in the manual to select the appropriate nozzle. top. If it comes out, be sure to replace before reinstalling the top. - Page 18 MAINTENANCE To free any foreign materials clogging or restricting the NOTICE: nozzle, blow out or remove debris with a straightened paper clip or fine needle. Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, Using a garden hose, flush debris out of nozzle by back flushing (running the water through the nozzle backwards etc.
- Page 19 MAINTENANCE Tilt the pressure washer on its side as shown. Drain lu- Drain the fuel tank completely by running the pressure bricant into approved container. washer until the gas runs out. Stored gas can go stale in 30 days. NOTE: Drain the lubricant while the engine is still warm but not hot.
- Page 20 MAINTENANCE PERIODIC MAINTENANCE SCHEDULE Maintenance Items Before First Every 3 Every 6 Every Every Each month months months Year 2 years Perform at every indicated or 5 or 25 or 50 or 100 or 250 month or operating hour interval, hours hours hours...
-
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Engine fails to start No fuel in tank Fill tank Spark plug shorted or fouled Replace spark plug Spark plug is broken (cracked porcelain Replace spark plug or electrodes broken) Ignition lead wire shorted, broken, or Replace lead wire or attach to spark plug disconnected from spark plug Ignition inoperative... -
Page 22: Warranty
WARRANTY LIMITED NON-ENGINE WARRANTY STATEMENT OWT Industries, Inc., (the Company) warrants to the original retail purchaser that this PowerStroke Product is free from defects in material and workmanship and agrees to repair or replace, at the Company’s discretion, any defective Product free of charge within these time periods from the date of purchase: Two years, if the Product is used solely for personal, family, or household use;... - Page 23 2700 PSI PRESSURE WASHER PS80947J OPERATOR’S MANUAL CALIFORNIA PROPOSITION 65 SERVICE For parts or service, contact your service dealer. Be sure to provide all relevant WARNING: information when you call or visit. Please call 1-877-617-3501 for assistance. This product, its exhaust, and other...
