This user's guide describes the characteristics, operation, and use of the
TPS62350EVM-201 evaluation module (EVM). This EVM demonstrates the Texas
Instruments TPS62350 800-mA, 3-MHz, synchronous, step-down converter with I
interface. This document includes setup instructions, a schematic diagram, a bill of
materials, and PCB layout drawings for the evaluation module.
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
1
1
Introduction
1.1
Requirements
To operate this EVM properly, connect and properly configure the following components:
A personal computer (PC) with a USB port is required to operate this EVM. The TPS62350 interface
software runs on the PC and communicates with the EVM via the PC's USB port. Commands can be
sent to the internal registers of the TPS62350 through the USB port.
Personal Computer Requirements
• Windows™ 2000 or Windows™ XP operating system
Windows is a trademark of Microsoft Corporation.
2
I
C is a trademark of Philips Corporation.
VeriSign is a trademark of VeriSign, Inc..
SLVU177 - July 2006
Submit Documentation Feedback
..........................................................................................
.................................................................................................
............................................................................................
.........................................................................................
........................................................................................
.................................................................
List of Figures
..............................................................................
...................................................................................
..............................................................................
........................................................................................
.....................................................................................
................................................................................
............................................................................
...................................................................................
...................................................................................
.................................................................
List of Tables
........................................................................
TPS62350EVM-201
..........................................................
..........................................................
User's Guide
SLVU177 - July 2006
2
C
1
2
4
7
8
13
5
6
7
7
8
8
9
10
11
12
13
14
15
TPS62350EVM-201
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS62350EVM-201
Summary of Contents for Texas Instruments TPS62350EVM-201
-
Page 1: Table Of Contents

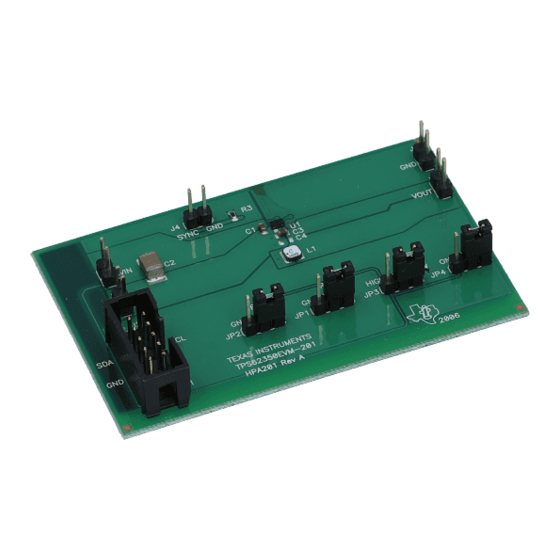

TPS62350EVM-201 This user’s guide describes the characteristics, operation, and use of the TPS62350EVM-201 evaluation module (EVM). This EVM demonstrates the Texas Instruments TPS62350 800-mA, 3-MHz, synchronous, step-down converter with I interface. This document includes setup instructions, a schematic diagram, a bill of materials, and PCB layout drawings for the evaluation module. -
Page 2: Setup
C protocol, and sends the I C signal to the TPS62350 EVM board Software Texas Instruments provides software to assist in evaluating this EVM. The software can be installed from the supplied CD or downloaded from the Texas Instruments Web site at www.ti.com. Setup This section describes the jumpers and connectors on the EVM as well as how to properly connect, set up, and use the TPS62350EVM-201. - Page 3 C master has its own pullup or operates from a voltage that is different than the input voltage of the TPS62350. The Texas Instruments USB interface adapter provides an active pullup; therefore, do not install a jumper when using the adapter supplied with the EVM.
-
Page 4: Operation
Controls, and Preferences. The software initializes with the EVM Configuration tab selected. This page can be used to set register values that correspond to the hardware configuration of the EVM. The EVM can be operated with the default values. TPS62350EVM-201 SLVU177 – July 2006 Submit Documentation Feedback... -
Page 5: Output Controls Tab
This can be used to avoid inadvertently selecting output voltages, in the output voltage pulldown boxes, that are too high for the application being tested. SLVU177 – July 2006 TPS62350EVM-201 Submit Documentation Feedback... -
Page 6: Preferences Tab
IC. The Write button must be pushed to update the register with the newly selected bit values. Each register display has its own Write button that only updates the register that is displayed next to it. The Write To All Registers button updates all four registers with one push. TPS62350EVM-201 SLVU177 – July 2006 Submit Documentation Feedback... -
Page 7: Test Results
Test Results Test Results This section provides typical performance waveforms for the TPS62350EVM-201 board. Enable 2 V/div Vin = 3.6 V Vout = 1.05 V Rload = 5 W Vout 0.5 V/div 50 s/div Figure 3. Start-up From Enable... -
Page 8: Board Layout
Figure 11 show the board layout for the TPS62350EVM-201 PCB. The nodes with high-switching frequencies and currents are kept as short as possible to minimize trace inductance. Careful attention has been given to the routing of high-frequency current loops and a single-point grounding scheme is used. See the data sheet for specific layout guidelines. -
Page 9: Assembly Layer
Board Layout Figure 7. Assembly Layer SLVU177 – July 2006 TPS62350EVM-201 Submit Documentation Feedback... -
Page 10: Top Layer Routing
Board Layout Figure 8. Top Layer Routing TPS62350EVM-201 SLVU177 – July 2006 Submit Documentation Feedback... -
Page 11: Bottom Layer Routing
Board Layout Figure 9. Bottom Layer Routing SLVU177 – July 2006 TPS62350EVM-201 Submit Documentation Feedback... -
Page 12: Layer 2 Routing
Board Layout Figure 10. Layer 2 Routing TPS62350EVM-201 SLVU177 – July 2006 Submit Documentation Feedback... -
Page 13: Schematic And Bill Of Materials
Schematic and Bill of Materials Figure 11. Layer 3 Routing Schematic and Bill of Materials This section provides the TPS62350EVM-201 schematic and bill of materials. SLVU177 – July 2006 TPS62350EVM-201 Submit Documentation Feedback... -
Page 14: Tps62350Evm-201 Schematic
Schematic and Bill of Materials Schematic Figure 12. TPS62350EVM-201 Schematic TPS62350EVM-201 SLVU177 – July 2006 Submit Documentation Feedback... -
Page 15: Hpa201A Bill Of Materials
PCB, 3.05 In × 1.85 In × 0.062 In – HPA201 Shunt, 100 mil, Black 0.100 929950-00 Related Documentation From Texas Instruments TPS62350, TPS62351 800-mA, 3-MHz Synchronous Step-Down Converter With I C ™Compatible Interface in Chip Scale Packaging data sheet (SLVS540) SLVU177 – July 2006 TPS62350EVM-201... - Page 16 EVALUATION BOARD/KIT IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards.
