WJ-NU101K Series, WJ-NU201K Series
Model No.
WJ-NU300K Series, WJ-NU301K Series

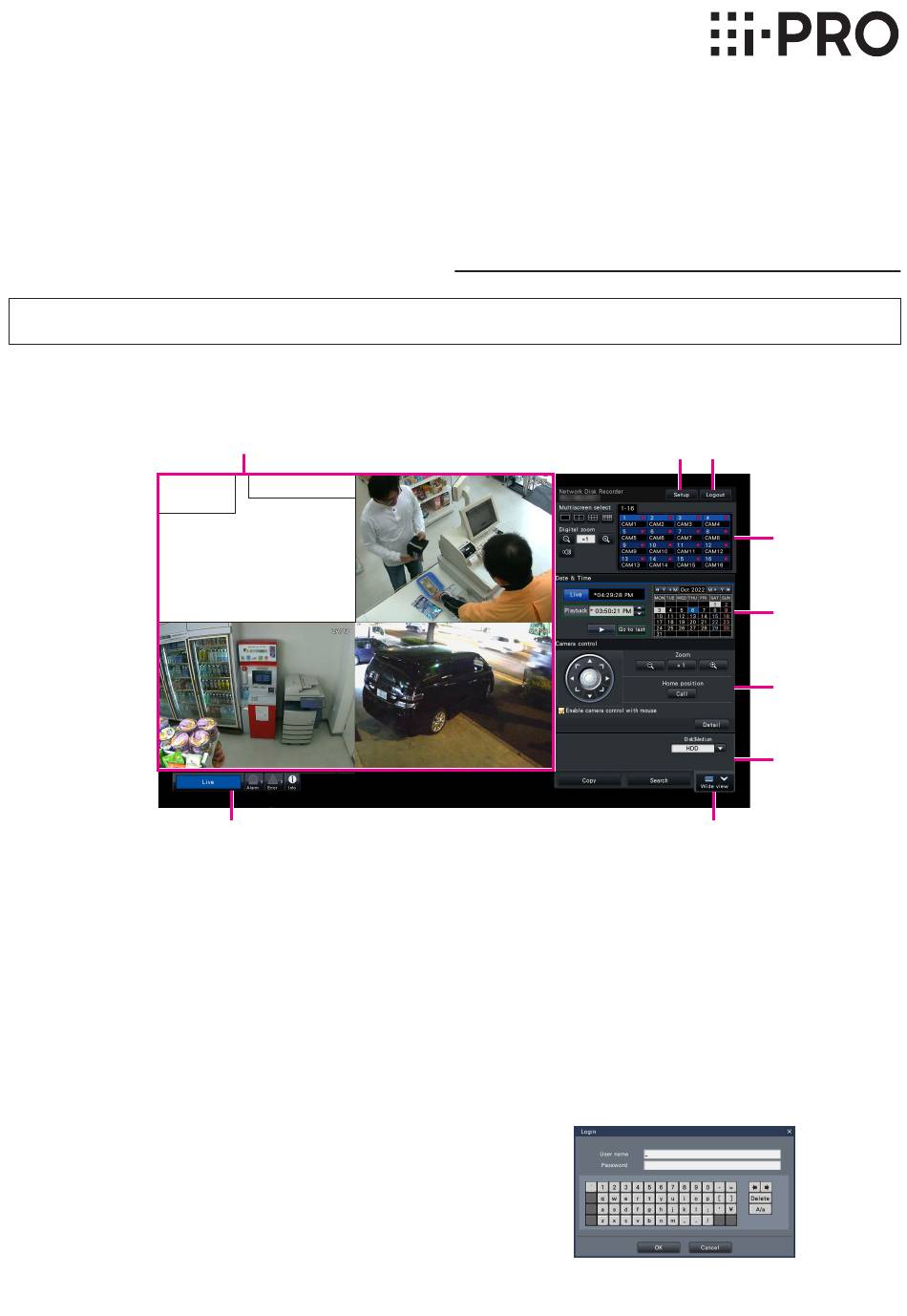

The descriptions and screens in this manual are based on WJ-NU301K Series as an example.
The recorder is operated with the mouse (accessory) connected to either the front or rear of the recorder. To perform operations, either click
buttons on the operation window displayed on the main monitor or turn the mouse wheel.
Date & time
display
① [Setup] button
Displays the setup menu. The login window will be displayed
for users who are not authorized to perform the operation.
② [Logout] button
It is possible to log out from the recorder from this menu. To
prevent operation by unauthorized persons, it is recommended
to log out before leaving the recorder unattended.
③ Operation panel
☞
④ Date & time operation panel
"Play image recorded at a designated date & time"
☞
⑤ Camera control panel
Contains the buttons for operating cameras with the panning/
tilting function. These allow panning/tilting and zooming of the
camera, moving the camera to a preset position, and adjusting
the focus and brightness.
⑥ Playback operation panel (While live images are being
displayed)
Select the HDD of the recorder or the storage media from which
to play back copied image data. This panel is also used to per-
form playback of images. (
Perform Basic Operations on the Screen
Image display area
Camera title
<Image of Camera 1>
⑧
☞
Network Disk Recorder
Quick Reference Guide
⑦ [Wide view] button
Camera images will be displayed in wide view on a multiscreen.
While images are being displayed on a full screen, ⑦ will be
changed to the [Ctrl screen] button. For camera operations,
click the [Ctrl screen] button to return to this screen.
⑧ Status display panel
☞
☞
"When an alarm or error occurs"
How to log in
During logout, ② becomes the [Login] button. When the login win-
dow is displayed, enter the user name and password.
①
②
③
④
⑤
⑥
⑦
1
Advertisement
Table of Contents
Related Manuals for i-PRO WJ-NU201K Series
Summary of Contents for i-PRO WJ-NU201K Series
- Page 1 Network Disk Recorder WJ-NU101K Series, WJ-NU201K Series Model No. WJ-NU300K Series, WJ-NU301K Series Quick Reference Guide Perform Basic Operations on the Screen The descriptions and screens in this manual are based on WJ-NU301K Series as an example. The recorder is operated with the mouse (accessory) connected to either the front or rear of the recorder. To perform operations, either click buttons on the operation window displayed on the main monitor or turn the mouse wheel.
- Page 2 Select a camera and switch images Select a camera and display live images Camera number panel Select a tab containing a camera number that you want to select and then click the camera number panel. While displaying on a multiscreen, double-clicking the image in the image display area will switch to display of the clicked camera images on a 1-screen.
- Page 3 [Alarm] button [Error] button Play images selected from logs Click the [Alarm] button or [Error] button on the status display panel. Click the [Log] button. Select the line with the desired date & time by clicking it, and click the [Play] button on the playback operation panel. <When an error (alarm) has occurred>...
- Page 4 When an alarm or error occurs When an alarm or an error occurs, the recorder performs alarm or error actions in accordance with the previously made settings. Cancel the alarm/error action When an alarm or error occurs, click the [Alarm] button or [Error] button on the status display panel.
