Designated use of the machine The SR300 Wheel Rake must only be used for the work for which it has been designed: raking on the ground and forming windrows of pre-mowed fodder and straw. Copyright 2019 KUHN 1.
Wheel Rake SR300 2. Contents Dear Owner ........................1 Contents ..........................2 Identification of the machine..................4 Front view ............................4 Rear view ............................4 Identification of the machine ......................5 3.3.1 Location of the plates ......................5 3.3.2 Description.......................... 5 Optional equipment.......................... 6 Safety..........................7...
Page 5
Wheel Rake SR300 Instructions for work ....................31 Place the machine in working position ..................31 Setting windrow width ........................32 Changing the working width......................33 Adjusting rake wheel ground pressure ..................34 Adjusting front or rear rake wheels ....................35 Adjusting hydraulic hose length .....................
Do not remove the manufacturer, homologation and marking plates attached to the machine. 3.3.1 Location of the plates Note the serial number of your machine: • Serial Number: This information is to be given to the Kuhn authorized dealer for any spare parts order or warranty claim. 3.3.2 Description ...
Wheel Rake SR300 Optional equipment Check the boxes corresponding to the equipment fitted on your machine: Kit no. 18967787: Tandem axle Kit no. 18967491: Windguard Kit no. 18967789: Center splitter wheel Kit no. 18967792: One side raking ...
Wheel Rake SR300 4. Safety Description of symbols used in this document This symbol indicates a potentially hazardous situation that if not avoided, could result in serious bodily injury. This symbol is used to identify special instructions or procedures which, if not followed strictly, could result in machinery damage.
Never let anyone operate the machine who is not trained to do so. Should you have any difficulties in understanding any parts of this manual, please contact your KUHN dealer. Safety shutdown procedure Before adjusting, maintaining or repairing the...
Page 11
Wheel Rake SR300 Precautions to take before using the machine Do not wear loose clothing which could become caught up in moving parts. Wear appropriate protective clothing (gloves, shoes, goggles, hearing protection, etc.). Ensure that all operating controls (ropes, cables, rods, etc) are placed so as they cannot be operated unintentionally and cause damage or injury.
Page 12
Wheel Rake SR300 Precautions when driving on public roads Dimensions Depending on the dimensions of the machine, contact the relevant authorities to ensure that it can be legally transported on public roads. If the machine is over the maximum legal size, follow the applicable regulations for special transportation of oversize equipment.
Page 13
Wheel Rake SR300 Precautions when coupling Before attaching the machine, make sure that it cannot accidentally start moving (chock the wheels) and that the parking stand is in the right position. The machine must only be attached to the hitch points provided for this purpose.
Page 14
Wheel Rake SR300 PTO shaft Use only PTO shafts supplied with the machine or recommended by the machine manufacturer. The protective shield of the tractor PTO stub, the PTO shaft guards and the protective shield of the machine input shaft must always be in place and in good condition.
Page 15
To do this, use the tool outfit supplied with the machine. For your safety, only use genuine KUHN parts ! Regularly check the condition of the protection covers. Immediately replace any worn, damaged, or missing cover.
Page 16
Also disconnect alternator and battery terminals. It is strongly recommended to have your machine checked by your Kuhn dealer after each season, especially tools and their attaching hardware. 4. - Safety 7N021EUS_A...
Page 17
Wheel Rake SR300 Projection of stones and foreign objects For driver safety, always use a tractor equipped with a cab. Keep the ground to mow free of foreign bodies. Avoid mowing on stony or rocky grounds. If this is not possible, take extra safety precautions,...
Wheel Rake SR300 Location and description of safety decals on the machine Location of safety decals mile/h 4. - Safety 7N021EUS_A...
Page 19
Wheel Rake SR300 Description of safety decals WARNING Operating instructions (1) The operators' manual contains all the information necessary for using the machine safely. It is imperative to read and comply with all instructions. WARNING Crushing Hazard (2) WARNING Pinch hazard (3)
Page 20
The part numbers for the decals are located in the lower right corner of the decal. Replacement decals may be ordered through your dealer or Kuhn. When replacing decals, be sure the surface is clean and dry. Peel the backing off the decal and apply to the machine.
Road safety equipment and recommendations The road safety equipment is mounted in the factory or by your authorized Kuhn dealer according to current safety regulations. Always keep to the legal speed limit for driving a tractor-machine assembly on public roads.
Wheel Rake SR300 4.4.1 Transport lock When transporting the rake on public roads, always lock the rake arms and rake wheels in the transport position with the transport lock valves. The valves are installed at the end of the hydraulics where the rake couples with the tractor.

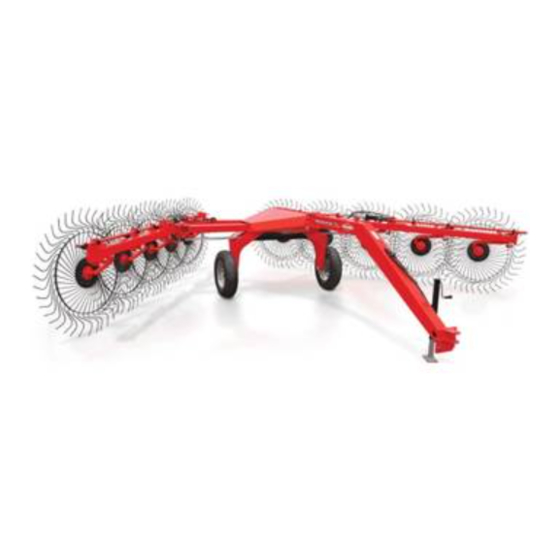

Wheel Rake SR300 5. Machine specifications Description and glossary Clevis Right rake wheel Left rake arm Jack Left rake wheel Tongue Wheel and tire Rake arm beam Windguard Main frame Right rake arm 5. - Machine specifications 7N021EUS_A...
Wheel Rake SR300 Technical specifications Model SR310 SR312 A - Maximum working width 20’-10" / 6.3 m 24’-2" / 7.4 m B - Minimum windrow width 3’-0" / 0.9 m 3’-0" / 0.9 m Maximum windrow width 6’-0" / 1.8 m 6’-0"...
Wheel Rake SR300 6. Putting into service Coupling and uncoupling The minimum tractor weight should be no less than 2/3 of machine gross weight. 6.1.1 Machine requirements Recommended minimum tractor weight: Model Machine weight Tractor weight up to 20 mph (32km/h)
Wheel Rake SR300 6.1.3 Coupling the machine Adjust machine height It is very important that the machine height is adjusted properly so the machine is parallel with the ground. - Adjust bolts (1), 2 on clevis and 4 on ball hitch, in the five sets of holes so the rake arm beams (2) are parallel with the ground (3).
Wheel Rake SR300 Ball hitch - Remove pin (1). - Slide collar back (2) as shown until the hinged ball head (3) pops open. - Maneuver ball from tractor drawbar into the ball head, snap it closed, push collar back into place, and replace pin.
The safety tow chain must be replaced if any one link is broken, stretched, or otherwise damaged or deformed. Safety chains are sold separately. Contact your Kuhn dealer to purchase a safety chain for your specific machine. 6. - Putting into service 7N021EUS_A...
Wheel Rake SR300 6.1.6 Hydraulic connection Remove connector dust caps and connect hydraulic hoses to tractor. The hydraulic hoses for controlling the rake arm position will be marked with blue bands. - Activating hydraulic pressure to the hose with the 2 blue bands will unfold the rake arms.
Wheel Rake SR300 6.1.7 Uncoupling the machine Before adjusting, maintaining or repairing the machine, perform the safety shutdown procedure. Park the machine on fairly level ground. Preferably park the machine in transport position. - Position chocks underneath the machine wheels.
Wheel Rake SR300 7. Instructions for transport Place the machine in transport position Before placing the machine into transport position: - Wait until the rotating parts have come to a complete stop. - Check that nobody is located in the machine pivoting area.
Page 32
Wheel Rake SR300 Conformity with the road regulations Before driving the machine on public roads, ensure that the machine complies with current highway code regulations. Check that the reflectors are clean and that the lighting equipment is working properly before transporting on public roads.
Wheel Rake SR300 8. Instructions for work Place the machine in working position Before placing the machine in working position: - Check that nobody is within the machine pivoting area. - If there is someone, make sure the person moves away.
Wheel Rake SR300 Setting windrow width The rear rake arm angle can be adjusted to increase or decrease the windrow width. - With the rake arms positioned at the desired working angle, raise the rake wheels to the transport position.
Wheel Rake SR300 Changing the working width Before placing the machine in working position: - Check that nobody is within the machine pivoting area. - If there is someone, make sure the person moves away. To set the rake at maximum working width (A), fold the arms outward until they stop.
Wheel Rake SR300 Adjusting rake wheel ground pressure Before adjusting, maintaining or repairing the machine, perform the safety shutdown procedure. From the working position: - Remove clip (1). - Retrieve the wrench (3) supplied with the machine and turn the adjustment rod (2) to adjust ground pressure.
Wheel Rake SR300 Adjusting front or rear rake wheels The front and rear raking wheels on each side of the rake are designed to be locked up if necessary. Front raking wheels can be locked up when it is desirable to rake less hay into the windrow in conditions where a more open, or flatter, raking angle is preferred.
Wheel Rake SR300 Setting the machine to one way raking/windrow turning position Before placing the machine in one way raking/windrow turning position: - Check that nobody is within the machine pivoting area. - If there is someone, make sure the person moves away.
Wheel Rake SR300 9. Optional equipment Tandem axle Kit no. 18967787 In applications where fields are especially rough and uneven, an off-set tandem axle is available for the rear wheels to provide smoother operation. The off-set tandem axle also provides lower ground compaction.
Wheel Rake SR300 Center splitter wheel Kit no. 18967789 The center splitter wheel is used to fluff the center part of the windrow. It can be used when raking multiple windrows together or after mowers or tedders have been used.
Wheel Rake SR300 9.3.2 Adjusting splitter wheel angle For heavier crops, the splitter wheel angle can be reduced by turning in the clevis on the cylinder rod. The threaded portion of the rod should not extend more than 1’’ (2.5cm) past the bottom of the clevis (A).
Wheel Rake SR300 One side raking Kit no. 18967792 This option includes the hydraulic hose, fittings, valves, and hardware for one side raking or windrow turning ability. See "Instructions for work" section. 9. - Optional equipment 7N021EUS_A...
Wheel Rake SR300 Transport light kit Kit no. 18978484 The light and signalling kit provides increased safety during transport on public roads. Most tractor lights will be visible during transport of this equipment. However, if the tractor lights are obscured, then the optional light kit should be ordered and used during transport on public roads.
Page 44
Wheel Rake SR300 Connectors Right Left A connector B connector C connector Pin # Wire color Wire color Wire color White White White Yellow Yellow/green Yellow/green Brown Brown/black Brown/black Green Black 9. - Optional equipment 7N021EUS_A...
Page 45
Wheel Rake SR300 Module Right Left SAE terminal Right terminal Left terminal Pin # Wire color Wire color Wire color White White White Yellow Green Yellow Brown Brown Brown Green White 9. - Optional equipment 7N021EUS_A...
Wheel Rake SR300 Wheel extension kit Kit no. 18967785 Additional raking wheels can be added to the main rake arms to increase working width. The kit includes two rake wheel extensions, one for each side, and a tongue extension. Shut-off lock valves Kit no.
Wheel Rake SR300 Safety chain The safety chain is intended to keep the machine under control in the event of a loss or failure of the hitch pin. 9’’ Kit no. 83080001 A safety chain must be used when transporting the rake on public roadways.
Wheel Rake SR300 10. Maintenance and storage 10.1 Lubrication Before adjusting, maintaining or repairing the machine, perform the safety shutdown procedure. Use Molybdenum HD grease. Clean zerks before greasing. Every 25 hours Every 50 hours - Grease frame pivots (1). (6 places) - Grease transport wheel hubs (4) - Grease wheel mount pivots (2).
Wheel Rake SR300 10.2 Maintenance After the first 10 hours of use - Check tightness of all bolts and nuts on rake assembly, particularly on rake wheels. - Check the center retaining clips on the rake wheels for tightness and adjust as necessary.
- Replace any damaged or missing safety decals. - Replace all parts that are worn or damaged with KUHN original parts. At the start of each season - Re-read the operators' manual.
KUHN dealer and request warranty service within the applicable warranty period; (2) present evidence of the warranty start date with valid proof of purchase; and (3) make the Equipment available to the authorized KUHN dealer within a reasonable time for repair.
Page 53
(including, but not limited to, a tractor or truck), loss of earnings due to Equipment down time, or damage to Equipment while in transit to or from a KUHN facility or authorized KUHN dealer; (7) defects due in part or in whole from specifications, instructions, designs or drawings provided by or for Purchaser;...
Page 56
KUHN S.A. - B.P. 50060 - F - 67706 SAVERNE CEDEX (FRANCE) KUHN-AUDUREAU SAS - B.P. 19 - F - 85260 LA COPECHAGNIERE (FRANCE) KUHN-BLANCHARD SAS - 24, route de Nantes - F - 44680 CHEMERE (FRANCE) KUHN-HUARD SAS - B.P. 49 - F - 44142 CHATEAUBRIANT CEDEX (FRANCE) KUHN-GELDROP B.V.
