ASSEMBLY / OPERATOR'S
MANUAL
FC 240 P - FC 280 P
Mower conditioner
PLEASE READ CAREFULLY
BEFORE USING THE MACHINE
N° 95100 B.GB - 02.98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC 240 P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KUHN FC 240 P

Summary of Contents for KUHN FC 240 P

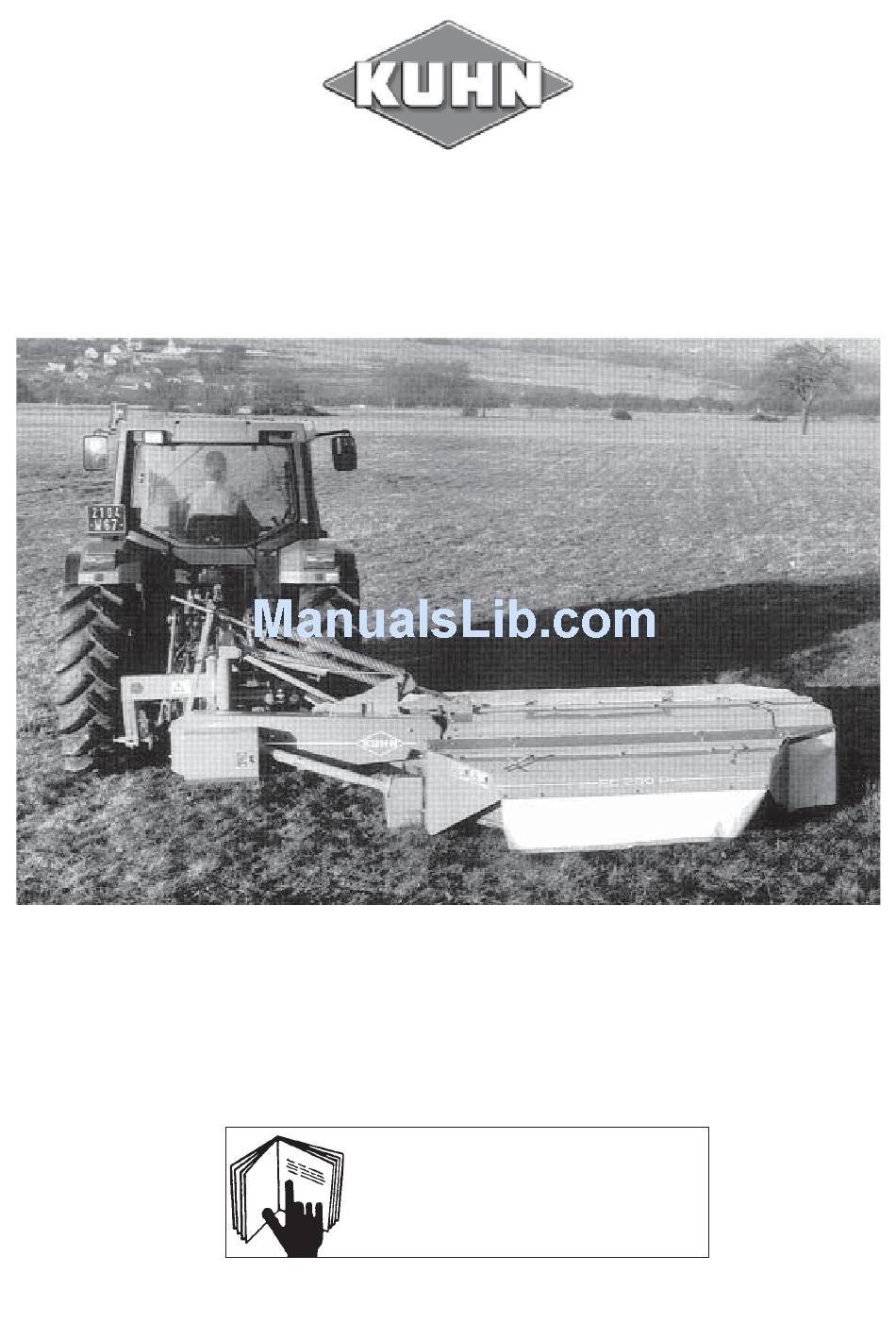

  • Page 1 ASSEMBLY / OPERATOR'S MANUAL FC 240 P - FC 280 P Mower conditioner PLEASE READ CAREFULLY BEFORE USING THE MACHINE N° 95100 B.GB - 02.98...
  • Page 2 DEAR OWNER, In buying a KUHN machine you have chosen wisely. Into it have gone years of thought, research and improvements. You will find, as have thousands of owners all over the world, that you have the best that engineering skill and actual field testing can produce. You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into it.

  • Page 3: Table Of Contents

    CONTENTS Page Contents Safety Safety decals Technical specifications Handling and unpalleting Assembly instructions General information Adapting to the tractor P.T.O. shaft Transport Working position Adjustments Safety breakaway Parking the machine Operating the mower conditioner Lubrication Maintenance Inspection of knives & securing elements Optional accessories Trouble shooting guide Storing the mower conditioner...

  • Page 4: Safety

    SAFETY The above symbol is used throughout this manual every time recommendations are made concerning your safety, the safety of others, or the good operation of the machine. These recommendations must be made known to all machine operators. DESIGNATED USE OF THE MACHINE Mower Conditioners must only be used for the work which they have been designed : mowing on the ground of hay fields, grass silage fields and improved pastures for the purpose of harvesting fodder for feeding livestock.
  • Page 5 1. In addition to the recommendations given in this manual, legislation on work safety and accident prevention must also be respected. 2. Advice is indicated on the machine, specifying safety recommendations in order to prevent accidents. 3. Before travelling on public roads, the operator must ensure that the machine conforms to road traffic regulations. 4.
  • Page 6 20. Be particularly cautious when turning corners, paying attention to machine overhang, length, height and weight. 21. Before operating the machine, ensure that all safety guards are firmly in place and in good condition. If worn or damaged, replace immediately. 22.
  • Page 7 5. If a primary PTO shaft is equipped with a slip clutch or a free wheel, these must be fitted on the machine PTO. 6. Ensure that PTO shaft is always correctly fitted and locked into place. 7. Make sure guards are correctly in place and secured with the safety chains provided. 8.
  • Page 8 4. Each time before using the mower conditioner, inspect condition of cutting elements (knives, discs). Replace any missing, worn or damaged cutting elements immediately. Use only genuine KUHN spare parts. 5. To avoid creating dangerous out of balance forces, always replace missing, damaged or worn knives in pairs.
  • Page 9 9. Crushing and shearing zones which could cause serious bodily injury when changing the machine from transport to work position and vice versa may exist. To prevent possible injury, be extra careful when maneuvering and ensure that everyone is at a safe distance away from the machine. PTO drive to the mower conditioner must never be engaged unless the cutterbar skid shoes are in contact with the ground and the protective cover is folded down.

  • Page 10: Safety Decals

    SAFETY DECALS THE FOLLOWING SAFETY PICTORIALS HAVE BEEN PLACED ON YOUR MACHINE IN THE AREAS INDICATED. THEY ARE INTENDED FOR YOUR PERSONAL SAFETY AND FOR THE SAFETY OF THE PEOPLE WORKING WITH YOU. THE TEXT SHOWN ON THEM GIVES THEIR PRECISE MEANING. ENSURE THAT THESE PICTORIALS ARE ALWAYS LEGIBLE.
  • Page 11 - 9 -...

  • Page 12: Technical Specifications

    TECHNICAL SPECIFICATIONS TYPE FC 240 P FC 280 P Number of discs Width of cut 2.40 m / 7' 10" 2.80 m / 9' 2" Width in transport position (1) 0.35 m (13' 7 ") wider than tractor width Disc speed...

  • Page 13: Handling And Unpalleting

    ASSEMBLY INSTRUCTIONS A) HANDLING To facilitate shipping, certain are secured on a wooden pallet. This pallet is designed to be handled by a fork lift truck or a tractor fitted with a front end loader having forks and with a minimal lift capacity of from the heel of the forks ( Weight of packed machine : :...
  • Page 14 B) INSTRUCTIONS FOR UNPALLETING 1.0. Use of a crane or hoist with a minimum lift capacity of Overall weight of the packed machine : 1.1. Place the pallet on flat, horizontal ground 1.2. Take off the protective cover and remove all (photo D).
  • Page 15 : If textile slings as pictured are not available, use only slings with a sufficient capacity and that are also well protected against sharp edges. Never make slipknots with chain type slings. 1.4. Keep all people clear from the zone of the load. Lift 1.5.
  • Page 16 2.0. Use of a fork lift truck or a tractor equipped with a front end loader : Length of the forks should and the lift capacity of the machine should be at least at a distance of away from the heel of the forks. Overall weight of the packed machine : 2.1.
  • Page 17 2.5. Slowly lower the forks while progressively 2.6. Remove the tension hoops taking the usual reversing the truck loader (photo O). precautions (beware of lash) to unfasten the machine from the pallet (photo P). Before beginning assembly, remove the maintaining brace (A) linking the 3-point frame to the hooding (photo - 15 -...

  • Page 18: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1° Assembling the pivoting cylinder and the safety breakaway (photo 1) Fix the pivoting cylinder (1) onto the frame (2) using pin (3) and 2 roll pins (4) (diameter 6 x 40). Insert the cylinder guard (5) plain washer (6) (diameter 30.5 x 50 x 2) between the upper roll pin (4) and the mounting yoke (see photo 1).
  • Page 19 4° Assembling the lifting cylinder and compensating spring (photo 4) Attach the cylinder connecting rod (20) to the lift bracket (21) using pin (22) and 2 roll pins (diameter 6 x 40). Fix the compensating spring (23) on the safety guard frame (24) with pin (25) and 2 roll pins (diameter 6 x 40) (photo 4) and the...
  • Page 20 6° Assembling the power band belt, rear belt shield and input shaft guard Install the power band belt (38) on the pulleys (photo 7) and tension (see specific instructions on page 39). Fix the rear belt guard (39) using 2 self locking screws (40) (M 8 x 12) and 2 clamp nuts (M 8) on one part and 3 self locking nuts (41) and 3 lock washers (diameter 12.4 x 27 x 1.8) on the other part (photo 8).
  • Page 21 8° Fitting the secondary PTO trans- mission shaft Connect the secondary PTO transmission shaft (46) to the conditioning rotor input shaft and fix the protection cover (47) on the flange (48) using a clamp collar (49) (photo 10). : Position the cover (47) so that the opening (50) for greasing the U-joint is pointing upwards (photo 10).
  • Page 22 10° Assembling safety curtain and front guard - Pre-assemble the safety curtain (1). To do this loosely fasten rod (3) with the straps (2) (photo 13). - Spread out safety curtain and arrange in correct position. Attach straps located at (5) around the guard tube (photos 13 and 14).
  • Page 23 (photo 16). - Attach front and side curtains to one another with 2 straps (15) (photo 14). - Attach springs to their respective anchorage points with the small chains (16 and 17) (photos 13, 16 and fig. 15) and 11° Attaching swath shields Attach both swath shields (18) with axles (19), plain washers (20) (dia.

  • Page 24: General Information

    GENERAL INFORMATION 1. Minimum tractor engine power used should be 51 kW / 70 hp for the and 60 kW / 80 hp for the . If tractor power is insufficient, quality of work will be unsatisfactory. mower conditioner can be adapted to all tractors having a and equipped with a normalized Cat.

  • Page 25: Adapting To The Tractor

    ADAPTING TO TRACTOR A) Attachment of lower links and positioning of hitch pins : for category 2 tractors with narrow wheel tracks. for category 2 tractors with standard wheel tracks. for category 2 tractors with wide wheel tracks. : Always attach machine in such a way that distance is approximately - 23 -...
  • Page 26 B) Attaching the machine - Attach the lower links (A) to the hitch pins and secure with linchpins (photo E). - Connect hydraulic hose (H) to the tractor’s (photo E). First make sure that the hydraulic connection is clean ; if not, cylinders may not function correctly.

  • Page 27: P.t.o. Shaft

    P.T.O. SHAFT Proceed as follows to when coupling the machine to a tractor for the first time and when using another tractor. 1° the PTO shaft and the two half transmission tubes. 2° Raise the cutting / conditioning unit to its I (photo 21).

  • Page 28: Transport

    Never operate the PTO shafts at too great an angle (X = 25° maximum) (fig. M). TRANSPORT To transport the machine on public roads or from one field to another, proceed as follows : - Make sure discs and rotor have come to a complete stop. - Lift the machine using the tractor 3-point linkage - Pressurize the hydraulic cylinders to lift the cutting conditioning unit into its vertical position.

  • Page 29: Working Position

    WORKING POSITION AND ADJUSTMENTS 1) Pressurize hydraulic cylinders and pull cord (A) to free lock (I) (photo 21). 2) Lower cutting conditioning unit into the work posi- tion by releasing the hydraulic pressure. As soon as the cutting conditioning unit starts to pivot, release pressure on the cord (A).
  • Page 30 Adjustment of chassis height from the ground : : set lower link height so that roll pin (F) is exactly centered in its aperture (H) (photo 23). This gives height E = 400 mm approximately (photo 22), which corresponds to a cutting height of 30 mm.

  • Page 31: Adjustments

    ADJUSTMENTS Cutting height Maximum cutting height (80 mm / 3") (fig. 26) is achieved when the discs are parallel to the ground. Adjustment of cutting height is achieved by altering the cutterbar tilt angle. This is effected by varying top link length (P) (photo 25) until desired cutting height is achieved.
  • Page 32 Swath screens Desired swath width is obtained by adjusting swath screens (T) (figure 30). Swath screens are locked in position by means of 2 handles (M) (figure 30). Adjustment of compensating spring tension The compensating spring or system is factory adjusted so that dimension (X) (photo 32) is: - 25 mm (1") for the - 55 mm (2 1/6") for the...

  • Page 33: Safety Breakaway

    SAFETY BREAKAWAY A breakaway latch allows the cutting conditioning unit to swing back if an obstruction is hit (photo 33). IF THE LATCH RELEASES, STOP THE TRACTOR IMMEDIATELY AND DISENGAGE THE PTO. To reset the cutterbar, back up the mower conditioner until the cutterbar is in its normal position.

  • Page 34: Parking The Machine

    PARKING THE MACHINE 1° 2° Take out pin (L) which links the stand (E) to the suspension rod (F) (photo 36). Lower and lock the stand (E) with pin (L) in its support (R) (photo 37). 3° 4° With the hydraulic 3-point lift, lower the machine to the ground and disconnect the top link and the hydraulic hose.

  • Page 35: Operating The Mower Conditioner

    OPERATING THE MOWER CONDITIONER GENERAL Before engaging the machine into the grass, lower the cutting conditioning unit to the ground and bring the PTO shaft up to its nominal speed Do not allow the PTO to drop to too low a speed as this would reduce cutting quality and cause rotor plugging. If this should occur, immediately disconnect the PTO, stop the tractor engine and remove the ignition key.
  • Page 36 FC 280 P FC 240 P MANEUVERING ON FIELD EDGES AND MOWING EMBANKMENTS when maneuvering on field edges. When mowing embankments, make sure there is (see photo 41) between cutting conditioning unit (G) and frame (E). ADVERSE FIELD CONDITIONS Extra care and precautions should be taken in rough or debris-ridden fields. The following adjustments should be made to the mower conditioner in these conditions to minimize the possibility of foreign objects being deflected by the cutting knives.

  • Page 37: Lubrication

    SAFETY CLUTCH WITH SHEAR BOLT If during work the conditioning rotor stops rotating but the discs are still driven, disengage the P.T.O., stop the tractor engine, remove ignition key and wait for all rotating parts to stop before leaving the tractor. Remove the 2 broken parts of the shear bolt and replace it by a new bolt (V) (part no.
  • Page 38 CHECKING OIL IN THE CUTTERBAR (fig. 43 and 43 A) Cutterbar oil level can be checked by measuring oil level through both filler plugs (21) when the cutterbar is perfectly horizontal lengthways and crosswise (X and Use a spirit level to ascertain that this is the case. Correct oil level is 6 to 7 mm (1/4") at both filler plugs (21) (fig.
  • Page 39 CHANGING GEARBOX OIL Check gearbox oil level daily. Top up with SAE 80 W EP (GL4) oil if necessary by filling up through plug (B) (photo 44). Check oil level through plug (C) (photo 44) when the cutterbar is horizontal to the ground. Oil level is correct when the oil reaches the edge of the hole.
  • Page 40 P.T.O. SHAFTS Lubricate all PTO shafts with SHELL Multi-Purpose grease NLGI grade 2 at the hourly intervals indicated in fig. opposite. To reach the U-joint grease fitting (rotor side) of the secondary PTO shaft, disconnect the PTO shaft on the gearcase side and tilt down the PTO shaft to gain access to the lubricating hole located in the protection cover (photo 46).

  • Page 41: Maintenance

    MAINTENANCE BELT Belt must be properly tensioned at all times to prevent excessive slipping and flopping. A loose belt will cause poor cutting and premature failures. Check powerband tension as follows : - Remove belt guard. - Unlock counter-nut (E) (photo 47) and loosen belt (C) (photo 48).
  • Page 42 Discs, knives and securing elements are manufactured from high quality steel and have been subjected to a heat- treatment to assure a high resistance to wear. Worn or damaged items must immediately be replaced with genuine KUHN parts as otherwise warranty will be withdrawn.
  • Page 43 Make sure cone lids (14 - 15) are properly secured in place (photos 51 and 51 A). Tightening torque of bolts (V) is ROTOR CONDITIONING FLANGES When replacing rotor conditioning fingers (16), make sure fixing plates (17) are positioned correctly and bolts (18) are tightened to (60 ft.lbs) (photo 52).

  • Page 44: Inspection Of Knives & Securing Elements

    INSPECTION OF KNIVES AND SECURING ELEMENTS A. KNIVES Cutting quality as well as safe operation depend on the regular inspection and care given to the knives. Knives should be replaced in the following cases : 1. Damaged knives Very rough conditions can cause knives to crack and become deformed leading to : - increased risk of accidents ;...
  • Page 45 - When a visible deformation is found. - When the locking compound on the threads has worn away or if the locking compound has become inoperational due to infiltration of water, oil or dirt. - When wear on the head reaches the contact area of the knife.

  • Page 46: Optional Accessories

    3. SIGNALLING ELEMENTS (photo 55) Kit No. 107 6030 Signalling elements can be ordered as an optional extra for the FC 240 P and FC 280 P. To install this kit proceed as follows : - Attach tail lamp (N) to panel (A).
  • Page 47 Attach guard (U) to the outside end of the safety canvas frame using the 2 cup square bolts (E) (M 10 x 35) already mounted (photo 56). 5. 1.20 m / 4' SWATH KIT (for FC 240 P only) (fig. 57) Code n° 107 6090 This equipment enables swaths of 1.20 m width to be...

  • Page 48: Trouble Shooting Guide

    Obstruction of conditioning Insufficient PTO speed Increase PTO speed to rotor 1000 rpm for the FC 280 P or to 540 rpm for the FC 240 P Shear bolt broke Replace shear bolt (see page 35) Badly shaped windrows Insufficient PTO speed...

  • Page 49: Storing The Mower Conditioner

    PROBLEM CAUSE REMEDY Machine does not lower The hydraulic hose coupler Replace coupler into its work position connecting the machine to the tractor is worn Vibrations of main rotor Incorrect attachment Check : gearcase - that the turn buckle and the lower arms are approx.
  • Page 50 SOUND LEVELS Sound levels given out by : FC 240 P - FC 280 P Mower conditioners Sound levels have been measured in accordance with the measuring methods as defined in : HM Agricultural Inspectorate AGRICULTURAL MACHINERY NOISE Legislation and guidance on methods of testing...

  • Page 51: Limited Warranty

    Normal maintenance such as greasing, maintenance of oil levels, minor adjustments, etc. Transportation of any kind of any KUHN product to and from the place the warranty work is performed. Dealer travel time to and from the machine or to deliver and return the machine from the workshop for repair.
  • Page 52 Company and have no right or authority to assume any obligation on their behalf, express implied, or to bind them in any way. KUHN S.A. reserves the right to incorporate any change in design in its products without obligation to make such changes on units previously manufactured.
  • Page 53 - N O T E S -...
  • Page 55 This machine complies with the safety requirements of the European machinery directive. The Operator should respect all Health and Safety regulations as well as the Highway Code. For your own safety, use only genuine KUHN spare parts. The manufacturer disclaims all responsibilities due to incorrect use or non-compliance with the...
  • Page 56 For your safety and to get the best from your machine, use only genuine KUHN parts (FRANCE) Société Anonyme au Capital de 19 488 000 Euros Printed in France by KUHN...
