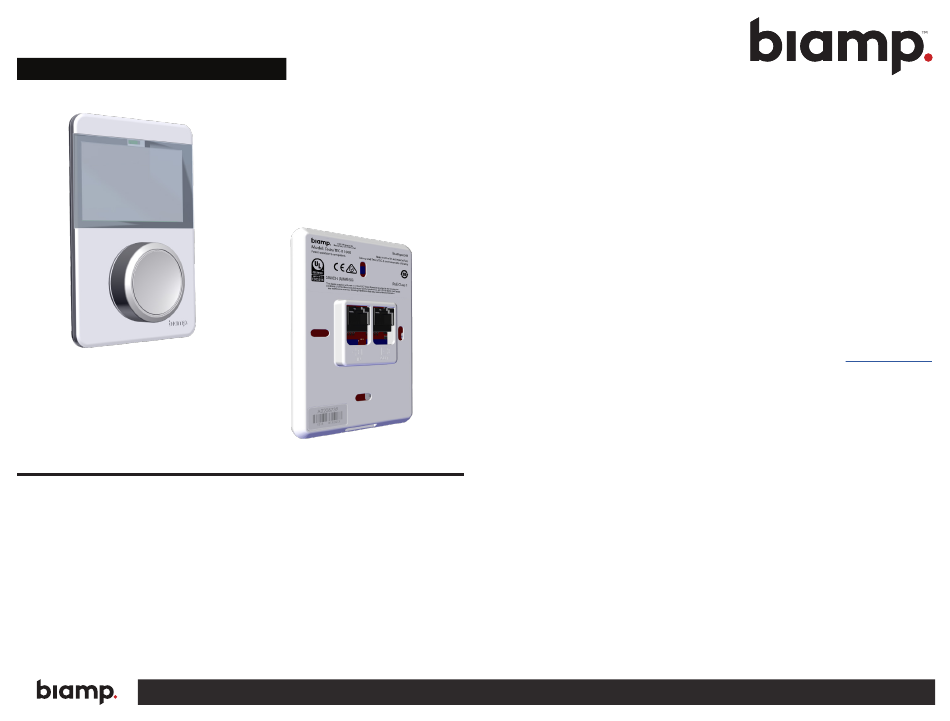

TEC-X 1000
Wall Control Panel
Installation & Operation Guide
PRODUCT DESCRIPTION

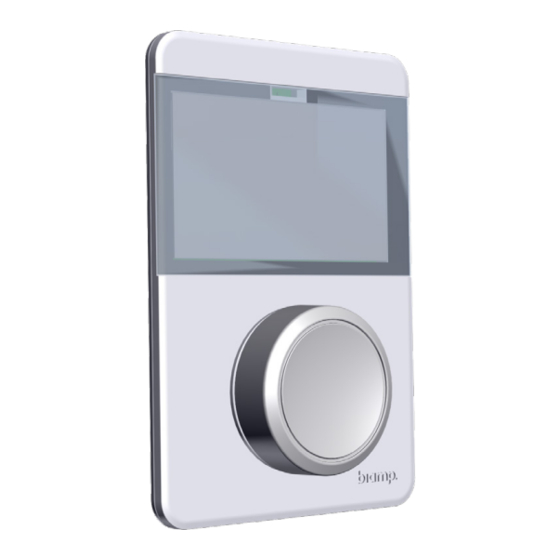

The Biamp TEC-X 1000 Wall Control Panel is a wall-mounted control device used
to manage certain functions of Tesira systems via a customizable touch panel
and rotary knob. Button knob functions may be configured to control presets and
a multitude of logic functions. The TEC-X 1000 is powered by PoE and is easily
mounted to a variety of electrical junction boxes. An optional tabletop mount is
also available.
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
FEATURES
• Customizable LCD touchscreen
• Customizable LED light-bar
• PoE powered
• Daisy-chain up to four devices
• Rotary knob for level control and action
• Ambient light sensor (automatically adjusts LCD and LED)
• CE marked, UL listed and RoHS compliant
SETUP AND USE
The Tesira software provides an intuitive interface for setup and programming
of the TEC-X 1000. The information supplied by this manual relates to physical
connections and device setup. For more details on software setup, including
programming the functions of the rotary knob, please consult the
The TEC-X 1000 Wall Control Panel is designed to be mounted directly to a 4"
X 2" electrical junction box per room design requirements (each remote requires
its own box). An optional tabletop mount is also available. Up to four TEC-X
1000 panels may be installed in daisy-chain. Installation hardware is included.
Detailed installation instructions are on the following pages.
Once installed in the appropriate location, all further set-up and configuration is
done via Tesira software.
IMPORTANT SAFETY / COMPLIANCE INFO
Install the TEC-X 1000 Wall Control Panel away from heat sources, such as
vents, radiators and heat registers. Also avoid installing near water or appliances
that may produce steam or other forms of moisture. Do not exceed the maximum
ambient operating temperature of 32°–95°F (0°–35°C).
Tesira Help
W:
www.biamp.com
DEC 2022
File.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Biamp TEC-X 1000
Summary of Contents for Biamp TEC-X 1000
- Page 1 Tesira Help File. The TEC-X 1000 Wall Control Panel is designed to be mounted directly to a 4" X 2" electrical junction box per room design requirements (each remote requires its own box). An optional tabletop mount is also available. Up to four TEC-X 1000 panels may be installed in daisy-chain.
-
Page 2: Installation
INSTALLATION The TEC-X 1000 is designed to be installed into a standard 'gang' box outlet and may be be daisy-chained with up to four additional TEC-X devices. NOTE: All Ethernet cabling should be connected prior to installation. Mount the TEC-X 1000 to a junction back box outlet as follows: The TEC-X 1000 comes 'partially' assembled with a pull tab installed over the lower clip. - Page 3 Figure 4. Back Plate Installation 5. See Figure 5. Insert the Ethernet cables into the appropriate ports on the face panel. Figure 3. Insert Ethernet Cables Figure 5. Connect Ethernet Cables TEC-X 1000 Installation and Operation Guide page 3...
- Page 4 The TEC-X 1000 must be connected to a Tesira Server-Class device (such as a TesiraFORTE). Up to 4 TEC-X 1000 devices may be connected in daisy- chain. TEC-X 2000s may be included in such a daisy-chain, as long as there are only a total of 4 TEC-X devices connected.
-
Page 5: Operation
OPERATION 6. The display also gives the following information: Operation of the TEC-X 1000 varies depending on how the device is configured in Tesira. The following section gives basic information on the rotary dial and • A padlock icon indicates the device is locked and requires a pin to touchscreen configurations. -
Page 6: Maintenance
However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. The latest version is available at www.biamp.com. 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com...
