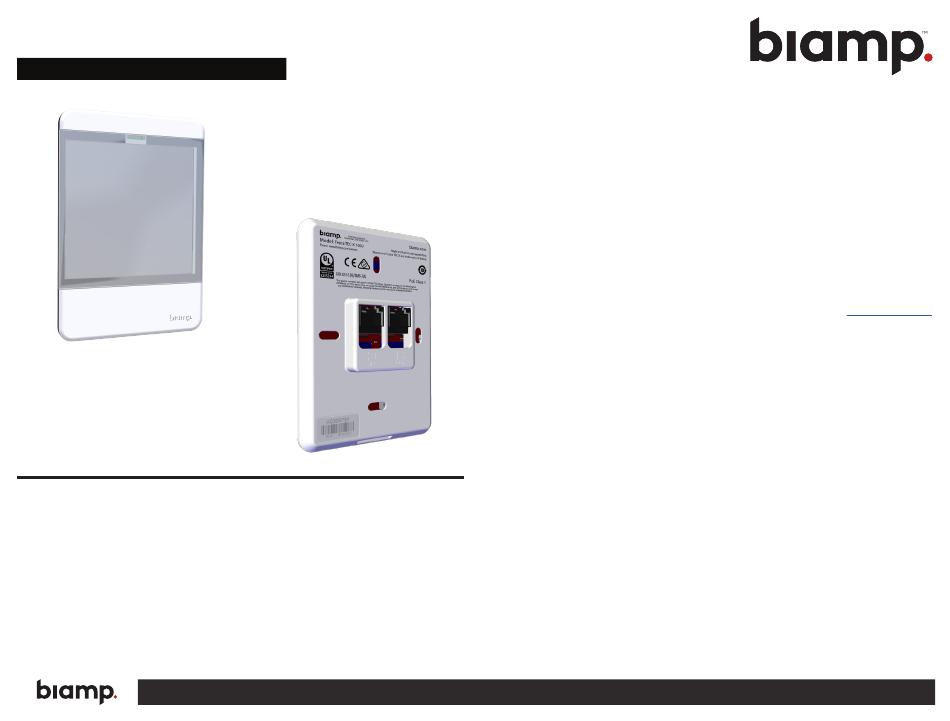

TEC-X 2000
Wall Control Panel
Installation & Operation Guide
PRODUCT DESCRIPTION
The Biamp TEC-X 2000 Wall Control Panel is a wall-mounted control device
used to manage certain functions of a Tesira system via a customizable touch
panel. Button functions may be configured to control presets and a multitude of
logic functions. The TEC-X 2000 is powered by PoE and is easily mounted to a
variety of electrical junction boxes. An optional tabletop mount is also available.
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
FEATURES
• Customizable LCD touchscreen
• Customizable LED light bar
• PoE powered
• Daisy-chain up to four devices
• Ambient light sensor (automatically adjusts LCD and LED)
• CE marked, UL listed and RoHS compliant
SETUP AND USE
The Tesira software provides an intuitive interface for setup and programming
of the TEC-X 2000. The information supplied by this manual relates to physical
connections and device setup. For more details on software setup, including
programming the functions of the touchscreen, please consult the
The TEC-X 2000 Wall Control Panel is designed to be mounted directly to a 4"
X 2" electrical junction box per room design requirements (each remote requires
its own box).An optional tabletop mount is also available. Up to 4 TEC-X 2000
panels may be installed in daisy-chain. Installation hardware is included. Detailed
installation instructions are on the following pages.
Once installed in the appropriate location, all further set-up and configuration is
done via Tesira software.
IMPORTANT SAFETY / COMPLIANCE INFO
Install the TEC-X 2000 Wall Control Panel away from heat sources, such as
vents, radiators and heat registers. Also avoid installing near water or appliances
that may produce steam or other forms of moisture. Do not exceed the maximum
ambient operating temperature of 32°–95°F (0°–35°C).
Tesira Help
W:
www.biamp.com
OCT 2021
File.
Advertisement
Table of Contents
Related Manuals for Biamp TEC-X 2000
Summary of Contents for Biamp TEC-X 2000
- Page 1 Tesira Help File. The TEC-X 2000 Wall Control Panel is designed to be mounted directly to a 4" X 2" electrical junction box per room design requirements (each remote requires its own box).An optional tabletop mount is also available. Up to 4 TEC-X 2000 panels may be installed in daisy-chain.
- Page 2 INSTALLATION The TEC-X 2000 is designed to be installed into a standard 'gang' box outlet and may be daisy-chained up to four additional TEC-X devices. NOTE: All Ethernet cabling should be connected prior to installation. Mount the TEC-X 2000 to a junction back box outlet as follows: The TEC-X 2000 comes 'partially' assembled with a pull tab installed over the lower clip.
- Page 3 3. Insert the downstream Ethernet cable through the port labeled "OUT" as required. Figure 4. Back Plate Installation 5. See Figure 5. Insert the Ethernet cables into the appropriate ports on the front panel. Figure 3.Insert Ethernet Cables Figure 5. Connect Ethernet Cables TEC-X 2000 Installation and Operation Guide page 3...
- Page 4 TesiraFORTÉ). Up to 4 TEC-X 2000 devices may be connected in daisy-chain. TEC-X 2000 may be included in such a daisy-chain, as long as only 4 TEC-X devices are connected. Figure 7 gives a basic layout with a TesiraFORTE and four TEC-X 2000 wall control devices.
- Page 5 OPERATION Operation of the TEC-X 2000 varies depending on how the device is configured in 5. The display also gives the following information: Tesira. The following section gives basic information on touchscreen navigation. • A padlock icon to indicate the device is locked and requires a pin to 1.
- Page 6 However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. The latest version is available at www.biamp.com. 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com...
