Summary of Contents for Kobold TDD

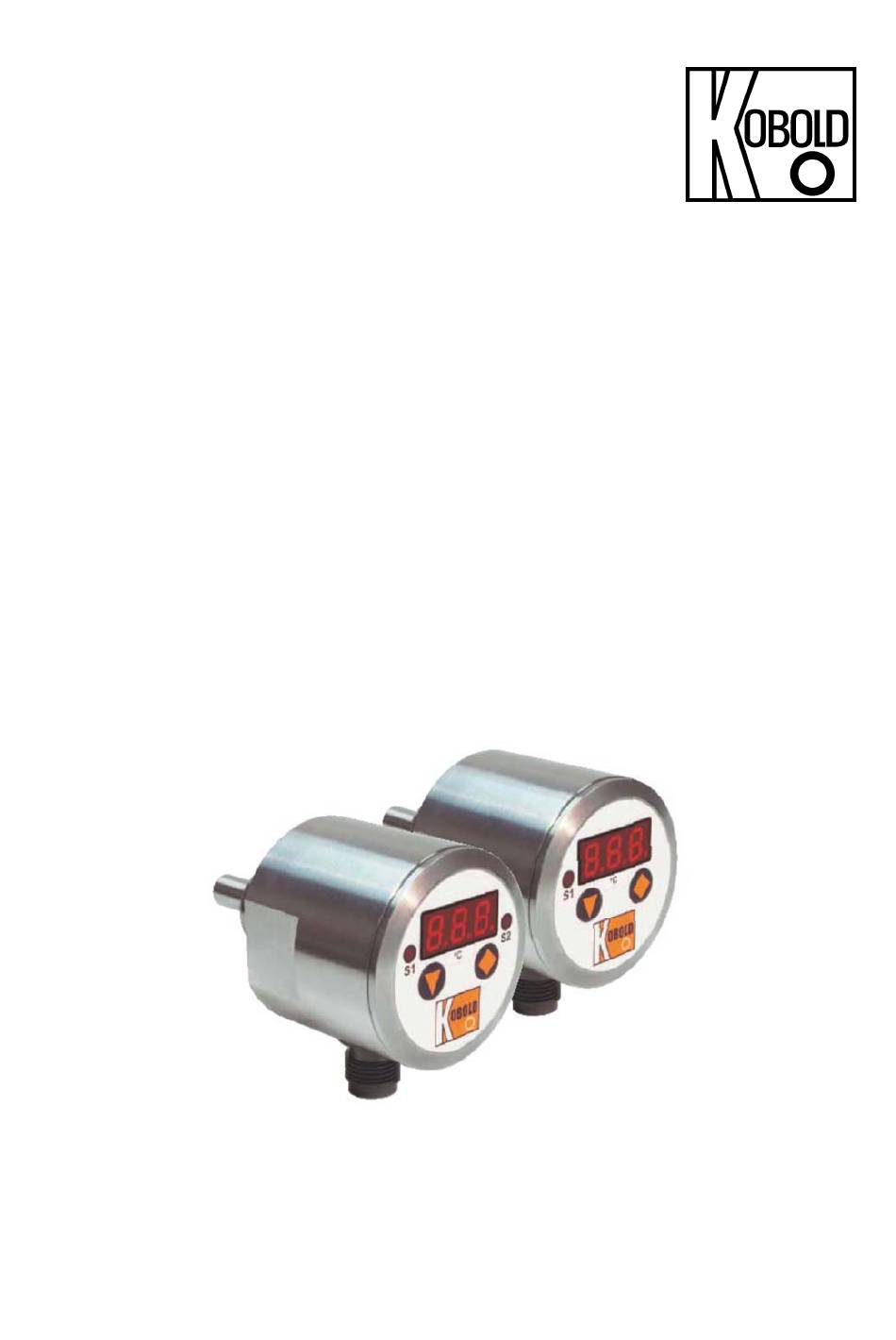

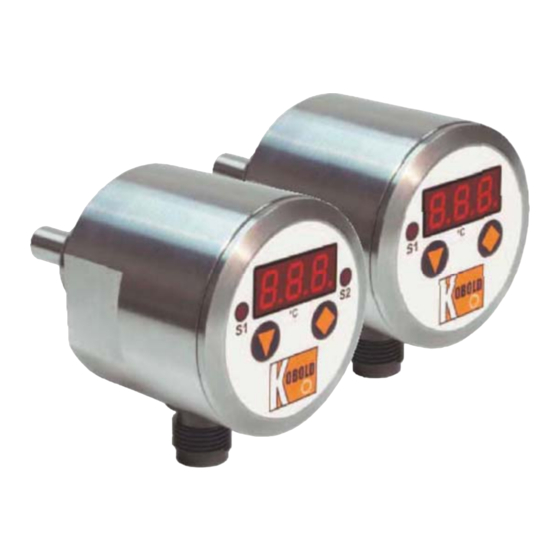

- Page 1 Operating Instructions Electronic Temperature Switch Model: TDD...
-
Page 2: Table Of Contents
Switching point ................... 13 11.2 Hysteresis ..................13 11.3 Window point (Double Point), (only for TDD-1… and TDD-3…) ..13 11.4 Switching behaviour ................14 11.5 Filter (only for TDD-1… and TDD-3…)..........15 ... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
The user assumes all risk for such usage. 5. Operating Principle The KOBOLD Model TDD temperature sensor is used for economical measuring and monitoring of temperature. It can be used for any application in which temperatures must be monitored with great accuracy. -
Page 5: Mechanical Connection
6. Mechanical Connection Before installation: Please check, if the switching temperature and switching function of TDD device is in agreement with your system requirements (specifications). Ensure that the maximum operating pressure or temperature for the device is not exceeded. -
Page 6: Electrical Connection
Make the connection using the M12x1 connector socket, as shown in the accompanying diagram. Appropriate connectors with different cable lengths are optionally available. Attention! Incorrect wiring will lead to damage the unit’s electronics. 7.1 Connector pin assignment TDD-153, TDD-353 page 6 TDD K09/1022... -
Page 7: Connector Pin Assignment Tdd-553, Tdd-753
7.2 Connector pin assignment TDD-553, TDD-753 TDD K09/1022 page 7... -
Page 8: Commissioning
Connect the temperature switch according to the figure shown on the previous page, and supply the device with the specified voltage. 8.1 Button function page 8 TDD K09/1022... -
Page 9: Adjustments
From main menu option (e. g. Switching point, "SPo"), press " " key in order to go to Parameter Adjustment. The following structure shows the sequence of steps required to change a single parameter. [From main menu option] TDD K09/1022 page 9... -
Page 10: Set-Up Mode
10. Set-up Mode 10.1 Adjustments for TDD-1… and TDD-3… page 10 TDD K09/1022... -
Page 11: Adjustments For Tdd-5
10.2 Adjustments for TDD-5… and TDD-7… TDD K09/1022 page 11... - Page 12 12 TDD K09/1022...
-
Page 13: Main Menu Options
The temperature switch switches when 100 °C is exceeded and switches back when the reading drops below 97.5 °C. 11.3 Window point (Double Point), (only for TDD-1… and TDD-3…) As well as the switching point, it is also to define a "duo" (duo-point), the window point. -
Page 14: Switching Behaviour
The contact closes (contact type: no) when it drops below the switching point or the window point. It only opens again if the window point plus hysteresis is exceeded or if it drops below the switching point minus hysteresis. An LED indicates the switching condition of the switching point. page 14 TDD K09/1022... -
Page 15: Filter (Only For Tdd-1
>6.25%, the instantaneous measured value is transferred directly to the display without filtering. 11.6 Transient response (only for TDD-5… and TDD-7…) Using the menu items “dS1”, “dS2”, “dr1” and “dr2” it is possible to set the delay set and the delay reset. -
Page 16: Change Code
11.8 Change code The code change "CCo" protects the device against unauthorised changes in adjusted device parameters. If the code is different from 000, the user must input the adjusted code in order to perform any programming changes. page 16 TDD K09/1022... -
Page 17: Maintenance
12. Maintenance This device is maintenance-free when properly installed. However, deposits from dirty liquids can lead to invalid measured values. TDD K09/1022 page 17... -
Page 18: Technical Information
2.5 m PTFE with M12x1 plug Housing: M25x1.5 with counter nut Principle of measurement: Semiconductor Display: TDD-1,-3,-5,-7: 3-digit LED, digit-height: 7 mm Resolution: TDD-1,-3,-5,-7: 0.5 °C to 100 °C 1 °C up to 100 °C Max. temperature of measured medium: 20...+120 °C (compact version) -
Page 19: Order Codes
14. Order codes TDD K09/1022 page 19... -
Page 20: Dimensions
15. Dimensions page 20 TDD K09/1022... -
Page 21: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment TDD K09/1022 page 21... -
Page 22: Eu Declaration Of Conformance
17. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Electronic Temperature Switch Model: TDD-1…, TDD-3…, TDD-5… and TDD-7… to which this declaration relates is in conformity with the standards noted below:... -
Page 23: Declaration Of Conformity
18. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Electronic Temperature Switch Model: TDD-1…, TDD-3…, TDD-5… and TDD-7… to which this declaration relates is in conformity with the standards noted below: BS EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use.
