WATERGUARD Puddle Installation Manual

Success?
Power is indicated by a single white flash and beep. The unit will then flash yellow for approximately 10
seconds as tracking/calibration is performed to establish a trip (moisture) level for each channel. Once
complete the unit will flash green and the Puddle is ready for action. The "ALARM OUT" terminal will also
open circuit on initial power up, in some instances it may close briefly first before opening which may
appear as a false alarm from DataCom/BMS if power is restarted to Puddle.
There are no lights or sounds while the Puddle is in operation mode.
Test....
To check the correct installation and operation of the Puddle, rapidly press the button 5 times. This will
simulate an alarm on all channels, flashing and beeping sequentially from 1 to 5. Pressing the button once
will silence the alarm, a second press will cancel the alarm and reset the controls. The Puddle will then
enter tracking mode when it recalibrates, this takes 4 minutes and is indicated by a yellow flashing LED
followed by single green to establish a new trip level after an alarm condition.
To check the correct installation of each water sensing device, wet tests should be conducted on all
channels in use. This involves ensuring water contamination to the tape/feet activates the alarm on all
channels, note all channels can be tested at the same time and does not require recalibration for each one.
Once all channels are tested clear the alarm.
Technical Support....
Technical support and further product information is available during office hours. Please double check all
electrical connections before contacting us. Call 01226 397987 to speak with one our technical experts.
Waterguard Services Limited. Registered address: 22 Oakwell Business Centre, Oakwell View, Barnsley, South
Yorkshire, S71 1HX. Tel: 01226 244200. Email: enquiries@waterguard.co.uk.

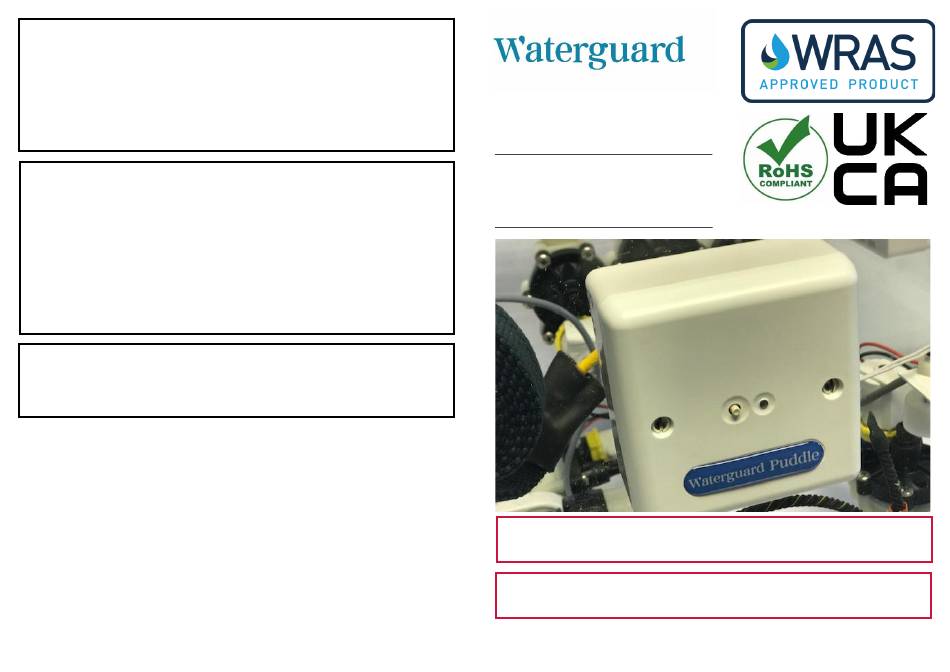

Water Leak Detection
Equipment
Waterguard Puddle -
Alarm Only
Installation Guide V21
Order No:__________________
IMPORTANT: PLEASE READ THIS GUIDE CAREFULLY AND IN FULL BEFORE INSTALLING.
CLEAN: DO NOT LET WATER SENSING TAPE BECOME CONTAMINATED.
PLACE PRIOR TO INSTALLATION TO AVOID POSSIBLE DAMAGE TO INTERNAL COMPONENTS.
IMPORTANT! INSTALLATION MUST BE CARRIED OUT ONLY BY THOSE COMPETENT IN ELECTRICAL
INSTALLATION. ANY DAMAGES INCURRED DUE TO IMPROPER INSTALLATION ARE NOT COVERED
UNDER WARRANTY.
STORAGE: KEEP IN A DRY
© 2021 Waterguard Services Limited, All Rights Reserved
KEEP
