Summary of Contents for City Theatrical 1504

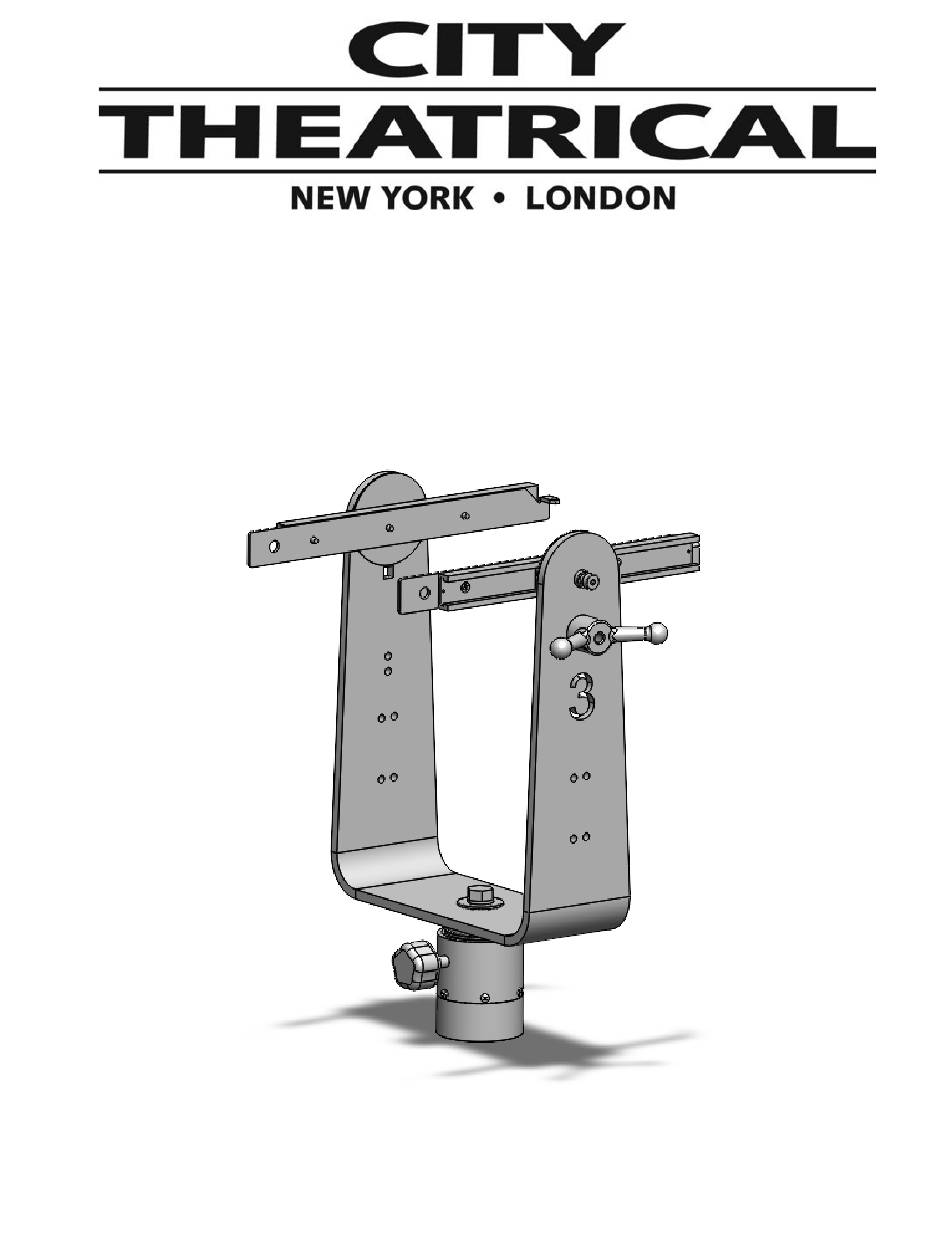

- Page 1 1504 Follow Spot Yoke Source Four LED Series 3 Rev 1.0 © 2022 City Theatrical, Inc. Made in USA...
- Page 2 The 1504 City Theatrical Follow Spot Yoke can be configured for use with the Source Four™ Series 3 LED fixture. All lenses from XDLT 5º to 50º can be used. A track allows the lighting fixture and any accessories to be perfectly balanced for ease of operation.
- Page 3 Mounting your Follow Spot Yoke Source Four LED Series 3 The City Theatrical Follow Spot for Source Four LED Series 3 can be mounted in a variety of ways. The bottom of the pan bearing has female 1 ½” NPT pipe threads, and any length of 1 ½”...
- Page 4 City Theatrical Follow Spot Yoke Preparing Your Lighting Fixture If you are planning to use a 14º-50º or a 10º Source Four, you will need to remove the shutters from the lighting fixture. This is not necessary, but may be desirable for a 5º Source Four to prevent the shutter blades from accidentally being moved during operation.
- Page 5 City Theatrical Follow Spot Yoke Installing the Source Four into the Follow Spot Yoke Note the two Tee Blocks that slide into the Tee Slot Extrusion. Using a 3/16” Allen key, slightly loosen the two 3/8” x ½” socket head shoulder screws to free the Tee Blocks. Carefully insert the Tee Slot Extrusions onto the Tee Blocks.
- Page 6 City Theatrical Follow Spot Yoke Balance the Lighting Fixture in the Yoke The lighting fixture can be adjusted forward or backward in the Tee Slot Extrusion to establish a perfect balance point. To test the balance, carefully loosen the tilt locking knob and feel if the fixture is front heavy or back heavy.
- Page 7 City Theatrical Follow Spot Yoke Using Other City Theatrical Accessories with Your Follow Spot Yoke City Theatrical has created a range of accessories to make your Follow Spot more versatile and easier to operate. Part Name Number 2180 Drop-In Iris...
