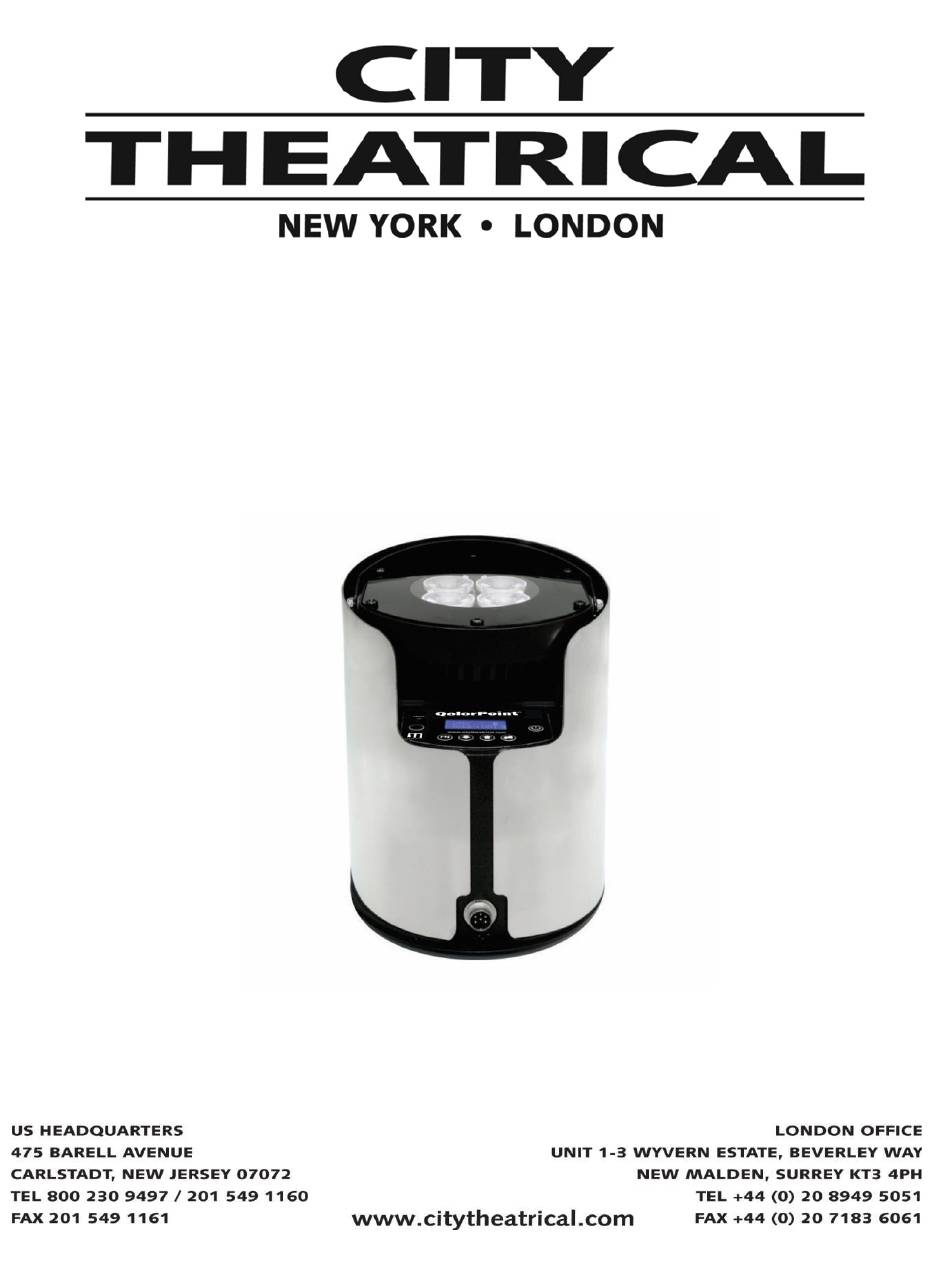

- Page 1 ® QolorPoint Wireless LED Uplighter User’s Manual Rev 2.0 © 2022 City Theatrical, Inc.
-
Page 2: Table Of Contents
5792M Multiverse Radio CE Declaration of Conformity ....................4 System Compliance Information ........................6 Safety Notices ............................. 6 Introduction ..............................7 QolorPoint Wireless Uplighter features ......................... 7 Product Contents ................................8 Charging..............................8 User Interface.............................. 9 Power .................................... 9 External Power (Optional Accessory) ........................... -
Page 3: Disclaimer
Product Modification This City Theatrical product has been designed and manufactured to meet the strict requirements of U.S., EU and International safety regulations. Any unauthorized modifications to the product including replacement of parts with non-standard parts could compromise safety and result in the product being non-compliant with relevant standards. -
Page 4: System Compliance Information
The consumer must contact their local authority or retailer for information concerning disposal of their products. City Theatrical provides a take-back facility for batteries used within City Theatrical products, although the expense for transport remains the liability of the consumer. Please contact City Theatrical directly if this service is required. -
Page 5: Introduction
-By designating one fixture as a Master and using its built in Multiverse wireless DMX transceiver to broadcast to a group of QolorPoint fixtures set in Slave Mode. -By broadcasting to a group of QolorPoint fixtures by using an external lighting console and a Multiverse wireless DMX transmitter such as Multiverse SHoW Baby or Multiverse Node. -
Page 6: Product Contents
Four or five Channel DMX operation • Intuitive LCD menu • Operating temperature range -4°F to113°F(-20°C to +45°C) Product Contents Charging case of six units • 6x QolorPoint Wireless LED fixtures • 6x Stainless steel shroud • 1x Charging case • 1x Powercon Cable •... -
Page 7: Charging
The display will show “CTI by Core” and the software version for a few seconds before starting • The display backlight will turn off after 20 seconds to reduce power use This six-button pad is the main control interface for the QolorPoint Wireless Uplighter. The button functions are SHOW ID, FUNCTION, DOWN, UP, ENTER, and POWER. -
Page 8: External Power (Optional Accessory)
External Power (Optional Accessory) An optional QolorPoint AC power supply adapter CAT# 7024 is available as an accessory to drive the QolorPoint from mains voltage 100-250VAC 50/60Hz. • Connect this to the charging/power port in the front of the unit. -
Page 9: Static Mode Operation
Static Mode Operation Static operation When in STATIC mode the display indicates the current selected color. To change the current selected color press The last character of the currently selected color is underlined. Use the keys to select a color from the built-in library of 70 pre-programmed colors, including 60 popular LEE Filter Colors The color changes when cycling through the available options. -
Page 10: Dmx Mode Operation
• All Slave fixtures must be in the same SHoW ID as the Master If not using a QolorPoint as a Master unit then a compatible Multiverse transmitter attached to a DMX controller is necessary, available separately. To select the DMX function, Press the FN... - Page 11 (4 or 5 channels may be used by the fixture). In this mode the entire universe is output on a side connector pin, for which a connector cable is available from City Theatrical Inc. for connection to other non-wireless fixtures.
-
Page 12: Built-In Effects
SHoW ID Settings The QolorPoint uplighter uses the Multiverse 2.4GHz Radio Module. This Module is backwards compatible with SHoW DMX Neo systems. The front panel button “SHoW ID” is programmed with six SHoW Neo ID options. The... - Page 13 SHoW ID can be changed by pressing the SHoW ID button on the control panel of the QolorPoint Uplighter. To access the additional SHoW DMX Neo or Multiverse IDs an RDM controller is necessary as described below. NOTE: QolorPoint Fixtures shipped before 1/1/2022 were shipped with SHoW DMX Neo with Max Technology Radio Modules and are limited to the six IDs in the chart below.
-
Page 14: Show Id Led
If the LED is FLASHING, the QolorPoint is not receiving DMX from a Transmitter or master fixture. If the LED is STEADILY ILLUMINATED the QolorPoint is connected with and receiving DMX from a transmitter. This is a fully connected and a fully functioning system. -
Page 15: Power Mode
Static, Custom Color and DMX modes so that the battery life of each unit can be individually set, irrespective of what’s controlling it. Brightness Control Under the “CHANGE Settings” menu QolorPoint has a separate brightness control that can control the output of the unit in stand-alone mode: The value may be changed from 0 to 100% in 1% increments: buttons to select “CHANGE Settings”... -
Page 16: Pwm Frequency Control
PWM Frequency Control For HD TV work QolorPoint is equipped with an option to adjust the PWM frequency of the LEDs to prevent ‘beating’ with the TV scan frequency. buttons to select “CHANGE Settings” then press To enable soft dimming press and use the select. - Page 17 Table 1: Multiverse SHoW IDs 24 3 0 2 Multiverse SHoW ID Example: Prefix Data Rate Band Hop Pattern 24 2.4GHz Faster data rates provide more Specifies which sections If multiple wireless DMX universes. Slower data of the wireless band the systems need to operate rates travel longer distances and frequency hopping...
-
Page 19: Warranty
If your dealer is not equipped to perform the repair of your City Theatrical product, it can be returned directly to City Theatrical, with carriage being paid at your own expense. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection.
