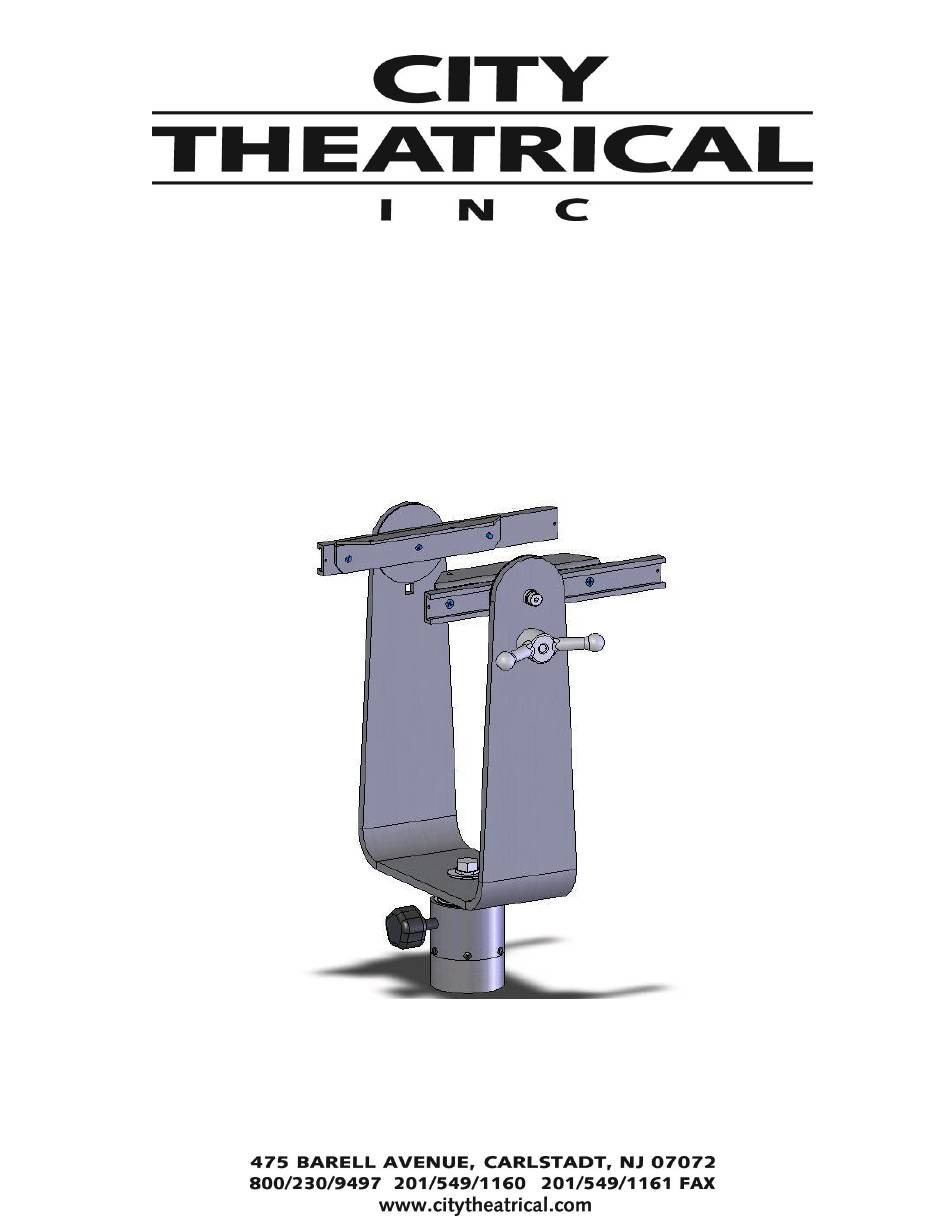

- Page 1 1500 Follow Spot Yoke for Source Four Rev 1.2 © 2022 City Theatrical, Inc. Getting Started with the City Theatrical Follow Spot Yoke...
- Page 2 The City Theatrical Follow Spot Yoke can be configured for use with the Source Four™ 19º- 50º, 10º, and 5º. A track allows the lighting fixture and any accessories to be balanced for ease of operation.
- Page 3 Mounting your Follow Spot Yoke The City Theatrical Follow Spot can be mounted in a variety of ways. The bottom of the pan bearing has female 1 ½” NPT pipe threads, and any length of 1 ½” pipe can be threaded into it.
- Page 4 Go on the next step: Two Angle Brackets allow your Source Four to be installed in the Follow Spot Yoke. Replace the four ETC machine screws with the enclosed #8-32 x 1 ½” pan head Philips machine screws into the Source Four’s existing #8-32 hex nuts.
- Page 5 City Theatrical Follow Spot Yoke Note the two Tee Blocks that slide into the Tee Slot Extrusion. Using a 3/16” Allen key, slightly loosen the two 3/8” x ½” socket head shoulder screws to free the Tee Blocks. Carefully insert the Tee Slot Extrusions onto the Tee Blocks. Tighten the tilt handwheel.
- Page 6 City Theatrical Follow Spot Yoke Theatrical Accessories with Your Follow Spot Yoke City Theatrical has created a range of accessories to make your Follow Spot more versatile and easier to operate. Part Name Number 2180 Drop-In Iris Change size of beam...
