475 Barell Ave., Carlstadt, NJ 07072
Voice: 800-230-9497, 201-549-1160
Fax: 201-549-1161

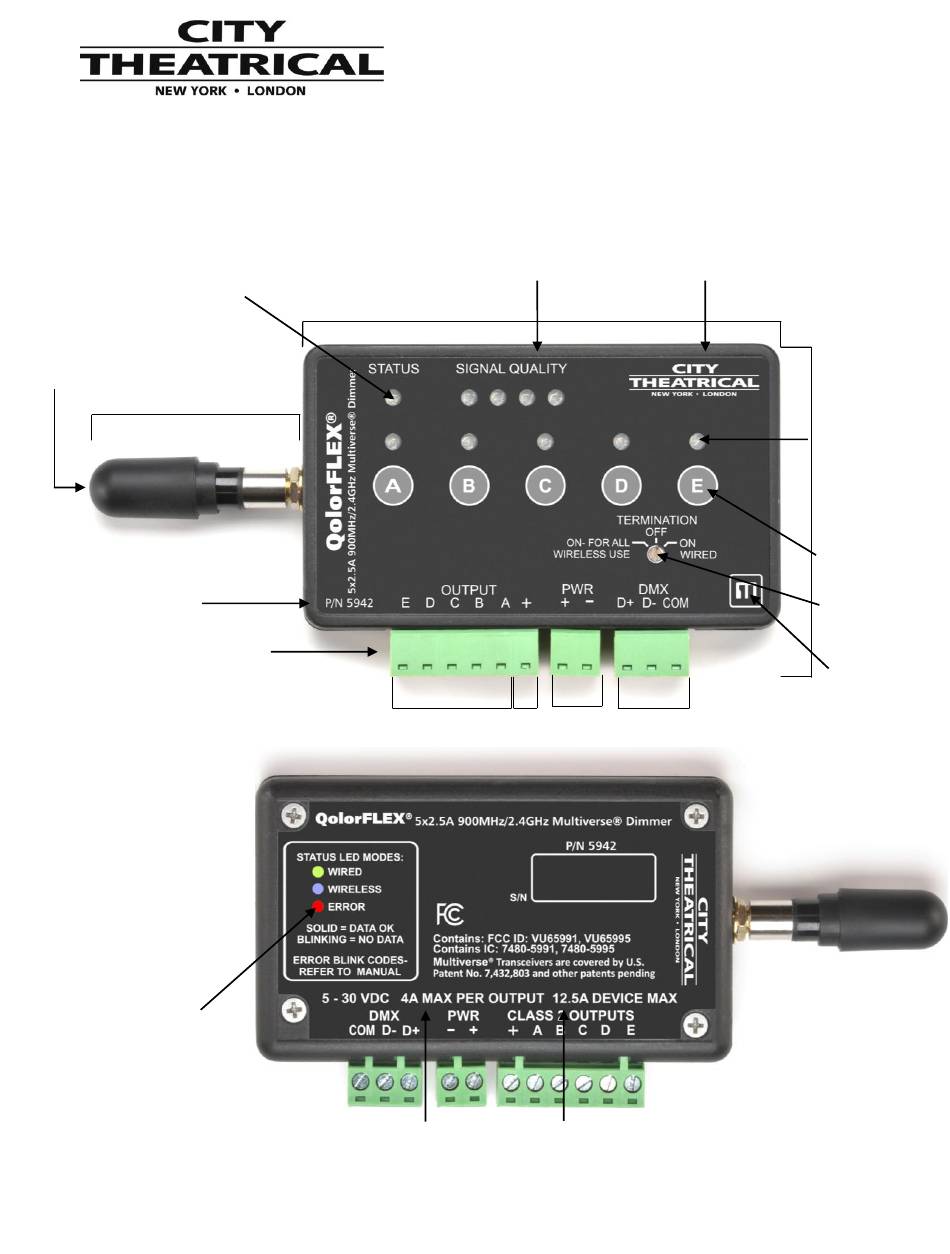

SETUP AND OPERATION
Status Light
Green
for wired /
Blue
Solid for DMX present
Blinking when no DMX present;
Blinking
Red
for fault codes.
Omni Broadband Antenna,
2.4GHz 3.8dBi
4.3 cm (1.69 in)
Part Number
Removable Terminal Connectors
Error Codes
Number of blinks:
1
Short circuit
2
Output overcurrent (>4A on
any output)
3
Input overcurrent (>12.5A on
total device)
4
Over temperature on any
output
5
Under voltage
6
Over voltage
for wireless;
QolorFLEX
Multiverse
Quick Start Guide
Signal Quality Lights
10.0 cm (3.94 in)
DC
Outputs
Input
12.5A Max on
4A Max on
entire Device
any Output
1
®
5x2.5A 900MHz/2.4GHz
®
Dimmer (5942)
Made in the USA
DMX
In/Thru
Output
Indicator
Lights
7.0 cm
(2.75 in)
Bump Buttons
Termination
Switch
Multiverse
Technology
Inside
Advertisement
Table of Contents
Related Manuals for City Theatrical QolorFLEX
Summary of Contents for City Theatrical QolorFLEX
- Page 1 ® QolorFLEX 5x2.5A 900MHz/2.4GHz ® Multiverse Dimmer (5942) Quick Start Guide 475 Barell Ave., Carlstadt, NJ 07072 Voice: 800-230-9497, 201-549-1160 Fax: 201-549-1161 SETUP AND OPERATION Status Light Green for wired / Blue for wireless; Solid for DMX present Signal Quality Lights Made in the USA Blinking when no DMX present;...
- Page 2 Introduction The QolorFLEX 5x2.5A 900MHz/2.4GHz Multiverse Dimmer requires standard DC power from 5-30VDC. The input voltage must be the same as the load connected to the output ports requires. Connect your power supply’s DC “+” and “-” to the two DC input terminals on the 5942 labelled “PWR”...
- Page 3 Start by connecting an XLR5M to three position Phoenix jumper, such as City Theatrical PN5950 XLR5M and XLR5F to Three Position Phoenix Connector Female, 6", or one that you craft yourself, so you can attach an RDM controller such as a City Theatrical DMXcat. Using RDM, discover your 5942.
- Page 4 Note: RDM traffic needs to be enabled at the transmitter to view the wireless 5942 in RDM. To configure as a WIRED or WIRELESS device using the City Theatrical USB Configurator controller: Download the City Theatrical USB Configurator from the 5942 webpage on the CTI website, and install the program on your computer (Mac or PC).
