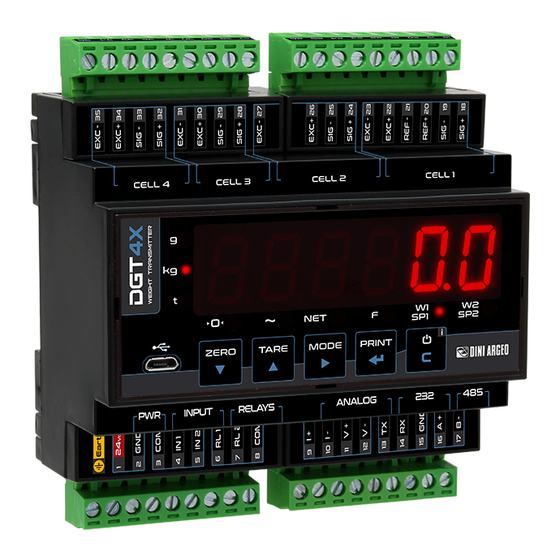

- Page 1 DGT4XAN Digital weight Transmitter with 4 channels QUICK START GUIDE V1 ENGLISH www.diniargeo.com...
-
Page 2: Electrical Scheme
1. Electrical scheme In LOAD CELL 2, 3, 4 connect: There’s a single SENSE circuit that Load cells exitation: 5 V. SEN + to EXC + compensate all 4 load cells. Load cells output: 6 mV/V max. SEN - to EXC - 35 34 33 32 31 30... - Page 3 2. Key function in configuration menu and in weighing mode CELL 4 CELL 3 CELL 2 CELL 1 ZERO TARE MODE PRINT INPUT RELA YS ANALOG Configuration menu Weighing mode Decreases digit / Scroll down. Clears the displayed gross weight. Increases digit / Scroll up.
-
Page 4: Configuration Menu
4. Configuration menu 1. Reboot the weight transmitter 2. Press the key when display shows the message: 888888 888888 TYPE Functioning mode (ch. 5). nChan Chan div.deC Scale configuration: capacity, resolution and decimal point (ch. 6). CapaC Cel.Cap Cel.sen Theoretical calibration (ch. 7). dead.ld Zeroing of the deal load (pre-tare zeroing) (ch. -
Page 5: Functioning Mode
5. Functioning mode Digital equalisation box mode. 888888 TYPE dep.Ch ind.Ch Multi-scale mode. Set the number of active channels. nChan CHAN Select the channel to be programmed (for ind,Ch mode only). MODE 1 “DEP.CH” Allows to connect directly the load cells, equalize them (if necessary) and transmit each load cell data and the total weight through Fieldbus. Load cell 1 Load cell 2 Type... -
Page 6: Theoretical Calibration
6. Maximum scale capacity, increment and decimal point setting 888888 div.deC Set the decimal point position and the minimum scale increment* div.deC 0,001 0,002 0,005 0,01 0,02 0,05 Set the maximum scale capacity* (max div.deC CapaC 999999 Examples: For a 60000 kg scale, with 2 kg For a 10000 g scale, with 0,1 g increment: For a 3000 kg scale, with 0,05 kg increment:... - Page 7 8. Zeroing of the mechanic tare (pre-tare zeroing) 888888 div.deC div.deC 0.Calib Zeroing of the pre-tare (or mechanical tare). This functionality allows to zero the weigh of the scale structure (e.g. empty silo, conveyor, etc.) without changing the calibration in memory.
-
Page 8: Analog Output
11. Analog output 888888 div.deC an.o div.deC ao .ype div.deC 0 10V Analog output in voltage 0 ÷ 10 V. Analog output in voltage 0 ÷ 10 V. 0 5V Analog output in current 0 ÷ 20 mA. 0 20ma 4 20ma Analog output in current 4 ÷... -
Page 9: Input Setting
11.2 EXAMPLES Impostazione dell’uscita analogica sul peso lordo a 0 10 V, for a Impostazione dell’uscita analogica sul peso netto a 4 20 mA, for a 1000 kg scale: 20000 kg scale: • Connect a multimeter to pins 11 (+) e 12 (-). •... -
Page 10: Output Setting
13. Output setting 888888 div.deC oUTPUT div.deC o.01 o.02. Normally open / normally close. o.02 no/nC fnC 0 none Output disabled. 1 Gros Setpoint on gross weight. 2 ne Setpoint on net weight. 13.1 HOW TO PROGRAM SETPOINTS Select the setpoint to modify: In weighing mode, press Press key to store and exit... -
Page 11: Programming Errors
15. Broken load cell exclusion (for dependent channel systems) If a load cell is broken, it’s possible to temporarely exclude the channel where it is connected and continue to weigh, pending replacement. WARNING: this operation reduces the accuracy of the weighing system. We recommend use for liquid weighing or in applications where the load is evenly distributed. - Page 12 17. Modbus 17.1 MODBUS REGISTERS - dep.CH / ind.ch (1 SCALE) Data Register DESCRIPTION 30001 Gross weight Gross Weight value. 30002 30003 Net weight Net Weight value. 30004 Bit 15 Active channel. (msb) Bit 15 Bit 14 Active Channel Bit 14 Active channel.
- Page 13 17.2 MODBUS REGISTERS - ind.ch (4 SCALES) Data Register DESCRIPTION Bit 15 (msb) No function. Bit 8 (lsb) Bit 7 Tare PT (1 = PT tare is active). (msb) Bit 6 Tare (1 = Tare is active). Status register 40202 Bit 5 Net Weight Polarity (0 = “+”;...
- Page 14 17.3 MODBUS REGISTERS FOR COMMAND SENDING Data Register DESCRIPTION Main available commands: Value Command 00 Hex No command 01 Hex Scale zeroing 02 Hex Tare Command 40001 03 Hex Preset Tare 0A Hex Setpoint 1 setting 0B Hex Setpoint 2 setting 19 Hex Digital output setting 22 Hex...
-
Page 16: Service Assistance
HEAD OFFICE Authorized service center stamp Via Della Fisica, 20 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 843418 - Fax +39 0536 843521 SERVICE ASSISTANCE Via Dell’Elettronica, 15 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 921784 - Fax +39 0536 926654 www.diniargeo.com...
