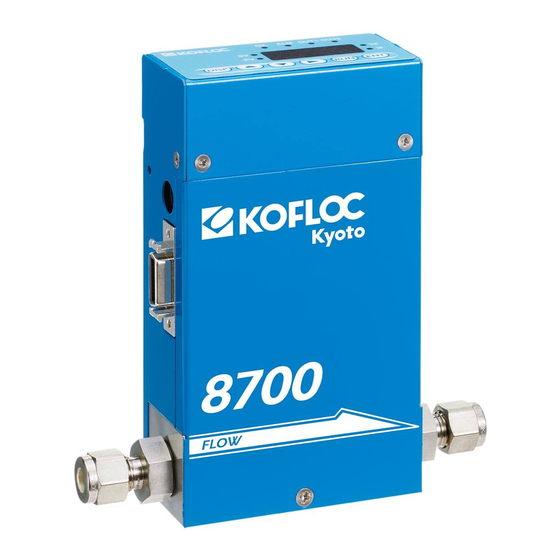

Thermal mass flow meter / controller
Hide thumbs Also See for 8700 Series:

Advertisement

MJ400306A1
Thermal Mass Flow Meter / Controller
MODEL 8700 SERIES
INSTRUCTION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kofloc 8700 Series

  • Page 1 MJ400306A1 Thermal Mass Flow Meter / Controller MODEL 8700 SERIES INSTRUCTION MANUAL...
  • Page 2 Prior to shipment, every care has been taken in preparing this manual not to mention the product itself, but if you notice any imperfections, errors or omission, please contact KOFLOC. << Prior to use >> and << Precautions for use >>...
  • Page 3: Table Of Contents

    MJ400306A1 Table of Contents Page 1. Foreword 2. Precautions for Use 3. Overview and Configuration of the Product 4. Standard Specifications 5. Special Functions 6. Installation 7. Connector and Pin Assignment 8. Preparation Prior to Use 9. Nomenclature and Functions of the Indicator 10.
  • Page 4: Foreword

    Model 8500 Series and D8500 Series. For details, refer to 7. Connector and Pin Assignment. ② Model 8700 Series allows the use of the same AC adapter as that for Model 8500 Series and D8500 Series. (The outside of the jack is +24 V.) ③...
  • Page 5 When it is expected that the product will be kept in storage for a long time, take the following precautions: ・Store the product in the package in which it was received from KOFLOC, wherever possible. ・Store the product in a place described below: ①...
  • Page 6: Overview And Configuration Of The Product

    ・Both of digital control (indicator, communications, contact) and control by analog signals are possible. (Voltage signal: 0 – 5 V or current signal: 4 – 20 mA) Configuration Model 8700 Series is configured with a sensor, bypass, electric circuit and valve (controller type only) as shown below. Indicator...
  • Page 7: Standard Specifications

    MJ400306A1 4. Standard Specifications Item Specifications Model Name 8700 MC/MM 8750MC/MM 10SCCM~20SLM 20SLM~100SLM F.S. flow rate (N Specifiable gas , Air , O , CO , Ar , H , He , etc. Sensor type Thermal winding sensor Valve actuator Solenoid normally closed type ※1 Control range...
  • Page 8 MJ400306A1 Rating 24 VDC, power consumption 300 mA max. Power supply Allowable voltage DC22.5V~25.2V range Installation posture Any posture SUS316 , SUS316L , SUS430 , Fluor rubber , Materials of parts in contact with gas PTFE , Chloroprene rubber (Optional) Joint Rc1/4 Rc3/8 (Optional:1/4SWL,1/8SWL,1/4VCR, 3/8SWL) Integrated type approx.
  • Page 9: Special Functions

    MJ400306A1 Special Functions Indicator function ・Indication: 7-segment LED, 4 digits ・Indication update cycle: Selected from 50 msec , 100 msec , 200 msec, 500 msec and 1000 msec/time ・Status indicator lamp: Green 7 pieces / Red 1 pieces ・Key switch: 6 pieces Integration function ※To make setting about integration, refer to 13.
  • Page 10: Installation

    MJ400306A1 Installation Installation place ① This equipment is designed for indoor use. Never install the equipment in a place where it is likely to be wetted by water or rain. The equipment may fail. Install the equipment in a place where sufficient ventilation is provided and changes in humidity are minimal.
  • Page 11 Due to the characteristics of the mass flow controller, if counterflow occurs, the fully opening action may occur even if controlled. The valve of Model 8700 Series Controller Type is intended for precise control and is different from valves designed for complete shutoff.
  • Page 12: Connector And Pin Assignment

    MJ400306A1 Connector and Pin Assignment Connector Connector type : D-sub half-pitch connector, 20 pins Main unit connector : DX10M-20S (Hirose-made) Recommended matching connector : DX40M-20P (Hirose-made) Cover : DX30M-20-CV (Hirose-made) Pin assignment Pin No. Signal Name Remarks Power supply GND It is recommended to connect both of two to prevent a voltage drop.
  • Page 13 MJ400306A1 Do not connect different power supplies to the power input terminals of DANGER the above connector and the pin jack power terminals simultaneously. Such a practice may cause a fire or damage to the equipment.
  • Page 14: Preparation Prior To Use

    MJ400306A1 8. Preparation Prior to Use Warming up In the state that no gas pressure is being applied to inlet side of the main unit (a pressure difference between the inlet side and the outlet side is completely zero), turn on the power. When the operation mode is “fully open”...
  • Page 15: Nomenclature And Functions Of The Indicator

    MJ400306A1 9. Nomenclature and Functions of the Indicator ⑬ ⑭ ⑪ ⑫ ⑮ ⑦ ⑨ ⑧ ⑩ ③ ④ ① ② ⑤ ⑥ ① DISP key (DISPLAY) Used to switch over the indication of the instantaneous flow rate, set flow rate, integrated flow rate, etc.
  • Page 16: Nomenclature And Functions Of The Main Unit

    MJ400306A1 ⑩ IF lamp Lights in the function setting mode. ⑪ OK lamp Lights when an instantaneous flow rate is within the set flow rate ± allowable range. ⑫ ALM lamp (ALARM) Lights when an alarm has occurred. ⑬ OUT1 lamp (Event 1 output) Lights when the event output 1 is on.
  • Page 17: Basic Operation Of The Indicator

    MJ400306A1 Basic Operation of the Indicator (1) Changing over the indication of the instantaneous flow rate, set flow rate and integrated flow rate Power on ↓       ▼ key+ENT key held pressed Status of lamps on the indicator ① ⑧ Instant. flow indication Function set mode ([PV] and [SV] lamps on) DISP key...
  • Page 18 MJ400306A1 ③ Set flow rate indication(Controller type only) Determine a flow rate to control with this equipment. When the [ENT] key is pressed while this set flow rate is being indicated (“VL” lamp lit), the figure on the left end (most significant) flashes. Go to the digit of the set value to change with the [ ] key and change the figure with the [▲/▼] keys.
  • Page 19 MJ400306A1 ④ to ⑥ Integrated flow rate indication ・The integrated value is indicated by 12 digits maximum of; 0 – 9 9 9, 9 9 9, 9 9 9, 9 9 9 Upper Middle Lower For this reason, a value is divided to 4 digits each and indicated three times. ・Resetting the integrated flow rate When an integrated value is being indicated (“TF”...
  • Page 20: Changing Over The Operation Modes

    MJ400306A1 12. Changing Over the Operation Modes The valve has three operation modes; “control mode,” “fully closed mode” and “fully opened mode.” When the equipment is shipped, it is in the control mode. It can be forced to the “fully closed mode” (valve fully closed) or “fully opened mode” (valve fully opened). Each time the [RUN] key is pressed, the mode is changed over between “control”...
  • Page 21: Applied Operating Procedure

    MJ400306A1 13. Applied Operating Procedure Changing the SP by external contact inputs (controller type only) In the state of “00: Digital setting” in “D-01: Flow rate setting method selection” in 14. List of Function Setting Modes, six SP values (SP0 – 5) can be changed over by event inputs as shown below.
  • Page 22 MJ400306A1 (2) Using the upper/lower limit alarms(controller type) Overview of the upper/lower limit alarm action: When PV: instantaneous flow rate (blue line) changes largely relative to SV: set flow rate (green line) as time passes, the flow rate alarm is judged. 流量...
  • Page 23 MJ400306A1 (3) Using the upper/lower limit alarms (meter type) Overview of the upper/lower limit alarm action: When PV: instantaneous flow rate changes as time passes, the flow rate alarm is judged. Flow rate AL. Hi AL.Lo AL. dt AL. dt Time            ON...
  • Page 24 MJ400306A1 (4) Using the allowable range (OK judgment) function (controller type) When the instantaneous flow rate value (PV) is in a range of the flow rate set value (SV) ± Flow rate OK judgment range: D-22, the OK LED lights. ※Refer to D-18 to D-21 in 14.
  • Page 25: List Of Function Setting Modes

    MJ400306A1 14. List of Function Setting Modes (Some items are not shown on the meter.) Set No. Description Initial Set Value Remarks D-01 Flow rate setting : Digital setting :Setting by the indicator, method selection communications and contact : Analog setting input is valid.
  • Page 26 MJ400306A1 (Some items are not shown on the meter.) Set No. Description Initial Set Value Remarks D-13 “01 – 03” Flow rate alarm setting :Not used When are selected, “D-14 – D-17” :Only upper limit alarm used at the same time. :Only lower limit alarm used :Upper/lower limit alarms used D-14...
  • Page 27 MJ400306A1 (Some items are not shown on the meter.) Set No. Description Initial Set Value Remarks D-22 0.5~100.0 Flow rate OK judgment Settable range: range (%F.S.) D-26 Set flow rate tracking :Invalid :When setting a flow rate on :Valid function the indicator, the flow rate will not be changed until the [ENT] key is pressed.
  • Page 28 MJ400306A1 (Some items are not shown on the meter.) Set No. Description Initial Set Value Remarks D-32 100.0 0.0~100.0 SP upper limit flow rate Used to limit the SP settable Settable range: (%F.S.) range. D-32 D-33 Setting must be “ >...
  • Page 29: Alarm Codes And Corrective Actions

    MJ400306A1 15. Alarm Codes and Corrective Actions Code Description Possible Cause Corrective Action AL-1 Shipment Data has been destroyed or the Request for repair. adjustment / user circuit board is faulty. set data error AL-3 Auto close The supply of gas stopped during To stop the supply of gas, set the activated control.
  • Page 30: Troubleshooting And Precautions For Servicing

    The orifice is clogged. 1. The orifice needs to be overhauled and cleaned or replaced. Please send it to KOFLOC. h. The sensor tube is clogged. 1. If the tube is clogged, gas keeps flowing. Check it.
  • Page 31 If gas does not stop, the valve needs to be readjusted. Please send it to KOFLOC. If gas stops, a possible cause is a faulty electronic circuit. Please send it to KOFLOC.
  • Page 32: After-Sales Service

    18. Product warranty Thank you very much for usually using Kofloc products regularly. Now, when ordering our products by this catalog and when there is no statement of special mention matters, such as estimate, contract and specifications, we apply following requirements and the following contents of a warranty.
  • Page 33: External View

    MJ400306A1 19. External View (1) Integrated indicator type...
  • Page 34 MJ400306A1...
  • Page 35 MJ400306A1 (2) Separate indicator type ① Main unit...
  • Page 36 MJ400306A1...
  • Page 37 MJ400306A1 ② Indicator URL:http:// www.kofloc.co.jp...
