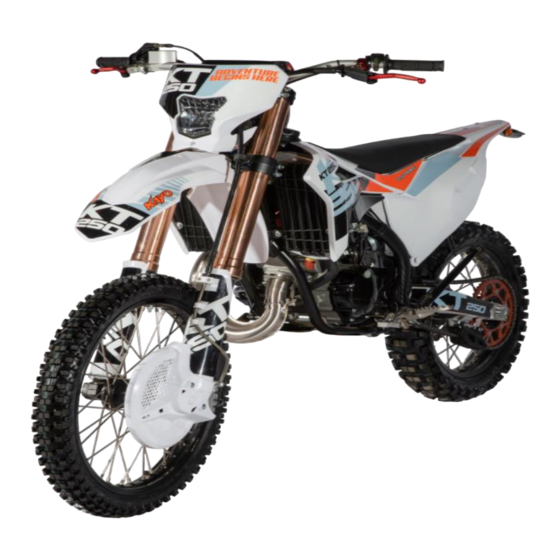

- Page 1 KAYO MOTO KT250 Assembly Manual WWW.KAYOMOTO.COM...
- Page 2 ① Torque wrench ② Phillips screwdriver ③ 5mm hexagon wrench ④ 10-12mm wrench ⑤ 21mm socket ⑥ 6 hexagon socket ⑦ Needle nose pliers ⑧ 8mm socket ⑨10mm socket 1.Tools for opening and assembling the dirt bike. 2.Remove the straps and cardboard cover. 3.Take out the parts attached to the vehicle and iron frame, remove the iron frame screws, wait for subsequent installation.
- Page 3 Name Quantity Handlebar cover Handlebar sponge Spark plug socket Cable tie (handlebar) Coolant Front wheel assy Front mud fender Fuel mix ratio container Two stroke engine oil Front disc brake cover 4.The parts shown above need to be installed on the vehicle. 5.Use tool ④...
- Page 4 9.Install the handlebar cover and sponge on the 10.Use tool ⑧ to remove screws of lower clamp vehicle. assy, then install the front fender and tighten the screws. 12.Install the front axle then use tool ①⑤ to 11.Remove the plastic wedges between the tighten the fixing nut.
- Page 5 15.Use tool ⑨ to remove the screws on seat 16.Put the battery in and use tool ② to install the then remove the seat. battery screws (red is positive, black is negative). Use tool ⑨ to install the seat. 17.Use ratio mix jar to mix the 2-stroke oil and fuel at a ratio of 30:1, add it to the fuel tank and 18.Turn the fuel tank petcock to the position shown tighten the fuel tank cap.
