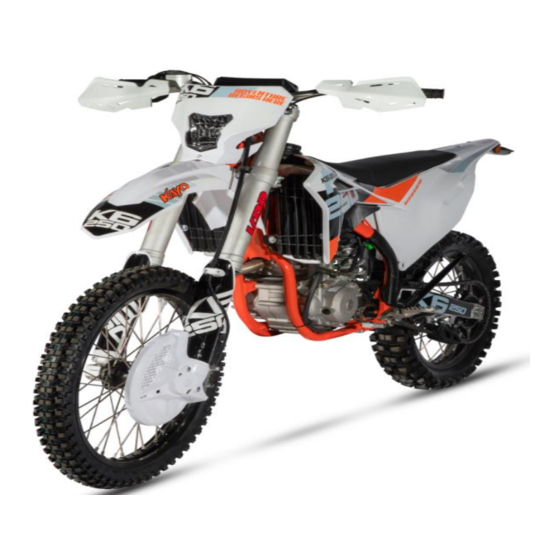

- Page 1 KAYO MOTO K6EFI Assembly Manual WWW.KAYOMOTO.COM...
- Page 2 ① Torque wrench ② No. 10-12 wrench ③ Needle nose pliers ④ No. 4 hexagon wrench ⑤ No. 5 hexagon wrench ⑥ 6mm hexagon socket ⑦ 21mm socket ⑧ No. 8 sleeve ⑨ Phillips screwdriver ⑩ No. 10 sleeve 1.The above picture shows the tools required for unpacking &...
- Page 3 Name Quantity Name Quantity A Accessory Box Handlebar foam & padding cover B Front fender Spark plug sleeve C Front wheel Coolant D Left and right hand guard Cable tie User’s manual E Front disc brake disc guard 6. Use tool ② ⑩ to remove the screw on the left 7.
- Page 4 10.Use ④ to assemble D and fix it on the 11. Use tool ⑧ to move the front brake upper handlebar with tool ⑤ . cylinder to the left of 6-7mm, then assemble D with tool ④ and fix it on the handlebar with tool ⑤ . 13.Put the vehicle on the stand for easy installation 12.
- Page 5 16. Use tool ① ⑥ to tighten the front shock 17. Install E to the front left shock absorber and use tool ⑤ to tighten the fixing screws. absorber screw (torque requirement 25-30N.m) 18. Use tool ⑩ to remove the fixing screws on 19.
- Page 6 21. Please read the User’s manual carefully before 20. Unscrew the fuel tank cover and water tank cover, add gasoline and C respectively, then riding to better understand the performance of the tighten the fuel tank cover and water tank cover vehicle.
