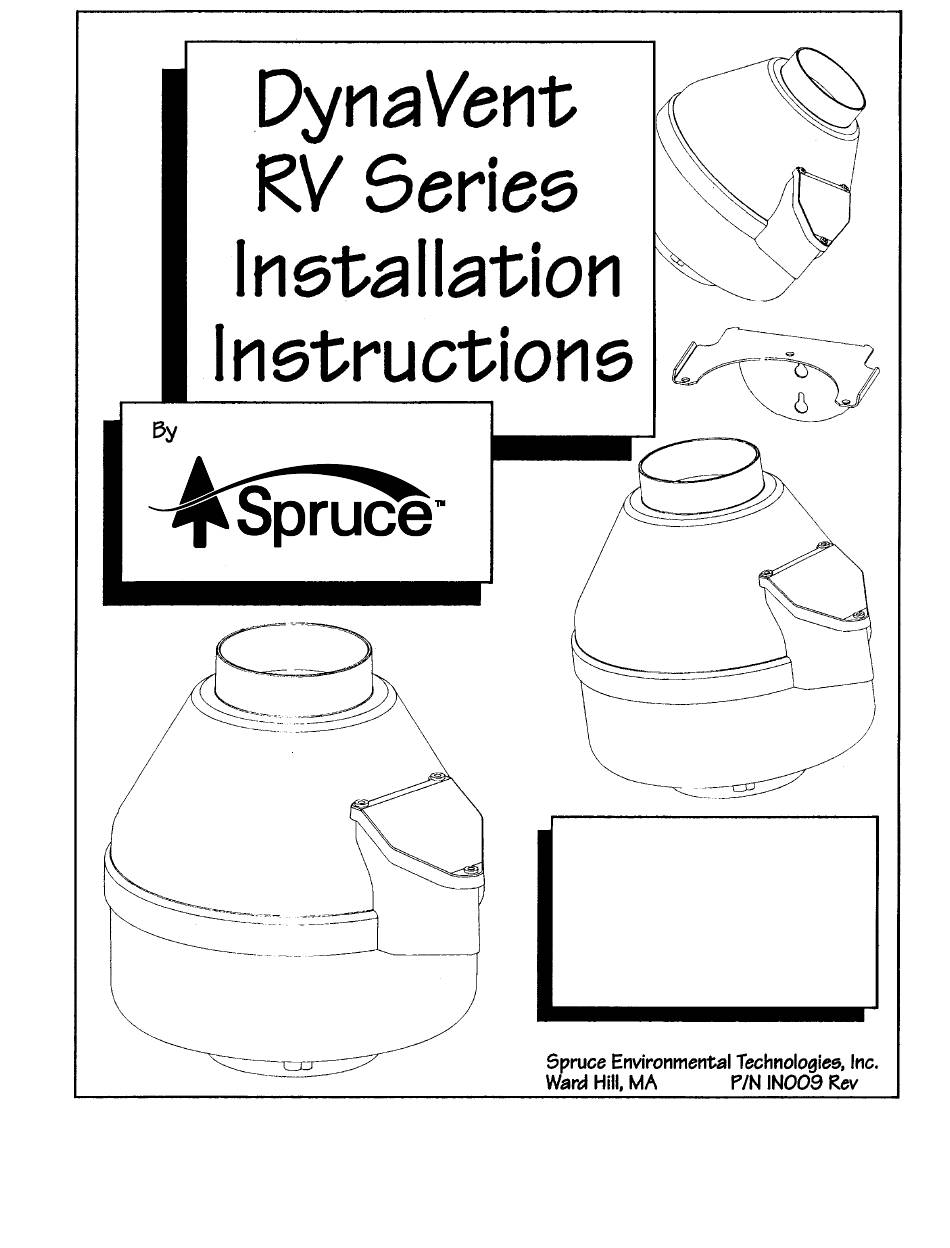

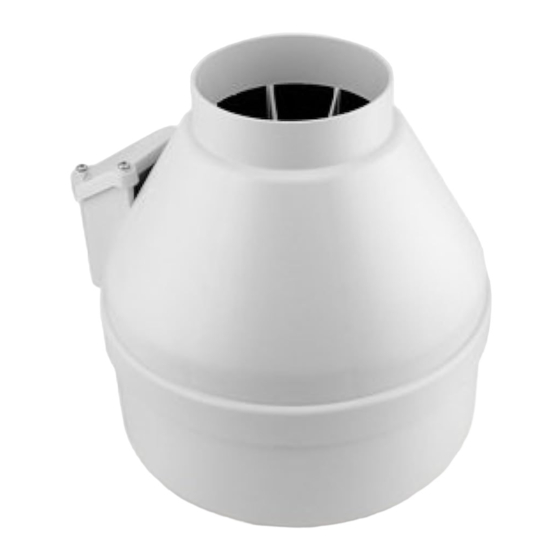

- Page 1 RV125 RV150 RV200...
- Page 2 RV Series Commercial/Residential Ventilation Fan Installation Instructions Please Read And Save These Instructions. DO NOT CONNECT POWER SUPPLY UNTIL FAN IS COMPLETELY INSTALLED. MAKE SURE ELECTRICAL SERVICE TO FAN IS LOCKED IN "OFF" POSITION. DISCONNECT POWER BEFORE SERVICING FAN. 1. WARNING! Do not use fan in hazardous environments where fan electrical system could provide ignition to combustible of flammable materials.
- Page 3 INSTALLATION INSTRUCTIONS IN009 Rev G RV125C p/n 23014-2, 28042-1 RV150C p/n 23013-2, 28041-1 RV200C p/n 23016-2, 28049-1 1.0 Mounting The RV Series fan may be mounted at and angle without affecting performance although the vertical mounting position shown in Fig. 1 is highly recommended. If the vertical mounting position is not possible, care should be taken to avoid creating a low spot in the fan/duct system where condensation might accumulate in the fan housing as shown in Fig.
- Page 4 6.0 Installation Step 1: Install (3) rubber grommets into Mounting Bracket (P/N 25007-1, included) to provide vibration isolation. Attach the fan to the mounting bracket with (3) #10 self-tapping screws, provided. Avoid over tightening screws. Step 2: Select location for fan mounting. A location 2/3 along the ducting, a minimum of 10 feet away from the inlet vent to the fan or the Y/T of a multi-intake system will provide the quietest operation.
- Page 5 RV SERIES PRODUCT SPECIFICATIONS The following chart shows fan performance for the RV Series Commercial/Residential Fan: Typical CFM Vs Static Suction " WC Max Static 0" .2" .5" .75" 1.0" 1.5" 2.0" 2.5" Pressure RV125 2.08”WC RV150 1.77”WC RV200 1.51”WC Power Consumption @ 120 VAC , 60Hz (1.4 Amp Maximum) RV125 48 - 68...
- Page 7 Spruce will replace any Fan which fails due to defects in materials or workmanship. The Fan may be returned (at owner’s cost) to either the point of purchase or the Spruce factory. The point of purchase may require proof of purchase or a bill of sales for replacement.
