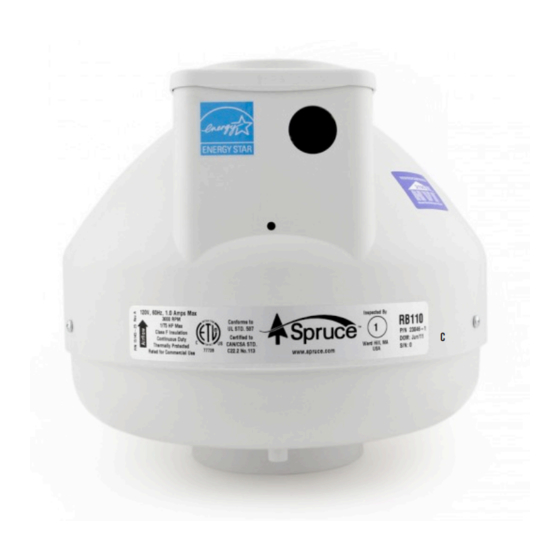

RB Series
Installation Instructions
IN018 Rev V 0120
3 Saber Way, Ward Hill, MA 01835 | spruce.com
1
Advertisement
Table of Contents
Related Manuals for Spruce RB Series
Summary of Contents for Spruce RB Series

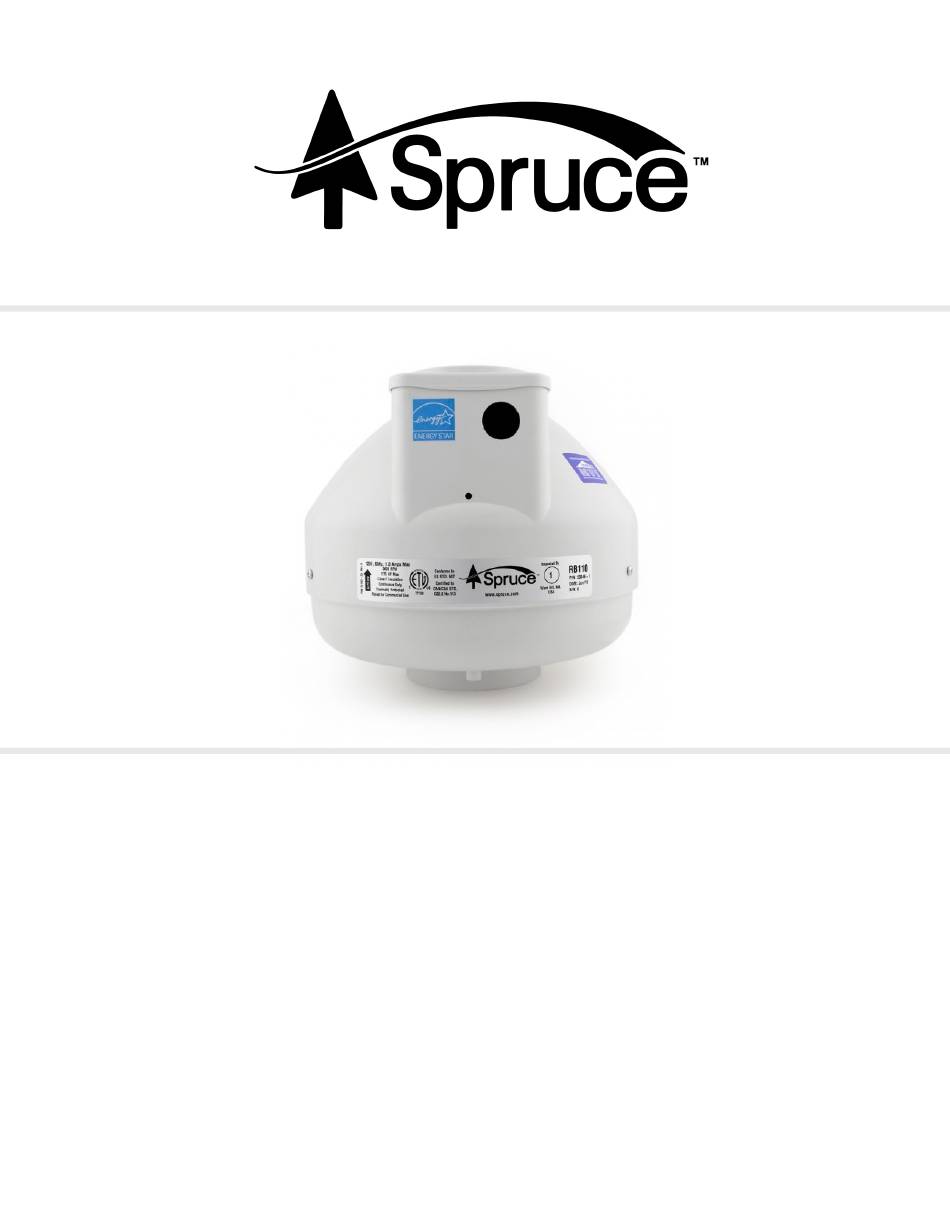

- Page 1 RB Series Installation Instructions IN018 Rev V 0120 3 Saber Way, Ward Hill, MA 01835 | spruce.com...
- Page 2 If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) protected branch circuit. RB SERIES FAN WIRING DIAGRAM IN018 Rev V 0120 3 Saber Way, Ward Hill, MA 01835 | spruce.com...
- Page 3 For bathroom and general ventilation applications, at least 8 feet of insulated flexible duct shall be installed between the exhaust or supply grille(s) and the fan. RB Series fans are not suitable for kitchen range hood remote ventilation applications. The ducting from this fan to the outside of the building has a strong effect on the airflow, noise and energy use of the fan.
- Page 4 Note that the fan is not intended for connection to rigid metal conduit. 6.0 APPLICATIONS Suitable for general ventilation, bathroom venting, fresh air supply, duct boosting, building pressurization, etc. Not suitable for kitchen range hood venting. IN018 Rev V 0120 3 Saber Way, Ward Hill, MA 01835 | spruce.com...
- Page 5 T&B #3300 may be used to avoid any filing grounding problem. Observe the proper wiring connections (See Section 5.0). Note that the fan is not intended for connection to rigid metal conduit. IN018 Rev V 0120 3 Saber Way, Ward Hill, MA 01835 | spruce.com...
- Page 6 RB SERIES PRODUCT SPECIFICATIONS The following chart shows fan performance for RB Series Commercial/Residential Fans: Typical CFM vs. Static Pressure "WC 0" .2" .5" .75" 1.0" 1.25" 1.5" 1.75" 2.0" RB110 RB190 RB275 RB300 RB350 RB400 Power Consumption @ 120 VAC, 60Hz (2.0 Amp Maximum)
- Page 7 IN018 Rev V 0120 3 Saber Way, Ward Hill, MA 01835 | spruce.com...
- Page 8 Warranty Spruce warrants that the RB Series Fan (the “Fan”) will be free from defects in materials and workmanship for a period of 60 months (5 years) from the date of purchase or 66 months from the date of manufacture, whichever is sooner (the “Warranty Term”).
