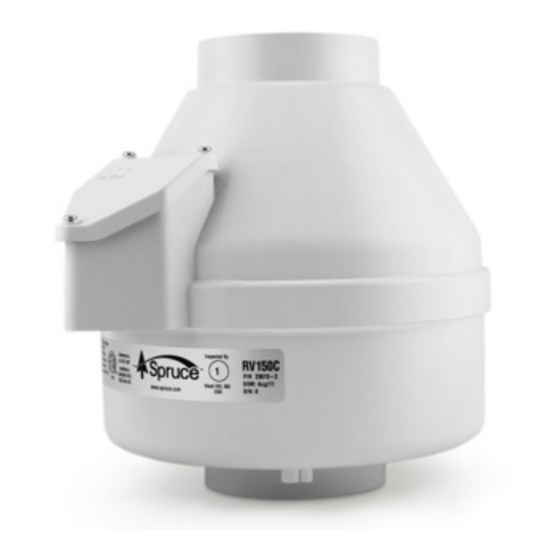

Inline Fans for a
Healthier Environment
RV Series
Installation Instructions
Spruce Environmental Technologies, Inc.
3 Saber Way
Ward Hill, MA 01835
www.spruce.com
P/N IN009-REV M
4/15
Advertisement
Table of Contents
Related Manuals for Spruce RV Series
Summary of Contents for Spruce RV Series
- Page 1 Inline Fans for a Healthier Environment RV Series Installation Instructions Spruce Environmental Technologies, Inc. 3 Saber Way Ward Hill, MA 01835 www.spruce.com P/N IN009-REV M 4/15...
- Page 2 RV Series Commercial/Residential Ventilation Fan Installation Instructions Please Read And Save These Instructions. DO NOT CONNECT POWER SUPPLY UNTIL FAN IS COMPLETELY INSTALLED. MAKE SURE ELECTRICAL SERVICE TO FAN IS LOCKED IN "OFF" POSITION. DISCONNECT POWER BEFORE SERVICING FAN. WARNING! For General Ventilating Use Only. Do Not Use to Exhaust Hazardous, Corrosive or Explosive Materials, Gases or Vapors.
- Page 3 P/N 23016-1, P/N 28049 1.0 Mounting The RV Series fan may be mounted at an angle without affecting performance, although the vertical mounting position shown in Fig. 1 is highly recommended. If the vertical mounting position is not possible, care should be taken to avoid creating a low spot in the fan/duct system where condensation might accumulate in the fan housing as shown in Fig.
- Page 4 Step 6: Make electrical connection to fan. Observe the proper wiring connections (see Section 4.0): RV Series Wire AC Connection Black AC Hot White AC Common Green Ground...
- Page 5 RV SERIES PRODUCT SPECIFICATIONS The following chart shows fan performance for the RV Series Commercial/Residential Fan: Typical CFM Vs Static Suction " WC Max Static 0" .2" .5" .75" 1.0" 1.5" 2.0" 2.5" Pressure RV100 1.06”WC RV125 2.08”WC RV150 1.77”WC RV200 1.51”WC...
- Page 6 Page 6 of 7 IN009 Rev M...
- Page 7 Spruce will replace any Fan which fails due to defects in materials or workmanship. The Fan may be returned (at owner’s cost) to either the point of purchase or the Spruce factory. The point of purchase may require proof of purchase or a bill of sale for replacement.
