Summary of Contents for Spruce RB110

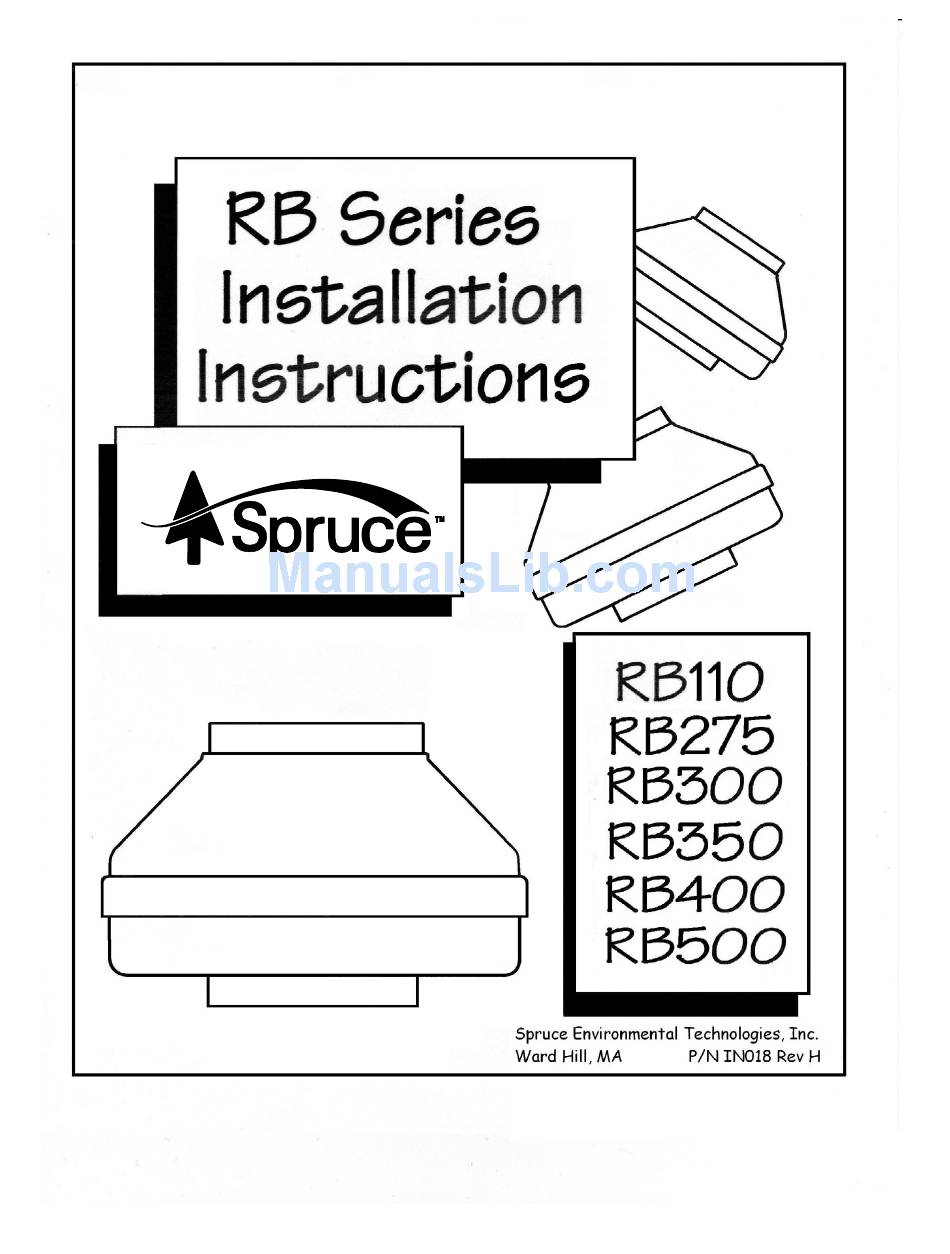

- Page 1 Page 1 of 7 IN018 Rev H...
- Page 2 Please Read And Save These Instructions. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Page 3 P/N 23053-1, 28207 1.0 Mounting The Spruce RB Series fans may be mounted at any angle without affecting performance although the vertical mounting position shown in Fig. 1 is highly recommended. If the vertical mounting position is not possible, care should be taken to avoid creating a low spot in the fan/duct system where condensation might accumulate in the fan housing as shown in Fig.
- Page 4 6.0 Installation Step 1: Install Mounting Bracket as shown (RB110 & RB 275 Only, separate instructions for RB400 & RB500 are included with Mounting Bracket Kit). Insert Grommets into slots in mounting bracket. Orientate the Electrical Box relative to Mounting Bracket as required. Attach the fan to the mounting bracket with (3) #10 self-tapping screws, provided.
- Page 5 The following chart shows fan performance for RB Series Commercial/Residential Fans: Typical CFM Vs Static Pressure “WC 0” .2” .5” .75” 1.0” 1.25” 1.5” 1.75” 2.0” RB110 RB275 RB300 RB350* RB400 RB500 Power Consumption @ 120 VAC , 60Hz (2.0 Amp Maximum) RB110 14 - 19 watts RB275...
- Page 6 Page 6 of 7 IN018 Rev H...
