ERG O
Operating Instructions
E RG O 6 0, E RG O10 0,
E RG O14 0, A R 20 0
V L - 5
EN
DRN: 21060-1802
Original user manual
2023 05 25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERGO60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Varimixer ERGO60

Summary of Contents for Varimixer ERGO60

  • Page 1 ERG O Operating Instructions E RG O 6 0, E RG O10 0, E RG O14 0, A R 20 0 V L - 5 Varimixer A/S P: +45 4344 2288 DRN: 21060-1802 Elementfabrikken 9 E: info@varimixer.com Original user manual DK-2605 Brøndby...

  • Page 2: Table Of Contents

    How to execute a recipe ..............................9 Menu overview ................................10 Error codes machine ..............................15 Error codes Frequency inverter ............................16 Varimixer Recipe Manager (VRM) ..........................18 Adjustment of bowl centering ............................20 Replacement of lift actuator ............................20 Replacement of lift actuator contacts ...........................20 Replacement of drive belt .............................22 List of mechanical errors and solutions ........................22...

  • Page 3: Safety

    The machine is placed directly on the floor. THE MACHINE MUST BE BOLTED TO THE FLOOR The mixer may only be used as specified in this manual. Load per leg not to exceed ERGO60 2500 N The mixer is designed for manufacture of pro- ERGO100...

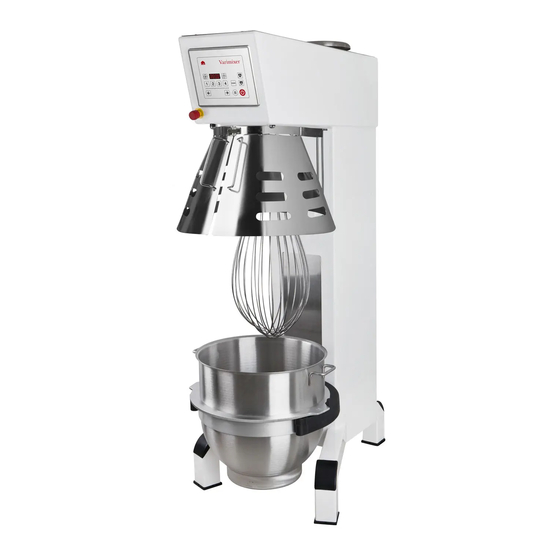

  • Page 4: Construction Of The Mixer

    Construction of the Mixer Power switch Safe disconnection of the machine during cleaning, maintenance and when not in use. USB service port For fast and secure software upgrades, recipe down- loads, workload data history. VL-5 Touch panel See page 8 for explanation of the touch panel. Emergency stop Lift buttons Push both left / right side buttons at the same time.

  • Page 5: Operating The Mixer

    Operating the mixer Before starting the mixer: Mount the required tool in the bayonet shaft. Place the bowl in the bowl arms and close the safety guard. Display_ERGO_Rentegning_ai.indd 1 Display_ERGO_Rentegning_ai.indd 1 27/09/2021 09.02 27/09/2021 08.46 To lift the bowl, simultaneously activate the two lifting buttons, located on each side of the upper part of the machine, until the bowl has reached its upper position.

  • Page 6: Filling Chute

    NOTE. Bowl for ERGO60 and ERGO100 must be rotated correctly. If there is no signal for correct positioning, the bowl cannot be lifted and .

  • Page 7: The Maximum Capacity Of The Mixer

    The maximum capacity of the mixer Capacities per mix Tool AR = Absorption Ratio Egg whites (Liquid in % of solids) Whipped cream Calculation AR Buttercream frosting  Whip 1 kg of solids and 0.6 kg of liquid: Layer Cake Sponges AR = 0.6 x 100 = 60% Mayonnaise Mashed potatoes...

  • Page 8: Touch Panel

    Touch panel Press minute and second digits to preset time. Time is displayed in a large frame after Buttons for selecting favourite recipe. 5 seconds of operating Only visible when selecting a favourite recipe Shortcut to fixed speed settings Decrease time Increase time Menu Display_ERGO_Rentegning_ai.indd 1...

  • Page 9: How To Execute A Recipe

    How to execute a recipe START OF RECIPE START OF RECIPE WHEN A FAVOURITE BUTTON IS PROGRAMMED Press Press Recipe. Press for the desired favourite program. Press for the desired pre-programmed recipe. The selected recipe appears on the screen. Press to execute the recipe.

  • Page 10: Menu Overview

    Menu overview Operating screen Menu Recipe Operating log Settings Operating Alarms · Recipe · Recipe log · Language Instructions · Errors Machine · USB up/download · Machine log · Clock · Errors Frequency · Download operating · Default settings Inverter (FI). data to USB Default settings Recipe log...
  • Page 11 • Press to save changes • Press empty button to enter a new recipe • Press to return to overview • See page 18 instructions in the Varimixer Recipe Manager for detailed instructions to modify the recipe on the computer...
  • Page 12 Menu overview 3.2 USB DOWNLOAD/SAVE RECIPE 4.0 OPERATING LOG • Insert an empty USB flash drive (FAT32) into the USB port on • Press the Machine Log button to display the machine’s log the back of the machine to download or save recipes operating log •...
  • Page 13 Menu overview 4.2 MACHINE LOG 5.0 LANGUAGE • Press the desired flag for language selection Horizontal - • Press Default settings to access PIN code, setup, and mixer • Read operating data in the selected time interval basic settings. - Log data is read in intervals: - 0:00-23:59 shows data for the current day - Mon-Sun shows data for the current week - Month shows data for the current month...
  • Page 14 • QR code, link for access to the desired manual. - Operating errors that have prevented starting the machine are Alternatively, the manual is available at varimixer.com registered in the table with code description and time. • Error codes Frequency inverter: - Error codes reported by the frequency inverter are noted in the table with code description and time.

  • Page 15: Error Codes Machine

    Error codes machine Error description Action EE01 Start is pressed without the bowl being raised to working Raise the bowl to working height height EE02 Start is pressed without the safety guard fitted Mount and close the safety guards. Double press to reset alarm EE03 Bowl not detected...

  • Page 16: Error Codes Frequency Inverter

    Error codes Frequency inverter For detailed information see also manufacture manual NORDAC FLEX ”bu 0200 - en” HMI code Error description Cause Action E0010 Inverter overtemperature FI heatsink is too hot Check cooling fan/Reduce mixer load E0011 Internal FI overtemperature FI is internally too hot E0020 Overtemperature motor thermistor...
  • Page 17 This page intentionally left blank...

  • Page 18: Varimixer Recipe Manager (Vrm)

    1.2 Select on the machine’s control panel: 3. Enable Excel to work with macros 1.2.1 Menu Excel must be set to work with macros to enable the Varimixer 1.2.2 Recipe Recipe Manager. 1.2.3 USB (PIN code 2345) USB button on control panel lights up green) 1.
  • Page 19 Varimixer Recipe Manager (VRM) User interface Recipe No. Min/Sec 24 individual recipe programs can be selected Run time for the specific recipe line is entered in minutes and seconds Step No. Each recipe can contain up to 9 recipe lines...

  • Page 20: Adjustment Of Bowl Centering

    Adjustment of bowl centering is replaced, use Loctite 638 to lock the bracket • Power on the machine First find the present bowl centering: • Then follow the section “Fine adjustment actuator 1. Mount the beater and the bowl, then raise the bowl switches”...
  • Page 21 Fig. 3 Location of actuator switches Fig. 4 Adjustment of lifting switch ERGO60: 45 mm ERGO60, ERGO100: A = 38 mm 240 mm ERGO140, AR200: A = 28 mm 530 mm ERGO100: 70 mm 260 mm 640 mm ERGO140: 25 mm...

  • Page 22: Replacement Of Drive Belt

    To replace a belt Remove the belt by loosening the belt tensioner. Installing a new belt: Place the belt in the wheel groove Tighten the belt using the belt tightener Tighten the belt until the belt can be bent approxi- mately 9 mm (dL) at a pressure of approx.

  • Page 23: Lubrication Overview

    Lubrication overview Varimixer Part Location Lubricant Explanation Frequency Remove the back cover. Bowl arms shaft 30.000 start or 3 Lubricate the bowl arm years Lifting guide shaft Molykote SM713 G-1502 FM Only when repairing the Mixer head mixer head, carried out by...

  • Page 24: Cleaning Guide

    Cleaning guide for Varimixer ERGO60, ERGO100, ERGO140, AR200. A risk assessment must always be used for all cleaning processes involved in food production. Based on current legislation, Varimixer A/S has compiled the table below as an aid to devising customer-specific cleaning plans. The importance of cleaning in individual zones of the mixer is illustrated using colours.
  • Page 25 We recommend buying a mixer with IP class 54 if rinsing off using clean, drinking-quality water is required, from all angles and for frequent cleaning using water from a hose, shower head or steam. For more details on cleaning Varimixer A/S mixers, refer to our website: https://varimixer.com/...

  • Page 26: Contents Of The Declaration Of Conformity For Machinery

    (o partes de ellas) fueron aplicadas EN 454:2014; EN 60204-1:2018; EN ISO 12100-2011 …………………………………………………………………………………. EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021 …………………………………………………………………………. EN 1672-2 :2020 …………………………………………………………………………. DoC for Food Contact Materials, please go to www.varimixer.com/Special downloads (dealers only) or contact your supplier...
  • Page 27 (ali deli/klavzule teh standardov) EN 454:2014; EN 60204-1:2018; EN ISO 12100-2011 ………………………………………………………………………………… EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021 ………………………………………………………………………… EN 1672-2 :2020 ………………………………………………………………………… DoC for Food Contact Materials, please go to www.varimixer.com/Special downloads (dealers only) or contact your supplier...
  • Page 28 Varimixer A/S Elementfabrikken 9 DK-2605 Brøndby P: +45 4344 2288 E: info@varimixer.com www.varimixer.com...
