- Page 1 SATK22 & SATK32 HIU programmer guide...
- Page 2 SATKF2000 programmer user guide Index Page Topic Introduction Keys and symbols Selecting the operating mode Summer and winter operation Setting the clock and temperature Setting the clock Setting the room DAY temperature Setting the room NIGHT temperature Setting the room HEATING FLOW temperature Setting the room DOMESTIC HOT WATER temperature Enabling/disabling DOMESTIC HOT WATER pre-heat Manual operation...

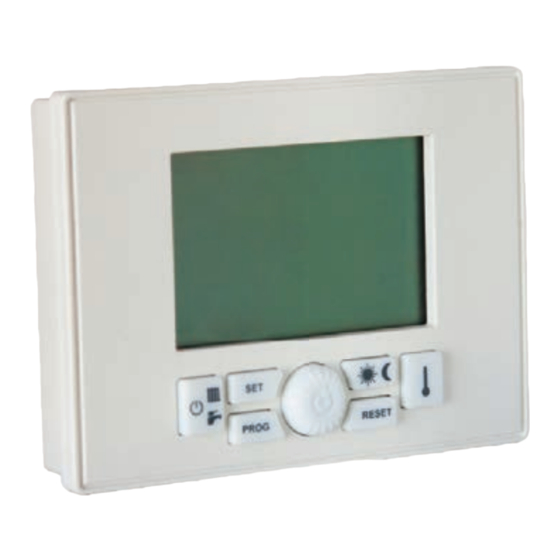

- Page 3 SATKF2000 programmer user guide Introduction This guide is intended to help the end user understand the features of the SATKF2000 programmer and to assist them in making changes to the operate of the programmer and heat interface unit (HIU) or confirm the operating parameters. The installer of the system will have commissioned and set the programmer to typical operating conditions, which can be altered to suit individual comfort requirements.
-
Page 4: Selecting The Operating Mode
SATKF2000 programmer user guide Selecting the Operating Mode Select the operating mode by Press Once - OFF: all request are disabled pressing key several times The oper ating modes you can set are: SELECTED ID ICONS STATUS SUMMER WINTER HEATING ONLY Summer and Winter Operation Press Twice - SUMMER: the heat Press 3 Times - WINTER: the heat... - Page 5 SATKF2000 programmer user guide Setting the Clock and Temperature To set the clock and the temperature of SELECTED ID ICONS STATUS this remote programmer and of the boiler press key several times DOMESTIC HOT WATER TEMPERATURE COMFORT MODE HEATING MAX RETURN* DHW MAX RETURN* KD OUTSIDE PROBE* SELECTED...
-
Page 6: Setting The Clock
SATKF2000 programmer user guide Setting the Clock 1. Press key : the hour will flash. 2. Turn button to set the required value. 3. Press button to confirm the input value. The hour will stop flashing and the minutes will start flashing. 4. - Page 7 SATKF2000 programmer user guide Setting the Room DAY temperature (if thermostat enabled) 1. Press key until icon starts flashing. 2. Turn button to set the value you want. Setting the Room NIGHT temperature (if thermostat enabled) 1. Press key until icon starts flashing.
- Page 8 SATKF2000 programmer user guide Setting the HEATING flow temperature If the remote programmer has been configured as modulating, this parameter determines the max. temperature value as computed by the modulation algorithms. 1. Press key until icon starts flashing. 2. Turn button to set the value you want.
-
Page 9: Manual Operation
SATKF2000 programmer user guide COMFORT FUNCTION - Enabling / disabling DOMESTIC HOT WATER pre-heating 1. Press key until icon starts flashing. 2. Turn button to enable (ON), disabled (OFF) or enable according to the weekly domestic hot water pre-heating program (PROG) function. -
Page 10: Automatic Operation
SATKF2000 programmer user guide Automatic operation 1. Press button until the heating clock corona will be displayed. 2. Icon will light up to show which is the current set temperature level. If the thermostatic function is disabled, pressing button until the heating clock corona is displayed enables the time programming of space heating set on the programmer (for any external... - Page 11 SATKF2000 programmer user guide Notes:...
- Page 12 SATKF2000 programmer user guide In this procedure document we have endeavoured to make the information as accurate as possible. We cannot accept any responsibility should it be found that in any respect the information is inaccurate or incomplete or becomes so as a result of further developments or otherwise.
