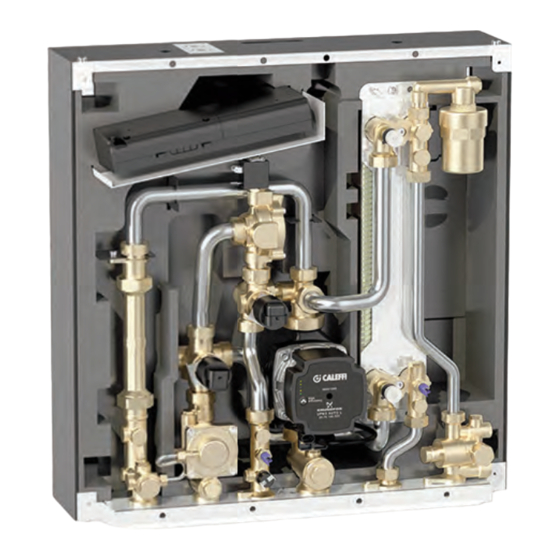

CALEFFI Altecnic SATK22 Series Installation, Operation & Maintenance Instructions Manual
Heat interface unit
Hide thumbs
Also See for Altecnic SATK22 Series:
- Instructions for installation, commissioning and maintenance (24 pages) ,
- Programmer's manual (12 pages)
Related Manuals for CALEFFI Altecnic SATK22 Series
Summary of Contents for CALEFFI Altecnic SATK22 Series
- Page 1 SATK22 heat interface unit Installation Operation & Maintenance Instructions Caleffi group...
-
Page 2: Table Of Contents
SATK22 SATK22 ontent Function Safety instructions Dimensions and connections Technical specification Components & schematic SATK2210 & SATK2220 Components & schematic SATK2230 & SATK2240 Installation Heat meter installation Electrical connections Remote user interface Commissioning Remote user interface - quick guide Heating functions DHW functions Primary flow rate limitations Circulator - curves and settings... -
Page 3: Safety Instructions
SATK22 Safety Instructions Key to Symbols In the case of particularly hard or impure water, there must be suitable provision for filtering and treating the water Primary circuit flow before it enters the device, in accordance with current legislation. Failure to do so may result in the HIU becoming damaged or working incorrectly. -
Page 4: Technical Specification
SATK22 Dimensions 60 60 All connections G¾B Connections Technical Specification Medium: Water Max. percentage of glycol Max. temperature: 90˚C Max. static working pressure: Primary: 10 bar Secondary: 10 bar Domestic hot water: 10 bar Primary circuit Nominal flow rate: 1.2 m Nominal pressure loss on primary circuit: 0.5 bar Max. -
Page 5: Components & Schematic Satk2210 & Satk2220
SATK22 Components - SATK2210 (LOW temperature) Components - SATK2210 & SATK2220 Item Component Frame Electronic regulator 2-way modulating valve - heating 2-way modulating valve - DHW 130 mm space for heat meter ¼”F pressure port Return temperature probe Connection for M10 x 1 heat meter return probe Primary drain cock Differential pressure control valve Mesh strainer + ¼”... -
Page 6: Components & Schematic Satk2230 & Satk2240
SATK22 Components - SATK2230 (HIGH temperature) Components - SATK2230 & SATK2240 Item Component Frame Electronic regulator 2-way modulating valve - heating 2-way modulating valve - DHW 130 mm space for heat meter ¼”F pressure port Return temperature probe Connection for M10 x 1 heat meter return probe Primary drain cock Differential pressure control valve Mesh strainer + ¼”... -
Page 7: Installation
SATK22 Installation The SATK22 HIU is designed for installation in a sheltered domestic environment (or similar), therefore it cannot be installed or used outdoors, i.e. in areas directly exposed to the weather. Outdoor installation may cause malfunctioning and hazards. If the appliance is enclosed inside or between cabinets, sufficient space must be provided for routine maintenance procedures. It is recommended to place electrical devices underneath the HIU, as they may become damaged in the event of leaks occurring at the hydraulic fittings. - Page 8 SATK22 Installation with mounting bracket Connections at the bottom Connections at the top Installation with mounting bracket and first fix bracket Ensure the wall is structurally suitable for mounting the HIU, follow this instruction below. • Using the mounting bracket as a template mark the position of the holes required to secure the HIU to the wall. Ensure the mounting bracket is horizontal.
-
Page 9: Heat Meter Installation
SATK22 Connections at the top NOTE: When installing with the connections at the bottom secure with safety screws as shown. Install the SATK22 as shown and using sealing washers connect the HIU to the valves on the first fix bracket. Hydraulic connections Based on the dimensions and connection diagram on page 3. -
Page 10: Electrical Connections
SATK22 Electrical Installation Continued Connecting to the electricity supply To extend the cable if necessary, use a flexible cable suitable for kitchen and heating appliances and for home, kitchen and office installations, also in humid environments subject to medium levels of mechanical stress (e.g. H05V2V2-F: Uo/U 300/500 V). -
Page 11: Commissioning
SATK22 Installation in the room Use the cable outlet provided for connecting the remote user interface to the electronic circuit board. RS-485 BUS EXP PORT OTS PREPAID The chrono-thermostat function has to be enabled through the remote control. Refer to the dedicated user manual for the procedure. Use of an external room thermostat An external room thermostat, if installed, must be with potential-free contact. -
Page 12: Remote User Interface Quick Guide
SATK22 Remote User Interface Quick Guide (set) Current time/date (day/night) Set point temperature Daytime/night-time setting k outside temperature compensation (temp) (mode) Temperature DHW ON/OFF display Heating ON/OFF (ambient set point + probes) (prog) (reset) Heating hourly Resettable error reset programming and “comfort”... - Page 13 SATK22 Primary limit/set return temperature Primary limit/set return Comfort function (ON/OFF or in Heating mode (**) temperature in DHW mode (**) according to weekly program) if the thermostat function of the remote user interface is enabled. (**) if these set points cannot be changed you must set parameter t07 to value 0 in the technical menu (see “access to technical menu”...
-
Page 14: Heating Functions
SATK22 Heating Function Heating flow temperature setting (SATK2210. and SATK2220.) To set the flow temperature press the <SET> key until the symbol in the red circle appears. Use the <R> knob to change the value. The flow temperature range is: 25–45˚C for SATK2210. - Page 15 SATK22 Heating Function OPTIONAL SETTING: modulating temperature regulation with compensated set point (technical parameter t01= 2) (SATK2210 & SATK2220) When the function is enabled, the flow temperature is modified (±10°C with respect to the set point for HIU in HIGH temperature, ±3°C if in LOW temperature) according to the temperature detected by the return probe in order to maintain this latter temperature value constant.
-
Page 16: Dhw Functions
SATK22 DHW Function The DHW cycle always takes priority over the heating cycle. DEFAULT SETTING: fixed DHW set point (parameter t06=0) When DHW cycle activation is requested, due to DHW tapping by the user (detected by the domestic water flow meter), the regulator modulates the valve opening in order to adjust the temperature detected by the domestic water probe to the selected set point value. - Page 17 SATK22 DHW Comfort Function - Pre-heat, DHW Re-circulation The comfort function can be, alternatively, preheating of the DHW plate heat exchanger or management of DHW recirculation. They are enabled by setting to ON or PROG the comfort function (see page 12). DEFAULT SETTING: DHW exchanger preheating function (parameter t02 = 0) During periods when the domestic water...
-
Page 18: Primary Flow Rate Limitations
SATK22 Primary Flow Rate Limitation Primary flow rate limitation in heating mode. 2.00 DEFAULT SETTING: no limitation (technical parameter t03 = 1.75 100) 1.50 During start-up of the heating cycle from cold, e.g. on change 1.25 over from night-time ambient set point to the daytime set 1.00 point, the HIU may demand a significantly higher primary flow 0.75... -
Page 19: Circulator - Curves And Settings
SATK22 Circulator - Curves and Settings PERFORMANCE The HIU is equipped with a Grundfos circulator model UPM3 AUTO-L 15-70. By default, the circulator setting is with the maximum proportional head characteristic. Pressing the front key briefly produces the sequence of LEDs 2 s. -
Page 20: Auxiliary Microswitch
SATK22 Auxiliary Microswitch The HIU is equipped with a contact, driven by a relay incorporated in the circuit board, the intervention logic of which can be programmed in accordance with requirements by setting technical parameter t05. Each event linked to operation of the HIU is linked to a numerical value, according to the following table: Events - Conditions Value... -
Page 21: Modbus
SATK22 Modbus The HIU offers a remote connectivity solution by means an RS-485 wired network and Mod-Bus communication protocol. On request, Altecnic will supply a map of the Mod-Bus registers and data transmission specifications so the product can be integrated in an existing BMS system. The RS-485 communication network should be preferably constructed in compliance with the prescriptions of standard RS-485. -
Page 22: Safety And Alarms
SATK22 Safety and Alarms Safety thermostat cut-out (SATK2210) Error code: 69 If the electronic circuit board detects a fault, the display shows the error code concerned and the symbol Heating probe fault (SATK2210 & SATK2220) Error code: 5 HIUs configured to support low temperature heating continuously monitor the safety thermostat controlling the flow temperature. - Page 23 SATK22 Electronic Circuit Board Optional connections The electronic circuit board has a front door (shown in the adjacent figure) that provides access to the connectors related to HIU optional functions. N.B. before working on the circuit board you must disconnect the electric supply to the HIU.
- Page 24 SATK22 Periodic Maintenance The following checks must be carried out at least once very 12 months, in accordance with the prescriptions of standard EN 806-5. Operations to be Performed Force an actuators reset by switching the HIU power supply OFF and then ON Visually check for the absence of leaks and/or anomalies Check for possible active errors shown on the user interface Test correct operation of the pump by closing the thermostat contact or forcing it to close...
-
Page 25: Maintenance
SATK22 Maintenance All maintenance procedures should be carried out by an authorised technician. Regular maintenance guarantees better efficiency and helps to save energy. Before carrying out any maintenance, repair or part replacement work, proceed as follows: • Switch off the electricity supply •... - Page 26 SATK22 Cleaning the HIU primary circuit strainer Replacing the actuator All heat interface units have a strainer on the inlet for water • Disconnect the valve actuator (see previous paragraph) from the centralised system. • Extract the obturator, unscrewing the locking nut (F) To clean these strainers, carry out the following maintenance •...
-
Page 27: Fault Finding
SATK22 Fault Finding Fault Indications Possible Cause of Fault Operations to be Performed primary circuit isolating valve closed open the isolating valve re-connect actuator modulating valve actuator disconnected from valve body modulating valve actuator faulty call qualified personnel to have it replaced DHW temperature probe cable inverted with heating probe restore correct connection blinking... - Page 28 SATK22 Fault Finding Fault Indications Possible Cause of Fault Operations to be Performed possible domestic water system shut-off valves closed open the valves no cold water in centralised domestic circuit call qualified personnel to have it serviced There is no hot DHW led off water flow HIU strainer completely clogged...
-
Page 29: Check List
SATK22 Commissioning Check List Item Checks to be Performed Completed Is the heat interface unit properly secured to the wall? Has the system flushing been carried out? Check strainers and clean them if necessary Is the heat meter (if present) connected? Is the heat meter (if present) connected to the building data logger (if required)? Is the DCW line fitted with a pressure reducing valve? Are the shut-off valves open? - Page 30 SATK22 Altecnic Ltd Mustang Drive, Stafford, Staffordshire ST16 1GW +44 (0)1785 218200 sales@altecnic.co.uk Registered in England No: 2095101 altecnic.co.uk IOM 106 23-02-18 E & O.E Caleffi group © Altecnic Limited. 2018 ALTECNIC ™...
