T9/T10 Thermal Imaging Camera
User manual
Copyright
© 2019 DALI TECHNOLOGY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T9 and is the answer not in the manual?

Questions and answers

Related Manuals for Dali T9

Summary of Contents for Dali T9

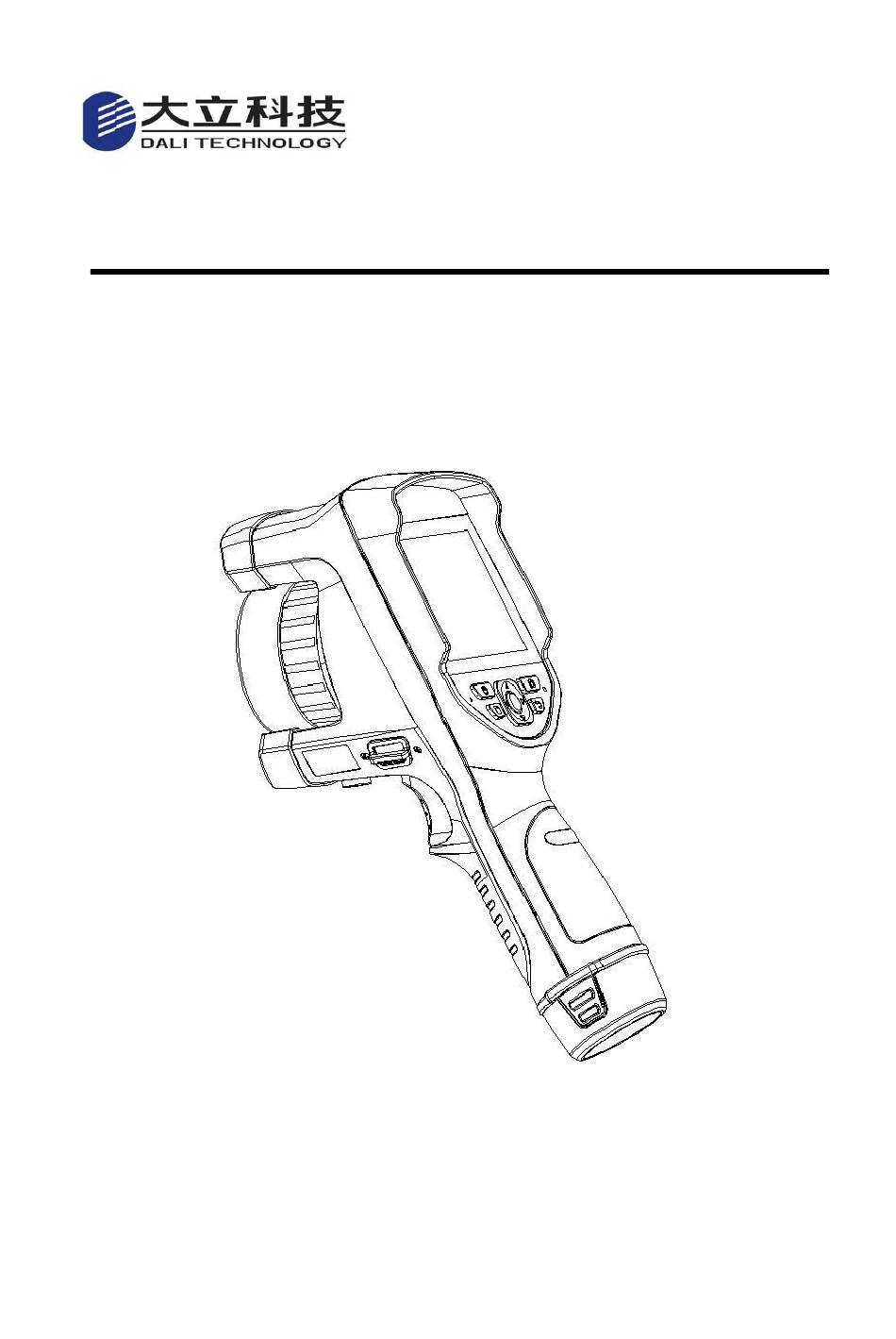

  • Page 1 T9/T10 Thermal Imaging Camera User manual Copyright © 2019 DALI TECHNOLOGY...

  • Page 2: Warning, Caution And Attention

    Warning, caution and attention Definition  Warning, represents dangerous situations or actions that may cause personal injury or death.  Caution, represents situations or actions that may cause damage to the thermal imager or permanent data loss.  Note, represents the prompt useful information to the user. Important information please read before using the instrument.

  • Page 3: Table Of Contents

    accurately.  Note-Every thermal imager has been temperature-calibrated before leaving the factory. It is recommended to perform temperature calibration every year.  Caution-Do not open the case or modify it without authorization. Maintenance can only be carried out by authorized personnel of our company. Table of cotents ! Warning, caution and attention ...............
  • Page 4 4.1.2 Drop-down menu ....................20 4.1.3 Main menu ....................... 21 4.2 Temperature measurement mode ................21 4.3 Color code switching ....................22 4.4 Image adjust ........................23 4.5 Image storage ....................... 23 4.6 Video recording ......................24 4.7 Image playback ......................25 4.8 Setting ..........................

  • Page 5: Introduction

    1 Introduction Thank you for choosing the T9/T10 handheld thermal imaging camera from Zhejiang Dali Technology Co., Ltd. Main function The highest temperature, lowest temperature and 4 movable points measurement 3 movable areas for temperature measurement 1 arbitrary line temperature measurement...
  • Page 6 LED fill light Laser rangefinder WiFi wireless network Bluetooth earphone GPS positioning and electronic compass TF card image storage USB-C data transfer HDMI video output Single or continuous shooting storage Real-time recording Timed recording Voice or text annotation Custom shortcuts Power saving mode multi-language Time/date setting...

  • Page 7: Standard Configuration

     Mechanical system: reduce downtime and prevent malfunction. Building Science  Roof: quickly and efficiently detect water penetration  Building structure: Infrared energy assessment survey for commercial buildings and residential buildings.。  Moisture detection: find the source of moisture and mold. ...

  • Page 8: Optional Configuration

     TF card  TF card reader  USB data cable  HDMI video cable 1.2 Optional configuration  0.5x wide-angle lens  2x medium focal lens  3x telephoto lens  Portable backpack  Non-national standard (European standard/British standard/Australian standard) charger...

  • Page 9: Introduction

    2 Introduction 2.1 Button function...
  • Page 10 [1] power switch Used for turning on and off, standby and wake-up of the thermal imager. Press this switch for more than three seconds to turn on/off the thermal imager; short press to enter standby/wake up (any other key can also wake up). ! Note: It is recommended to wait at least ten seconds after turning off the camera and turning it on again to ensure the safety.

  • Page 11: Interface

    The trigger button is the laser rangefinder switch. [7] Microphone Used to make voice notes when saving images. [8] Manual focus ring When the operator faces the LCD screen, rotates the focusing ring clockwise to adjust the focus toward the far focus direction; rotates the focusing ring counterclockwise to adjust the focus toward the near focus direction.

  • Page 12: Operation

    3 Operation 3.1 Battery installation and replacement 3.1.1 Battery loading and unloading The battery is in the instrument handle, and the end of the handle is the battery cover. Press the U-shaped elastic area on both sides of the battery cover (as shown by the red arrow) and pull it outward to remove the battery.

  • Page 13: Battery Replacement

    Battery replacement 3.1.2 When the battery symbol is empty and flashes, it indicates that the battery is exhausted and the battery should be replaced at this time. After the instrument displays the low battery prompt, it will automatically shut down. shut down prompt 3.2 Common sense of battery safe use ...

  • Page 14: Lens Loading And Unloading

    ! Do not disassemble, squeeze, or puncture the battery; ! Do not short-circuit the external contacts of the battery; ! Keep the battery dry and do not put it in fire or water; ! Do not place it in a place where children can reach; ! Please dispose of used batteries in accordance with local government regulations.

  • Page 15: Quick Start

    3.4 Quick start Get thermal image 3.4.1  After installing the battery, press and hold the power switch of the thermal imager (more than 3 seconds) until the power light turns green. After about 15 seconds, the instrument is initialized and enters the working state. ...
  • Page 16 Temperature measuring point attribute setting menu Click to select the temperature measurement point, hold down the point to drag directly within the screen. The temperature measuring point attribute setting menu has two items: ratio coefficient and distance setting. Temperature measurement line attribute setting menu Click to select the temperature measurement line, press and hold the spot on the line, you can drag the temperature measurement line as a whole;...

  • Page 17: Images Storage

    Temperature measurement area attribute setting menu Click to select the temperature measurement area, and press and hold the middle point of the area to drag the temperature measurement area as a whole; press and hold any of the four corners of the area to drag the corner of the temperature measurement area to change the size of the area.

  • Page 18: Image Export

    3.4.5 image export  A card reader can be used to operate the stored data in the TF card, including image export, delete, format and other operations.  A USB data cable can be used to connect the computer to operate the stored data in the TF card of the thermal imager, including image export, deletion, formatting and other operations.

  • Page 19: Operation

    [4] Recording mark: indicates that it is currently recording. [5] Continuous capture flag: indicates that the current state is continuous capture. [6] Company logo: Dali Technology Company logo. [7] Upper temperature limit: The upper limit temperature value of the color code.

  • Page 20: Drop-Down Menu

    [9] Lower limit temperature: The lower limit temperature value of the color code. [10] Menu logo: Click to pop up the main menu. [11] System time: Display the current system time. [12] Temperature measurement object: point the cross cursor of the temperature measurement object, in addition to the box, the straight line indicating the area, and the line temperature measurement object.

  • Page 21: Main Menu

    4.1.3 Main menu Main menu Main menu ： From left to right, the icons in the main menu are temperature measurement mode, color code, image adjustment, image playback, photo/video, and settings. 4.2 Temperature measurement mode This function is used to add or delete temperature measurement objects, including temperature measurement points, temperature measurement areas, temperature measurement lines, etc.

  • Page 22: Color Code Switching

    measurement point, temperature measurement area, temperature measurement line and other temperature measurement object icons on the touch screen, or use the left and right keys to select the corresponding temperature measurement object icon and then press the middle key to add temperature measurement points, Temperature measurement objects such as temperature measurement area and temperature measurement line.

  • Page 23: Image Adjust

    4.4 Image adjust This function is used for manual/automatic mode selection of image adjustment. Press the middle button or tap the touch screen to pop up the main menu. Click the auto/manual icon on the touch screen, or use the left and right keys to select and press the middle button, the auto and manual mode icons shown in the figure below pop...

  • Page 24: Video Recording

    image and press again to save the image. Photo If the image annotation mode is enabled in the storage settings, the corresponding annotation operation will be prompted before saving. If multiple continuous shooting is set in the storage settings, the continuous shooting logo will be displayed on the status bar when taking pictures.

  • Page 25: Image Playback

    Recording During video recording, the status bar at the upper part of the screen will display a recording logo (red dot and recording time), indicating that it is recording. 4.7 Image playback This function is used to browse and replay the saved images and video files. Press the middle button or tap the touch screen to pop up the main menu.

  • Page 26: Setting

    Picture library After opening the folder, click on the corresponding file on the touch screen to start playback, or switch files by pressing the up, down, left, and right buttons, and press the middle button to open the playback. Activate the icon to edit the file, click the check box on the file, and click the icon to delete the selected file.

  • Page 27: Temperature Measurement Parameter Setting

    temperature measurement parameter settings, temperature measurement function settings, image settings, storage settings, task mode settings, connection settings, system settings, etc. Press the middle button or tap the touch screen to pop up the main menu. Click the setting icon on the touch screen, or use the left and right keys to select and then press the middle key to pop up the setting menu interface, as shown in the figure below.

  • Page 28: Temperature Measurement Function Setting

    Temperature measurement parameter setting Temperature measurement gear setting: There are three gears that can be switched:-20~180℃，100~650℃，400~1200℃（optional）。 Ambient temperature setting: scroll up and down through the digital scroll wheel to select the ambient temperature. Humidity setting: scroll up and down through the digital scroll wheel to select the relative humidity of the environment.
  • Page 29 reference temperature setting, isothermal temperature setting, alarm parameter setting, and analysis setting. Temperature measurement function setting menu Reference temperature setting: click the icon on the right to turn it on or off. When it is turned on, you can select the temperature measurement target or set the value as the reference temperature.
  • Page 30 value of the lower limit of the isothermal zone and the upper limit of the isothermal zone can be selected through the digital scroll wheel. Isothermal temperature setting menu Alarm temperature setting Set the alarm type first. When the alarm type is off, other options cannot be set.

  • Page 31: Image Setting

    alarm linkage recording through the digital scroll wheel. Temperature measurement parameter setting menu Analysis settings: You can select the types of temperature measurement data required for the midline temperature measurement and regional temperature measurement of the temperature measurement object, including the highest temperature, the lowest temperature, the average temperature, and the maximum temperature difference.
  • Page 32 Image setting menu Automatic enhancement mode: Click the icon on the right to turn it on or off. Hot overlay: Click the icon on the right to turn it on or off. When it is turned on, a temperature value can be set by the threshold value, and only infrared images with a temperature higher than the threshold value are displayed during thermal superimposition.

  • Page 33: Storage Setting

    4.8.4 Storage setting In the storage setting menu, there are options such as image annotation mode, continuous shooting setting, video setting, TF card formatting, and storage directory setting. Storage setting menu Picture annotation: You can select no or audio, text, sketch and other annotation methods.

  • Page 34: System Setting

    Connection setting WIFI setting AP mode can be selected. Bluetooth settings Bluetooth can be turned on or off through the Bluetooth switch option. After turning it on, you can scan for devices, display a list of available devices, and select available devices to connect; after connecting, you can disconnect the current operation.

  • Page 35: Technical Parameter

    System Information: You can view information such as model number, device number, software version number, MAC address, etc. Factory mode setting: It is used inside the factory and requires a password to enter. 5 Technical parameter T9/T10 professional handheld infrared camera parameter Items Parameter Type...
  • Page 36 Spatial 1.12mrad 0.67mrad resolution Super pixel 768×576 1280×960 function Display Infrared, visible light, picture-in-picture, dual-band method fusion image (DSIE) Image Digital zoom 1~4x Visible light 500 million pixels camera Video output HDMI Anchor point Laser positioning points are displayed on the display image Memory...

  • Page 37: Rfq

    Handrail Yes, can be installed on both sides 1/4″-20-UNC tripod Memory card TF card connector slot Data Mini-USB Type C ，picture/video transmission interface Interface Video Micro-HDMI interface Power Mini-USB Type C connector Laser Laser rangefinder Fill light 2 LED Microphone Buzzer Real-time image transmission, can be operated through the mobile APP control menu, stored...

  • Page 38: Specific Emissivity Of Commonly Used Materials (For Reference Only)

    contact the maintenance department of our company. Causes and solutions Failure phenomenon  The battery is not installed or the battery is installed incorrectly. The thermal imager does not →Insert the battery or reinstall the battery. work  The battery is exhausted. →Replace the battery.

  • Page 39: Factory Setting Parameter Table

    Burnish brown 0.40 Brass Matt 0.22 Oxidation 0.61 Copper Severe oxidation 0.78 Oxidation 0.74 Iron Rust 0.65 Oxidized 0.64 Cast iron Not oxidized 0.21 Rough 0.94 Wrought iron Be polished 0.28 Nickel Oxidized 0.37 Stainless steel Oxidation 0.85 Steel 800℃ oxidation 0.79 General brick Surface...
  • Page 40 Table.2 Temperature measurement correction parameter table Parameter Value Ratio coefficient 0.96 Correction temperature 0° C Background temperature Turn off Table.3 Analysis setting parameter table Parameter Value Temperature alarm Turn off Alarm temperature 50.0° C Alarm color None Isothermal color Turn off Upper isothermal limit 51°...
