Page 1

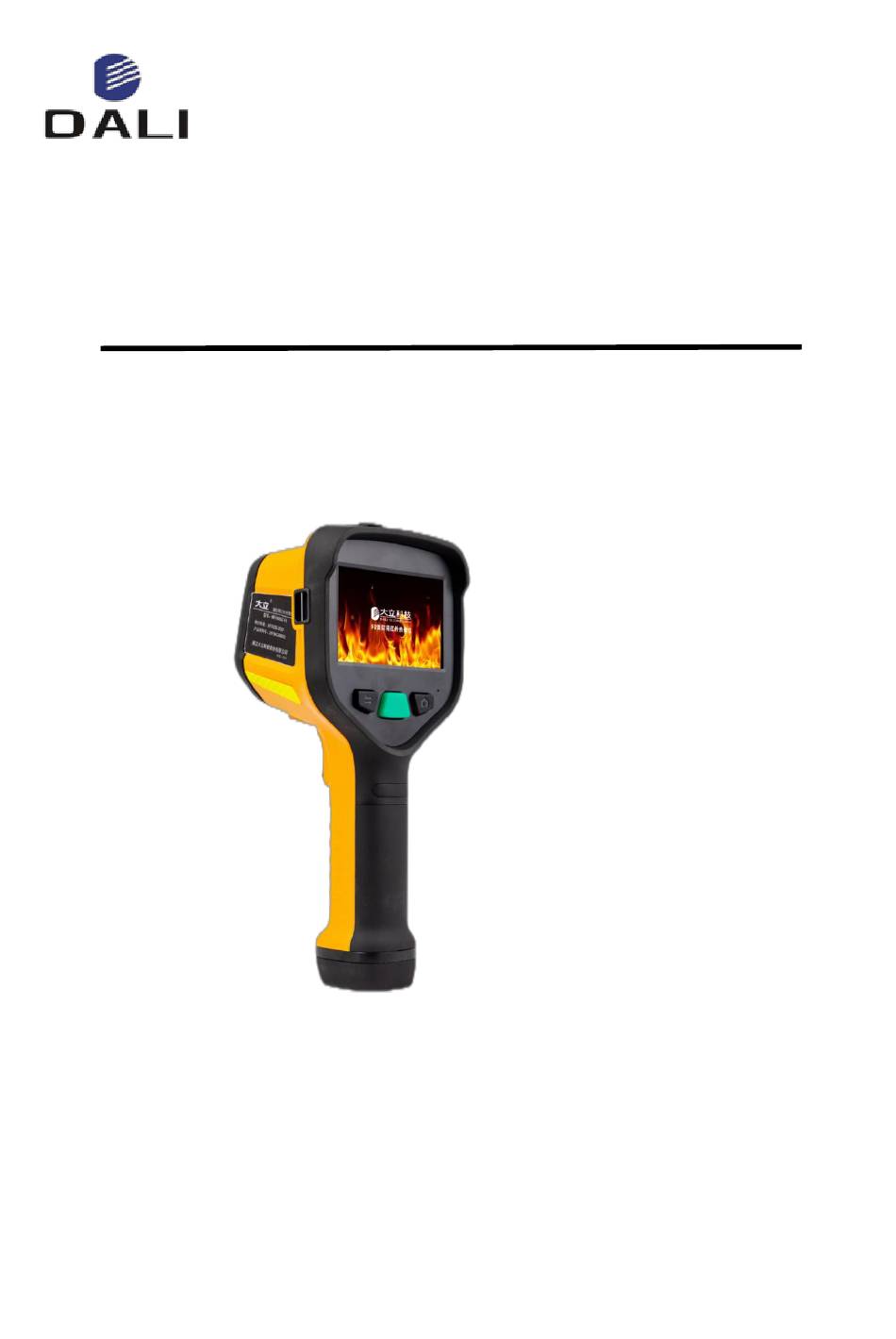

AI Thermal Imaging Camera for Firefighting HRYXBSZ-F8 User Manual Zhejiang Dali Technology Co Ltd...
Page 2
Warning In dark and smoky environments, firefighters can fully utilize the functions of the HRYXBSZ-F8 fire infrared thermal imaging camera (hereinafter referred to as F8) equipment, making it more reliable for judging harsh environments and more efficient in action. Users must carefully read the following information, otherwise it may lead to...
Page 3
Firefighting Thermal Camera Almost all electronic devices will stop working at a certain high temperature point. For the testing of F8, it can provide a thermal image for 30 minutes at a surface ambient temperature of 80 ℃; At a surface ambient temperature of 120 ℃, it can provide a thermal image for 10 minutes;...
Page 4
Firefighting Thermal Camera When the device is used in a low-temperature environment, the battery life of the device may be slightly shortened. In a dangerous environment, when the user observes a low voltage alarm on the device battery capacity indicator, please immediately evacuate to the exit, otherwise the device may stop working, resulting in serious consequences.
According to the requirements of standard XF/T 635-2023 "Thermal imaging cameras for firefighting" , the official model of this infrared camera named HRYXBSZ-F8, referred to as F8. (The following F8 are all referred to as HRYXBSZ-F8 AI intelligent firefighting infrared camera)
Firefighting Thermal Camera 1.1 Quick Start Please start immediately by following these steps: 1.Before starting the thermal imager for the first time, charge the battery for 3 hours or until the green battery status indicator light continues to light up. 2.
Firefighting Thermal Camera 1.2 Standard Configuration Thermal Infrared Imager F8 Safety Box Data package User Manual Rechargeable Battery(3) Charging Dock USB Cable Power Adapter(DC12V/2A) Shoulder Strap & Hand Strap Quality Certificate Packing List 1.3 Optional Configuration Rechargeable Battery Retractable Cord Wristbands Intrinsically Safe Battery...
Page 10
Firefighting Thermal Camera Appearance 1-2 (Rear View)
Page 11
Firefighting Thermal Camera Appearance Instruction Items Instruction Screen Display image information and operation menu Operate the thermal imager, see 2.2 button introduction for Button details ➢ Flashing red: Power off and charging status ➢ Indicator Flashing green: Charging completed ➢ light Red to green: startup process ➢...
Firefighting Thermal Camera Rubber Cover Interface cover Neck strap installation Mount neck strap for portability armrest Charge the device and transfer data interface Wristband installation Install wrist strap for easy carrying armrest Battery disassembly Turn switch for battery lock or unlock switch Laser ranging...
Firefighting Thermal Camera Buttons Instruction Icons Items Short press Long press Switch color palette (unable to switch in Power On visible light mode), Power on/off confirm key in menu mode Freeze the image, short press again to save the Start recording, short press to Photo image, and to right in save recording...
Firefighting Thermal Camera 3.1 Screen Description Items Description LOGO DALI LOGO Laser ranging The results measured by laser ranging value Hotspot Switchable routing mode and off Mode Compass Direction information Storage Displays percentage of remaining storage capacity capacity Battery Displays percentage of remaining battery power...
Firefighting Thermal Camera 4 Basic Operation 4.1 Battery Installation & Removal Battery Removal Steps: Pull out the switch ring on the battery and turn it counterclockwise about 45° to unlock the battery, then pull out the battery in the direction shown in the picture. 4.2 Battery Charging Battery charging steps: put the battery into the charging seat, connect the charger to charge.
Firefighting Thermal Camera 4.3 Battery Installation NOTE: The device should use standard configuration batteries, otherwise the mechanical or electrical performance of the device may be damaged due to incorrect battery size and voltage. Battery Installation Steps: Insert the battery in the direction as shown, then turn it clockwise about 45°...
Firefighting Thermal Camera charging, lock the interface cover and close the rubber cover. 4.5 Device data transfer Steps for data transfer: Connect the USB according to 4.4, connect the other end to the computer, the device should be in the power-on state, then data transfer can be carried out.
Firefighting Thermal Camera 4.7 Turning the camera on and off Press and hold the power button for more than 3 seconds to turn the camera on/off. 4.8 Selecting the color palette The camera has eight different color palettes, which can be switched by shortly pressing the power button Color Palette Introduction Palette Name...
Page 19
Firefighting Thermal Camera rescue from natural disaster in extreme weather. Specially designed and optimized for building fire protection. This mode has high contrast, multiple color modes, which can effectively detect the distribution of Building building heat, query high temperature points. At the same time, this mode can also detect the detachment of building exterior walls,...
Firefighting Thermal Camera mode covers a range from lower to higher temperatures, so that users can clearly identify various temperature areas. Designed specifically for nighttime search and rescue, as well as rainy and snowy weather. The mode uses green, blue, and purple colors, which are relatively easier Night vision to recognize at night.
Firefighting Thermal Camera Infrared imaging mode is a technology that generates images by detecting the Infrared infrared radiation (heat) emitted by an imaging mode object. This mode visualize temperature and perform non-contact temperature measurement. Visible light mode refers to the use of visible light cameras to capture and Visible light display images of objects within the...
Firefighting Thermal Camera 4.12 Laser ranging Attention: After turning on the laser light, do not shine it on the eyes to avoid eye damage from the laser. Short press the trigger button to turn on the laser indicator and laser ranging, and the laser ranging result will be displayed in the upper left corner of the screen.
Firefighting Thermal Camera 5.2 Main menu Main Menu Interface Functions...
Page 24
Firefighting Thermal Camera Icons Items Description Zoom Magnify images up to 2x, 4x, 8x Flashlight Use as emergency lighting and fill light With two modes, hotspot mode and routing mode. Can connect with cell phone APP to WIFI realize real-time picture remote transmission and control Can connect with Bluetooth headset to realize Bluetooth...
Firefighting Thermal Camera 6 Software 6.1 Mobile Software Scan the QR code below with your phone, select the mobile app, download the corresponding version of the app, and install it. Turn on WIFI on the thermal imaging device and select hotspot mode. Mobile wireless LAN, find F8 to connect, default password is 12345678 Enter the downloaded app (IR Vision) on your phone, click on the link to connect to the thermal imaging camera...
Firefighting Thermal Camera 7 Troubleshooting If you encounter problems while using the thermal imaging camera, use the following table to troubleshoot. If the problem is not resolved, disconnect the power and contact our maintenance department. Faults Solutions ➢ Batteries are not loaded or batteries are not installed accurately.
Firefighting Thermal Camera FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
