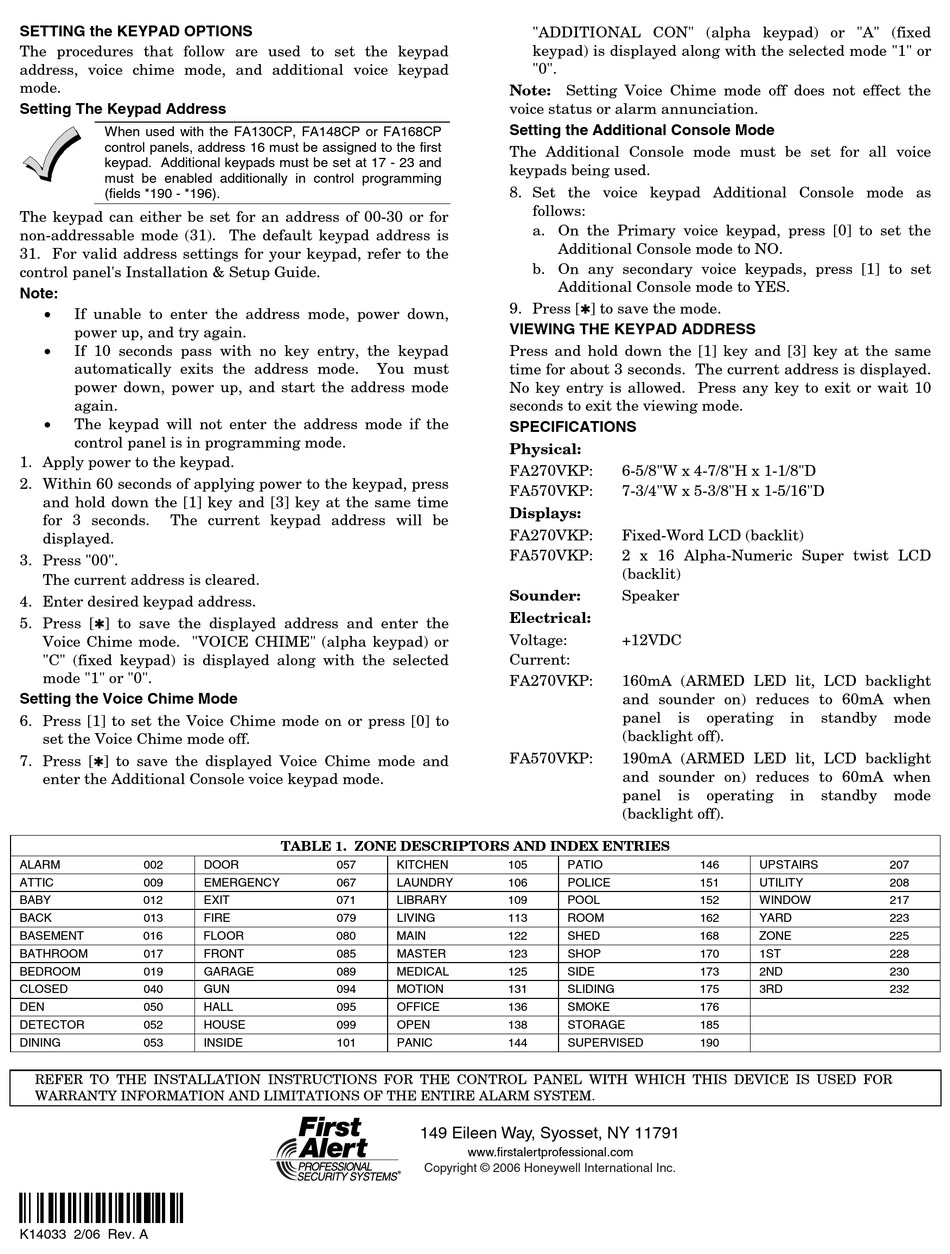

First Alert FA270VKP Installation And Setup Manual page 2

SETTING the KEYPAD OPTIONS
The procedures that follow are used to set the keypad
address, voice chime mode, and additional voice keypad
mode.
Setting The Keypad Address
When used with the FA130CP, FA148CP or FA168CP
control panels, address 16 must be assigned to the first
keypad. Additional keypads must be set at 17 - 23 and
must be enabled additionally in control programming
(fields *190 - *196).
The keypad can either be set for an address of 00-30 or for
non-addressable mode (31). The default keypad address is
31. For valid address settings for your keypad, refer to the
control panel's Installation & Setup Guide.
Note:
•
If unable to enter the address mode, power down,
power up, and try again.
•
If 10 seconds pass with no key entry, the keypad
automatically exits the address mode.
power down, power up, and start the address mode
again.
•
The keypad will not enter the address mode if the
control panel is in programming mode.
1. Apply power to the keypad.
2. Within 60 seconds of applying power to the keypad, press
and hold down the [1] key and [3] key at the same time
for 3 seconds. The current keypad address will be
displayed.
3. Press "00".
The current address is cleared.
4. Enter desired keypad address.
✱
5. Press [ ] to save the displayed address and enter the
Voice Chime mode. "VOICE CHIME" (alpha keypad) or
"C" (fixed keypad) is displayed along with the selected
mode "1" or "0".
Setting the Voice Chime Mode
6. Press [1] to set the Voice Chime mode on or press [0] to
set the Voice Chime mode off.
✱
7. Press [ ] to save the displayed Voice Chime mode and
enter the Additional Console voice keypad mode.
ALARM 002
ATTIC 009
BABY 012
BACK 013
BASEMENT 016
BATHROOM 017
BEDROOM 019
CLOSED 040
DEN 050
DETECTOR 052
DINING 053
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL PANEL WITH WHICH THIS DEVICE IS USED FOR
WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
ÊK14033†Š
K14033 2/06 Rev. A
You must
TABLE 1. ZONE DESCRIPTORS AND INDEX ENTRIES
DOOR 057
EMERGENCY 067
EXIT 071
FIRE 079
FLOOR 080
FRONT 085
GARAGE 089
GUN 094
HALL 095
HOUSE 099
INSIDE 101
"ADDITIONAL CON" (alpha keypad) or "A" (fixed
keypad) is displayed along with the selected mode "1" or
"0".
Note: Setting Voice Chime mode off does not effect the
voice status or alarm annunciation.
Setting the Additional Console Mode
The Additional Console mode must be set for all voice
keypads being used.
8. Set the voice keypad Additional Console mode as
follows:
a. On the Primary voice keypad, press [0] to set the
Additional Console mode to NO.
b. On any secondary voice keypads, press [1] to set
Additional Console mode to YES.
9. Press [
VIEWING THE KEYPAD ADDRESS
Press and hold down the [1] key and [3] key at the same
time for about 3 seconds. The current address is displayed.
No key entry is allowed. Press any key to exit or wait 10
seconds to exit the viewing mode.
SPECIFICATIONS
Physical:
FA270VKP:
FA570VKP:
Displays:
FA270VKP:
FA570VKP:
Sounder:
Electrical:
Voltage:
Current:
FA270VKP:
FA570VKP:
KITCHEN 105 PATIO
LAUNDRY 106 POLICE
LIBRARY 109 POOL
LIVING 113 ROOM
MAIN 122 SHED
MASTER 123 SHOP
MEDICAL 125 SIDE
MOTION 131 SLIDING
OFFICE 136 SMOKE
OPEN 138 STORAGE
PANIC 144 SUPERVISED
149 Eileen Way, Syosset, NY 11791
www.firstalertprofessional.com
Copyright © 2006 Honeywell International Inc.
✱
] to save the mode.
