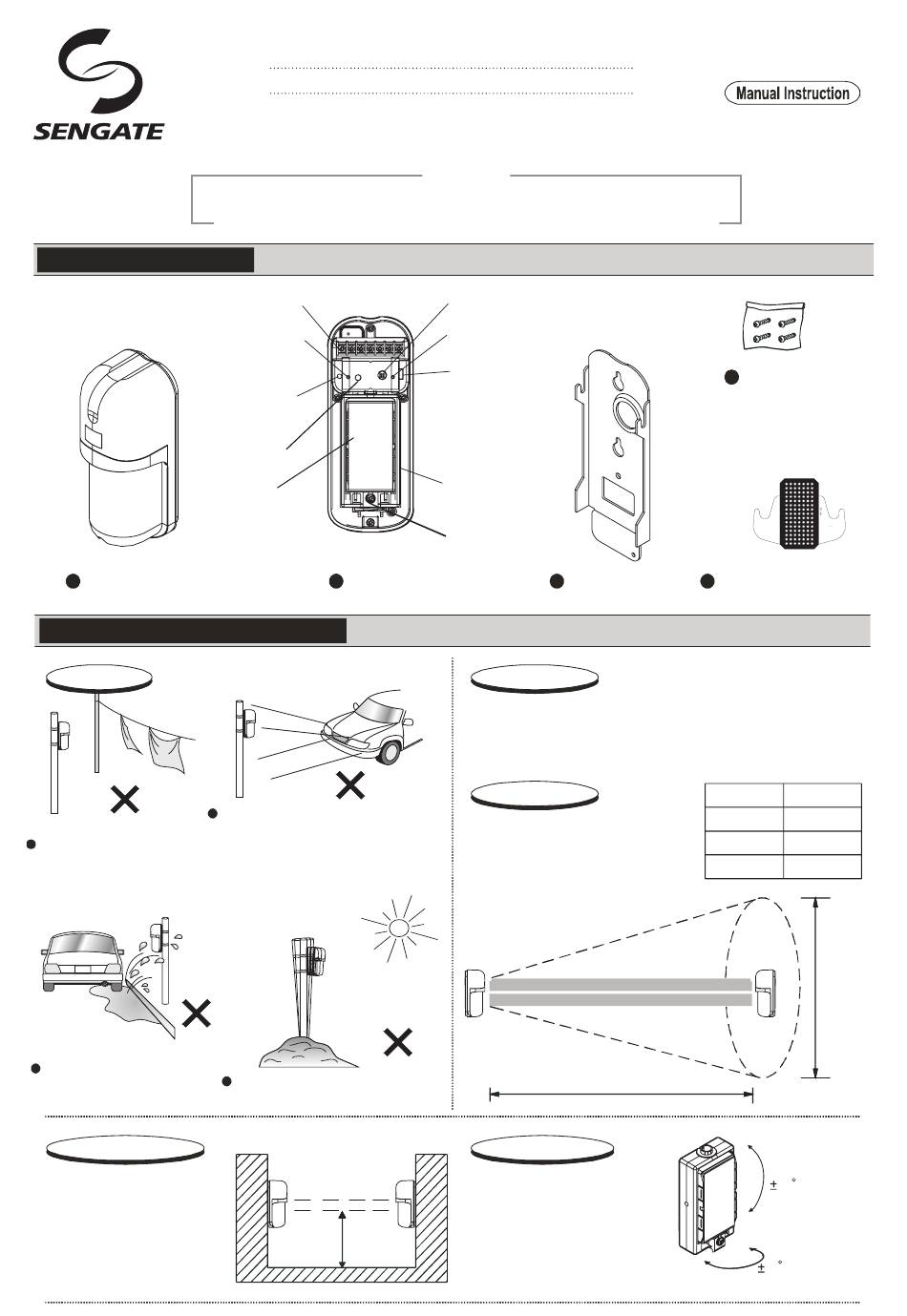

Sengate 2PH-15A Manual Instruction

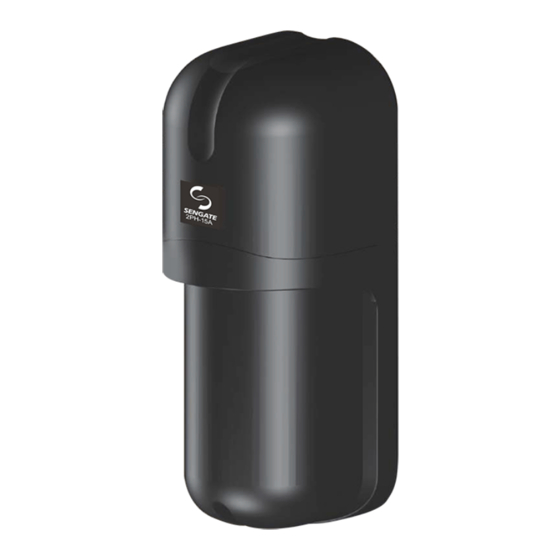

15M TWIN PHOTOELECTRIC BEAM SENSOR
1.PARTS DESCRIPTION
( Transmitter Only )
Cover
2.CAUTIONS ON INSTALLATION
Wrong place
Remove all obstructions ( trees,
clothes lines, etc.) between
Transmitter and Receiver.
Do not install the unit on places
where it may be splashed by
dirty water or direct sea spray.
Installation Height
To detect the intruder efficiently,
the sensors should be installed
within 32"-40" (80-100 cm)
height.
2PH- 15A Outdoor 45ft. (15m) / Indoor 90ft. (30m)
Please read this instruction Manual carefully for correct and effective use. If you do not
understand these instructions, contact your supplier for further information.
This sensor is designed to detect intrusion and to activate an alarm. It only provides an alarm
sign output, and is not an independent burglar-preventing device. If it's used abnormally,
faulty installation, improper maintenance or Acts of God, it will cause damage.
Terminals
Monitor +
LED Indicator
Alarm LED
( Receiver )
Lens
Unit Base
Avoid strong light from the sun, headlights,
and direct shining on the Transmitter /
Receiver.
When strong light stays in optical axis for
a long time, it will hurt the product's life.
Do not install the unit on the unsteady
place.
(80~100cm)
32"~40"
NOTE
Response Time Adjustment
( Receiver Only )
Monitor -
Tamper Switch
Horizontal
Adjuster
Vertical
Adjuster
Mounting Plate
Detection Range
Please make the Transmitter and Receiver within the required range as
belows :
2PH _ 15A Outdoor 45ft. (15m) / Indoor 90ft. (30m)
Detection Width
The detection width can be calculated
with following formula :
Width A = 0.1 x Length (L)
Transmitter
Protection distance
Alignment Angle
The sensors can be adjusted with
± °
Horizontal 90 and Vertical 10
to fit big detection range.
Screws
ATTENUATION SHEET
After alignment, attach
sheet directly to optical
system of Receiver.
(Reduces reception to
25%) (Outdoor use)
Attenuation Sheet
L
15' (5m) 1.5' (0.5m)
30' (10m) 3.0' (1.0m)
45' (15m) 4.5' (1.5m)
Receiver
L
10
± °
90
If properly aligned,
attenuation LED
remains OFF. If
attenuation
LED lights, readjust
alignment until
LED remains
off.
A
A
