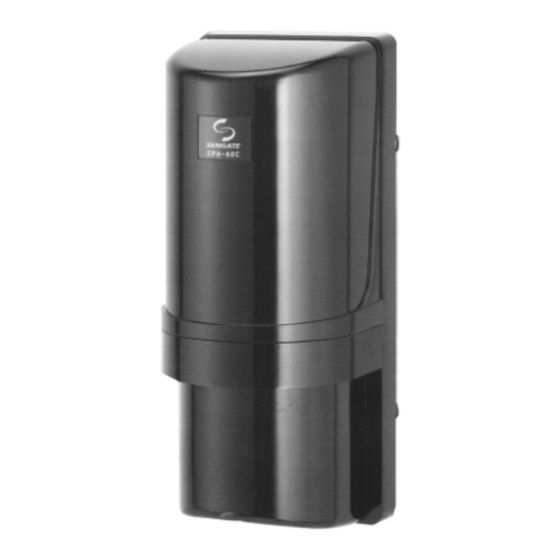

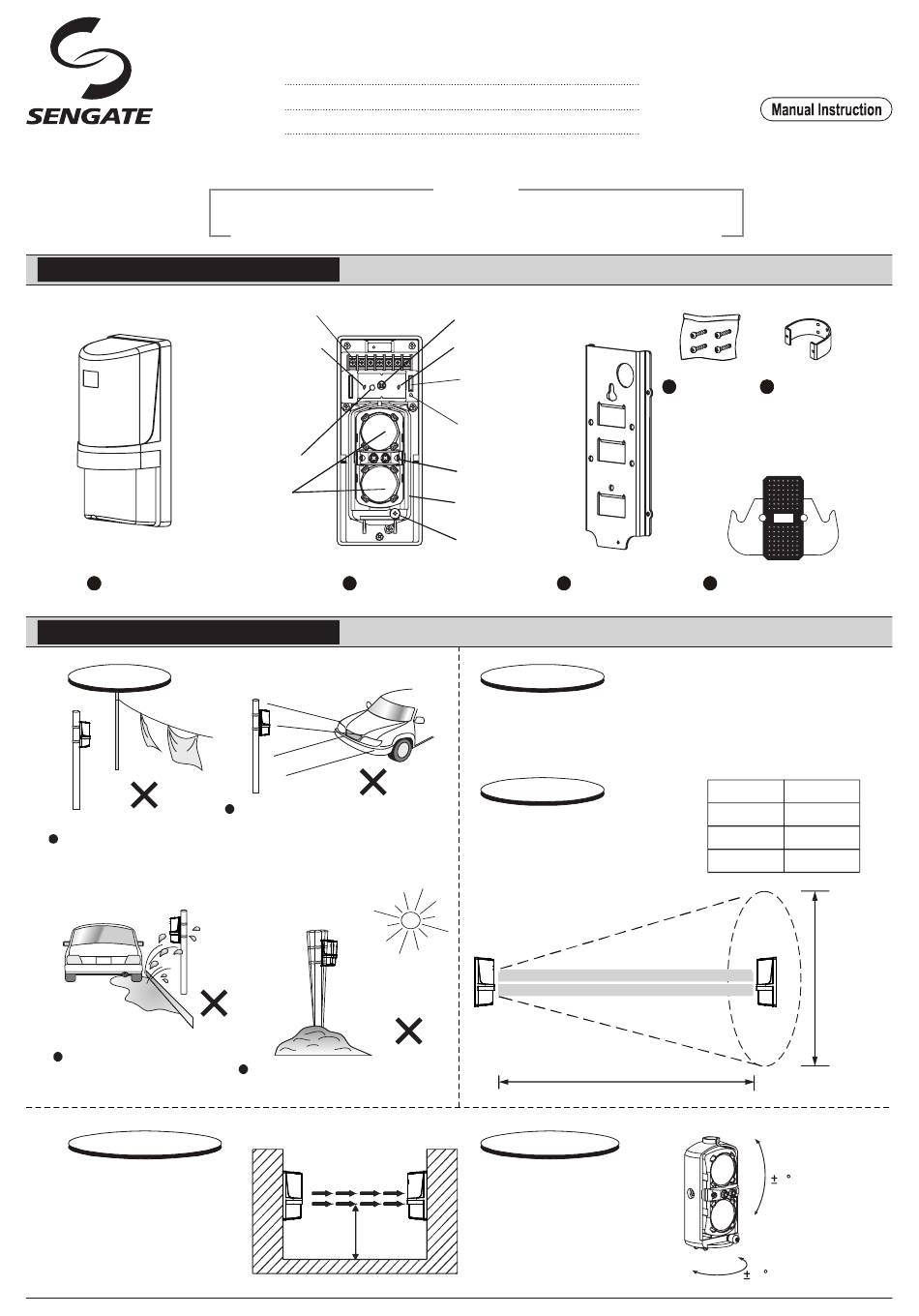

Sengate 2PH-30C Manual Instruction

30M/60M TWIN PHOTOELECTRIC BEAM SENSOR
1
PARTS DESCRIPTION ：
Cover
2
CAUTIONS ON INSTALLATION ：
Wrong place
Remove all obstructions ( trees,
clothes lines, etc.) between
Transmitter and Receiver.
Do not install the unit on places
where it may be splashed by
dirty water or direct sea spray.
Installation Height
To detect the intruder efficiently,
the sensors should be installed
within 32"-40" (80-100 cm)
height.
2PH- 30C Outdoor 90ft. (30m) / Indoor 180ft. (60m)
2PH- 60C Outdoor 180ft. (60m) / Indoor 360ft. (120m )
Please read this instruction Manual carefully for correct and effective use. If you do not
understand these instructions, contact your supplier for further information.
This sensor is designed to detect intrusion and to activate an alarm. It only provides an alarm
sign output, and is not an independent burglar-preventing device. If it's used abnormally,
faulty installation, improper maintenance or Acts of God, it will cause damage.
Terminals
Monitor +
( Receiver Only )
Alarm LED
Lens
Unit Base
Avoid strong light from the sun, headlights,
and direct shining on the Transmitter /
Receiver.
When strong light stays in optical axis for
a long time, it will hurt the product's life.
Do not install the unit on the unsteady
place.
(80~100cm)
32"~40"
NOTE
Response Time Adjustment
( Receiver Only )
Monitor -
( Receiver Only )
Tamper Switch
( Receiver Only )
LED Indicator
( Transmitter Only )
View Finder
Horizontal
Adjustment
Vertical
Adjustment Screw
Mounting Plate
Detection Range
Please make the Transmitter and Receiver within the required range as
belows :
2PH-30C Outdoor 90ft. (30m) / Indoor 180ft. (60m)
2PH-60C Outdoor 180ft. (60m) / Indoor 360ft. (120m )
Detection Width
The detection width can be calculated
with following formula :
Width A = 0.03 x Length (L)
Transmitter
Protection distance
Alignment Angle
The sensors can be adjusted with
Horizontal ±90° and Vertical ±5°
to fit big detection range.
1
_
Screws
U Shaped
Brackets
Attenuation Sheet
L
60' (20m) 1.8' (0.6m)
120' (40m) 3.6' (1.2m)
180' (60m) 5.4' (1.8m)
Receiver
L
5
90
A
A
